25
LUBRICATION AND MAINTENANCE
Always perform maintenance with
the machine parked on a hard level
surface; with the engine stopped
and the PTO disengaged; with the
park brake set; and with the key re-
moved from the ignition.
Always remove the grounded (-)
clamp from the battery when per-
forming maintenance on the engine,
clutch, or any other electrical sys-
tem. Battery is located under the
right fender.
Always wear safety glasses and ear
protection when performing any
maintenance function that could
cause injury to eyes or ears.
Read all safety information on pages 6 through
11.
LUBRICATION
(Refer to Fig. 9)
Do not let excess grease collect on or around
parts, particularly when operating in sandy
areas. See accompanying illustrations for
lubrication frequency points. Severe or un-
usual conditions may require more frequent
lubrication.
In addition to these lubrication points, lightly
oil all linkage pivot points.
Use SAE multipurpose type grease for all
locations shown. Be sure to clean fi tting thor-
oughly before using grease gun.

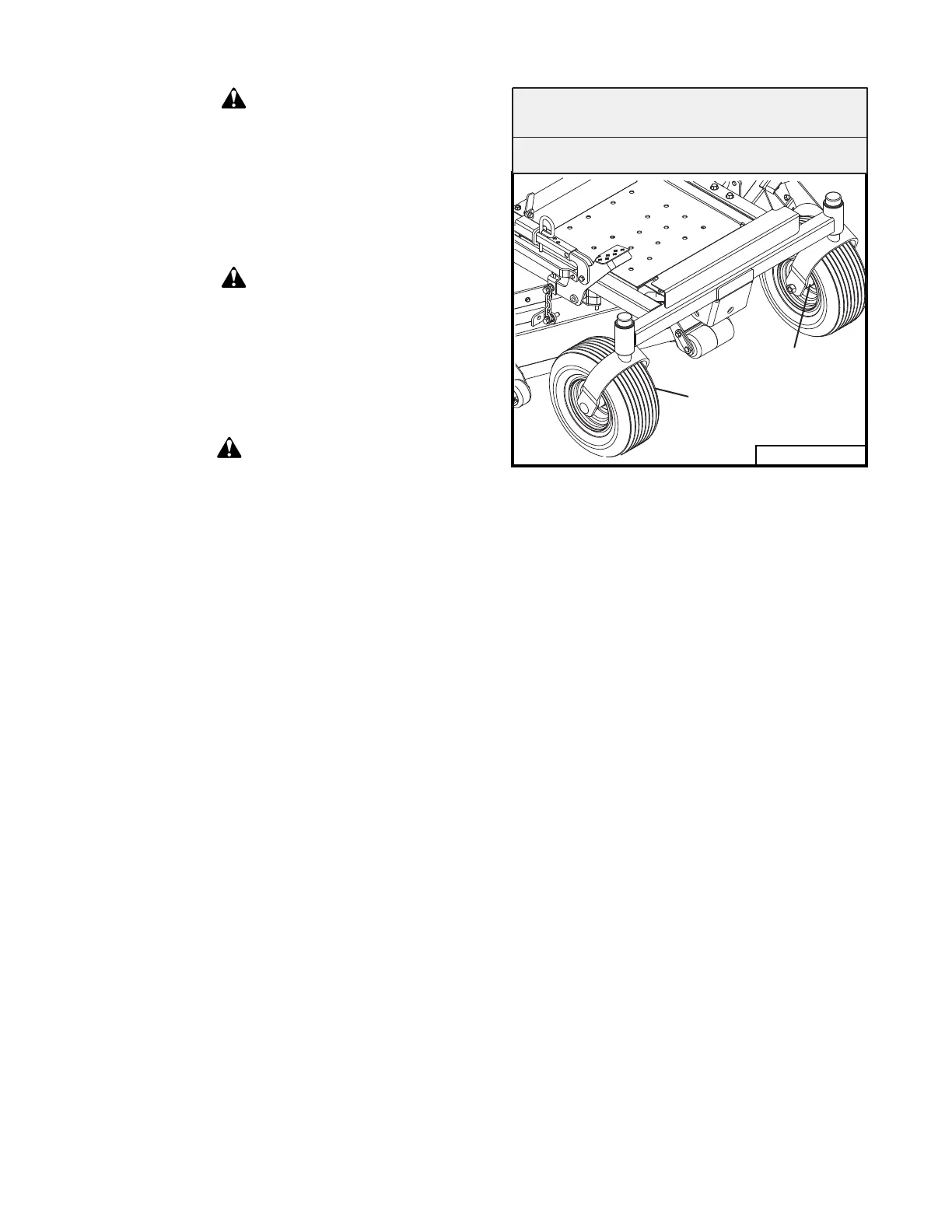

Fig. 9
Apply 1/2 to 1 Stroke
Every 8 Hours of Usage
Front Wheel Bearings (A) (two fittings)
CAPACITIES
Fuel Tank.........................6.5 U.S. gal. (24.6 liter)
Drive System....................3.0 U.S. qt. (2.88 liter)
(Each Transmission).........1.5 U.S. qt (1.42 liter)
TIRE AIR PRESSURE
Drive Tires 20 x 10 x 10...................8 psi (55kPa)
Drive Tires 20 x 12 x 10...................8 psi (55kPa)
(Refer to decal on wheel for correct tire air
pressure)
Front Tires 13 x 6.5 x 6..........12 psi (83 kPa)
DRIVE SYSTEM
Fluid Change..................................300 hours
Filter Change..................................300 hours
CRANKCASE OIL AND AIR FILTER
Refer to the “Engine Manual” for the timetable
for changing or service.
A
A
12070
CAUTION
CAUTION
CAUTION
