WARNING
levers are allowed to lean toward the center
when the mounting bolts are tightened, free
play in the mounting holes may allow the le-
vers to hit each other.
When completing a maintenance
function, make sure all shields are
in good condition and are installed
before placing unit back into use.
ENGINE TROUBLESHOOTING
Should you experience trouble in starting the
engine, use the following guide to locate pos-
sible causes.
Engine will not crank:
• Battery is discharged.
• Blown starter fuse.
• PTO switch in “ON”.
• Steering levers are not out in neutral.
• Steering lever switches are out of adjust-
ment (listen for the switch “click”).
• A loose wire or connection.
Engine cranks, but will not start:
• Fuel tank is empty.
• Restricted fuel line or fuel fi lter.
• A loose wire or connection.
If the above points do not locate the problem,
contact your authorized Grasshopper dealer
for repair.
PARK BRAKE ADJUSTMENT
The performance of this parking
brake depends on the tire used.
Tire size, tread pattern, and tire
pressure are important. Use only
Factory supplied tires and wheels.
Make sure tires are infl ated to the
proper pressure.
1. Stop engine, wait for all moving parts to
stop, and remove key.
2. Disengage the park brake.
3. Adjust the linkage rod attached to the left
brake until the clearance between the
brake arm and the tire tread measures .25
inch to .5 inch with the park brake disen-
gaged (see Fig. 15).
4. Repeat step 3 for the right side.
5. Engage and disengage park brake to
check for proper engagement and disen-
gagement. Readjust if necessary.
6. Be sure all cotter pins and jam nuts are
secured.
7. Make sure the brake light is on when the
park brake is set. If the brake lever does
not contact the safety switch, adjust the
switch in the mounting slots so it does.

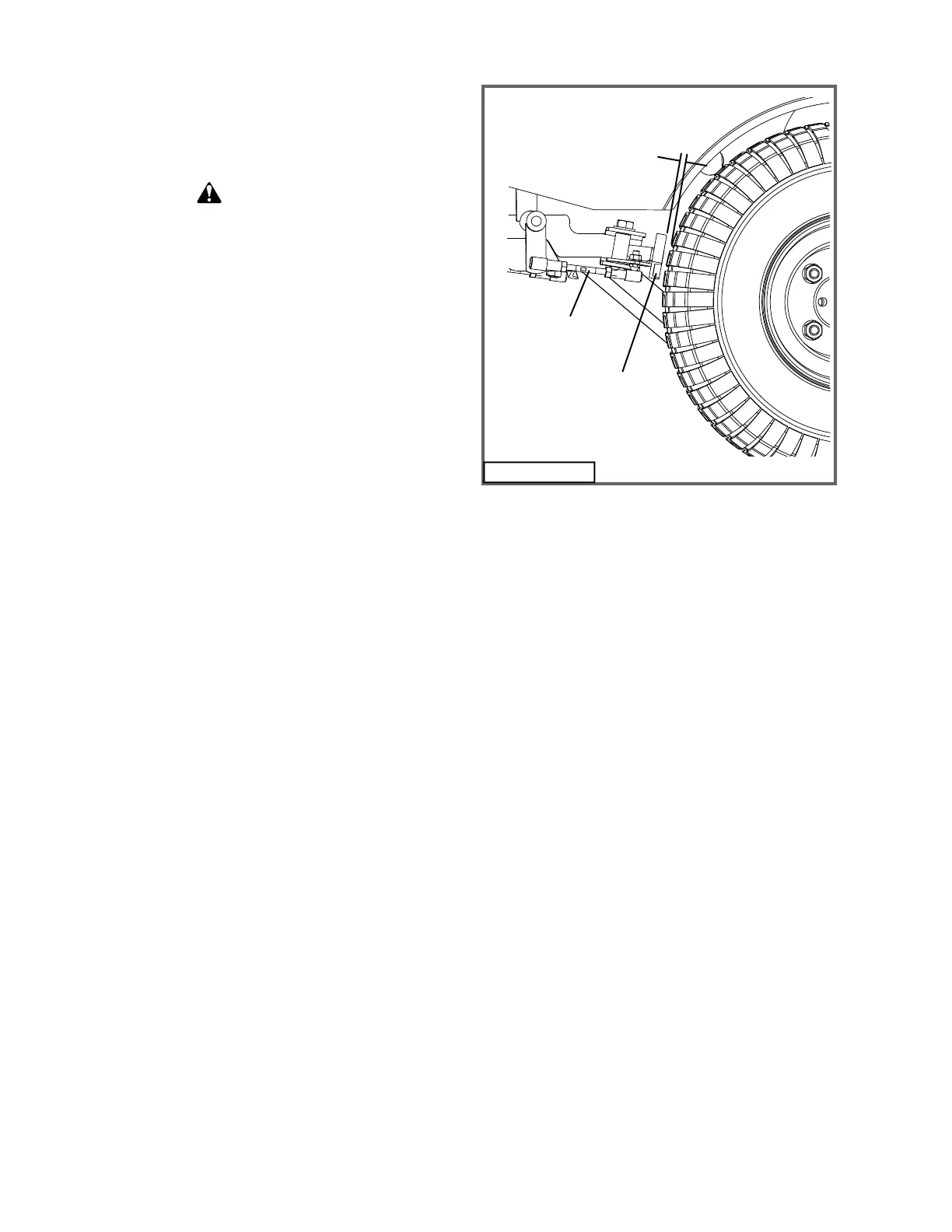

Fig. 15
IMPORTANT
.25" to .5"
LINKAGE
ROD
BRAKE
ARM
