DECK CLEANING
After each use remove grass buildup
from under the mower deck. Exces-
sive grass buildup will interfere with
the operation and performance of
the mower deck. Excessive grass
buildup may also cause component
failure.
1. Park machine on hard level surface, stop
engine and set the park brake. Remove
key from the ignition switch.
2. Position the mower deck in the transport
(all the way up) setting.
3. Lift the front of the machine, and support
the machine using jack stands or other
equivalent safety blocks. Do NOT rely
solely on mechanical or hydraulic jacks
or lifts for support. Always use adequate
wheel chocks on tires remaining on the
ground.
4. Use a long flat bar to clean under the
deck, to avoid positioning yourself under
the machine.
5. Clean out all grass and debris build-up
from the underside of the deck, around
blade spindles and the deck discharge
chute.

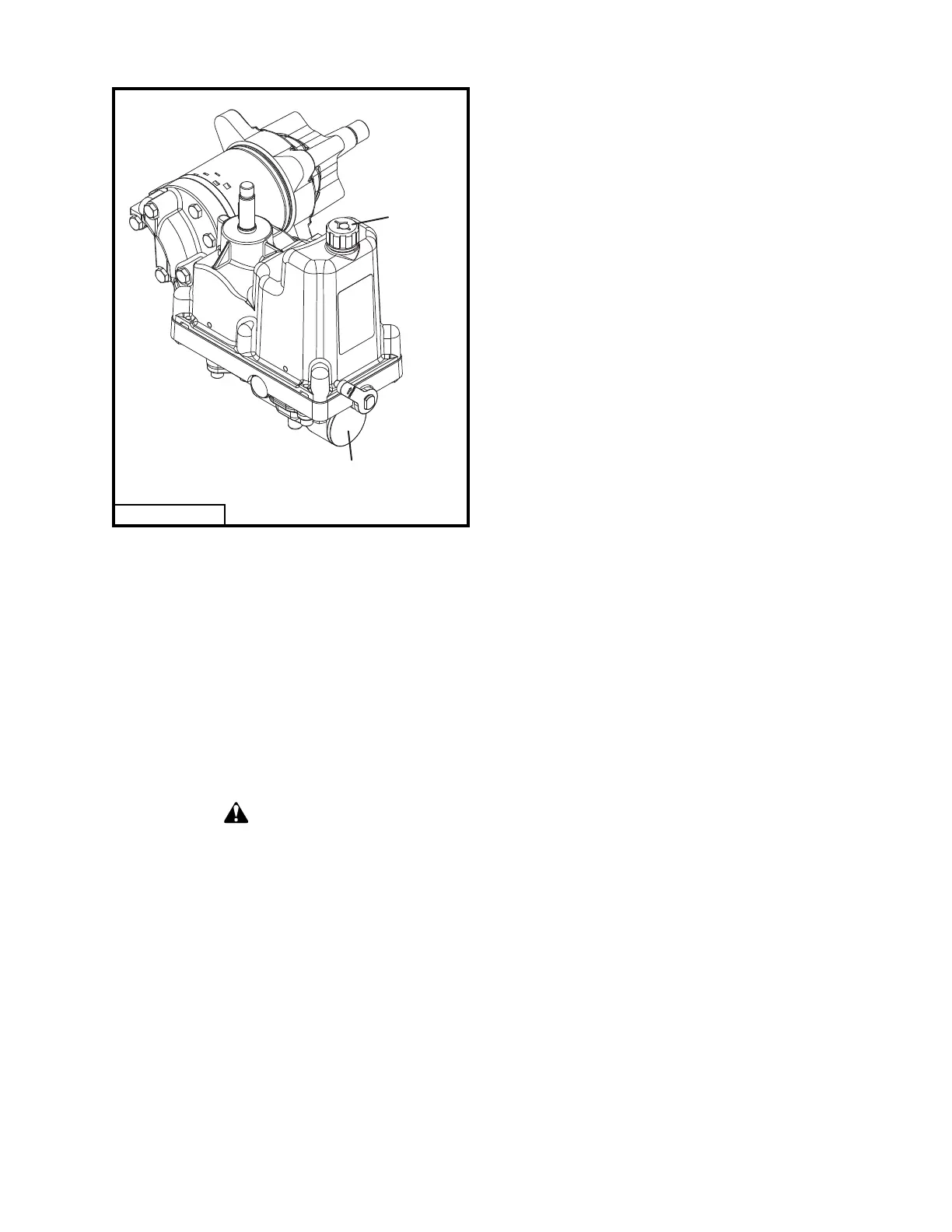

Fig. 10
LEFT
SIDE
BREATHER/
DIPSTICK
FILTER AND PLUG &
O-RING ASSEMBLY
REMOVE PLUG TO
CHANGE FILTER
12069
WARNING
CHANGING
DRIVE SYSTEM FLUID
(Refer to Fig. 10)
Raise the seat. Place a drip pan under the
transmission reservoir and fi lter (at the front
of the transmission). Remove plug and fi lter
and drain fl uid into the pan. Allow transmis-
sion to drain completely. Install a new fl uid
fi lter. Torque plug to 115-135 in. lbs. Fill res-
ervoir with fl uid. Let engine idle a few minutes.
Check fl uid level and refi ll if needed. Repeat
procedure for other transmission.
DO NOT operate machine with low
fl uid. Low fl uid could cause dam-
age to drive system and loss of
control of the machine.
