34
No
Yes
Parking brake
'OFF'. Remove
plug from back
of brake switch.
With an ohm
meter test
through the
brake switch on
the posts that
were connected
to the yellow and
green wires
(figure 31).
Key switch is
'OFF' for each
test until
otherwise noted.
Does yellow wire
on brake switch
show ground
when tested?
Replace parking
brake switch.
Replace interlock
module.

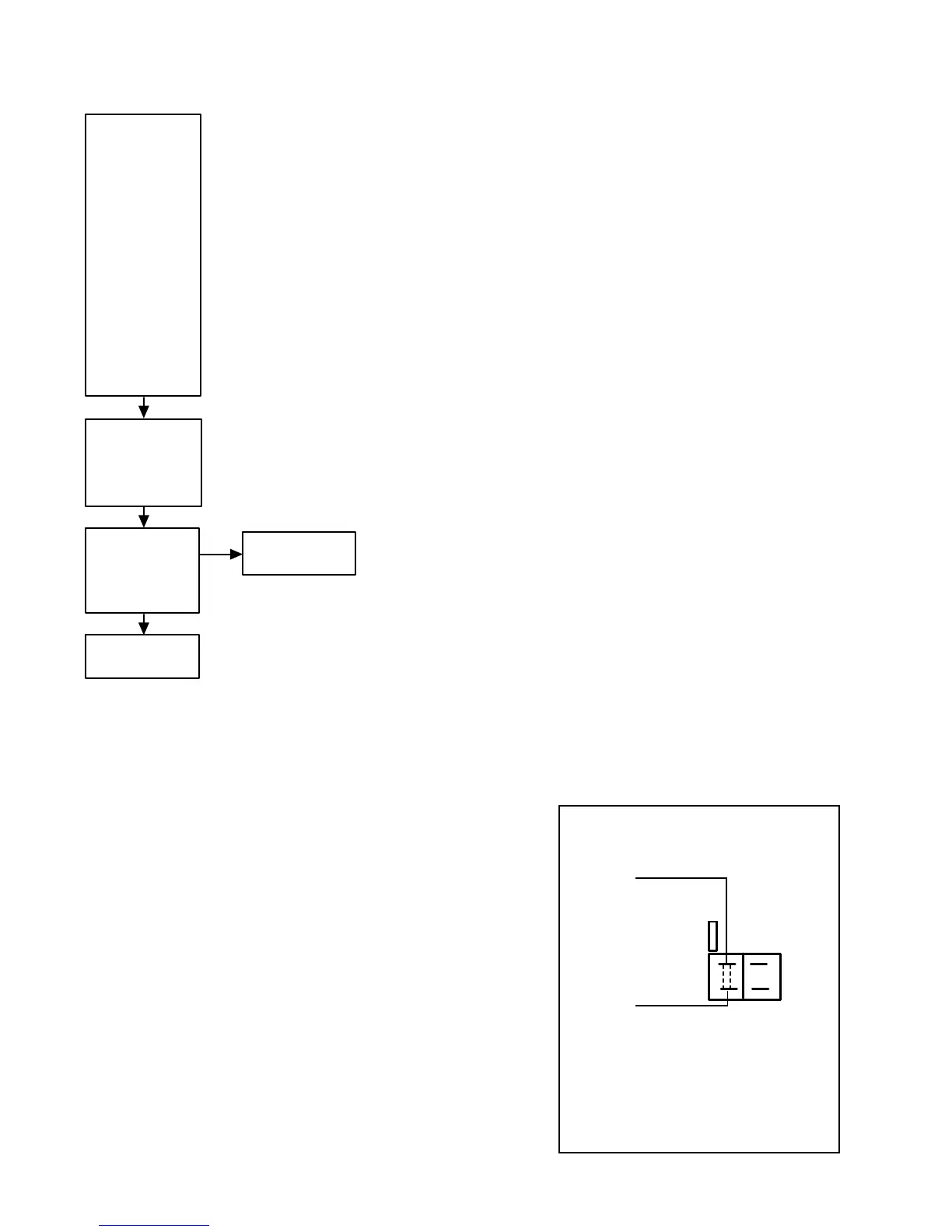

ENGINE STARTS, BUT DIES
WHEN LEVERS ARE BROUGHT IN OR PTO SWITCH IS ENGAGED
MODELS 612, 614, 616 and 718 NOTES:
If the engine will crank and
start, both steering switches,
PTO switch and the seat switch
are functioning properly. The
problem must be the brake
switch or the interlock module.
Green
Yellow
Brake switch
view.
Figure 31
NC NO
To Next Page
