Transmitter switches function

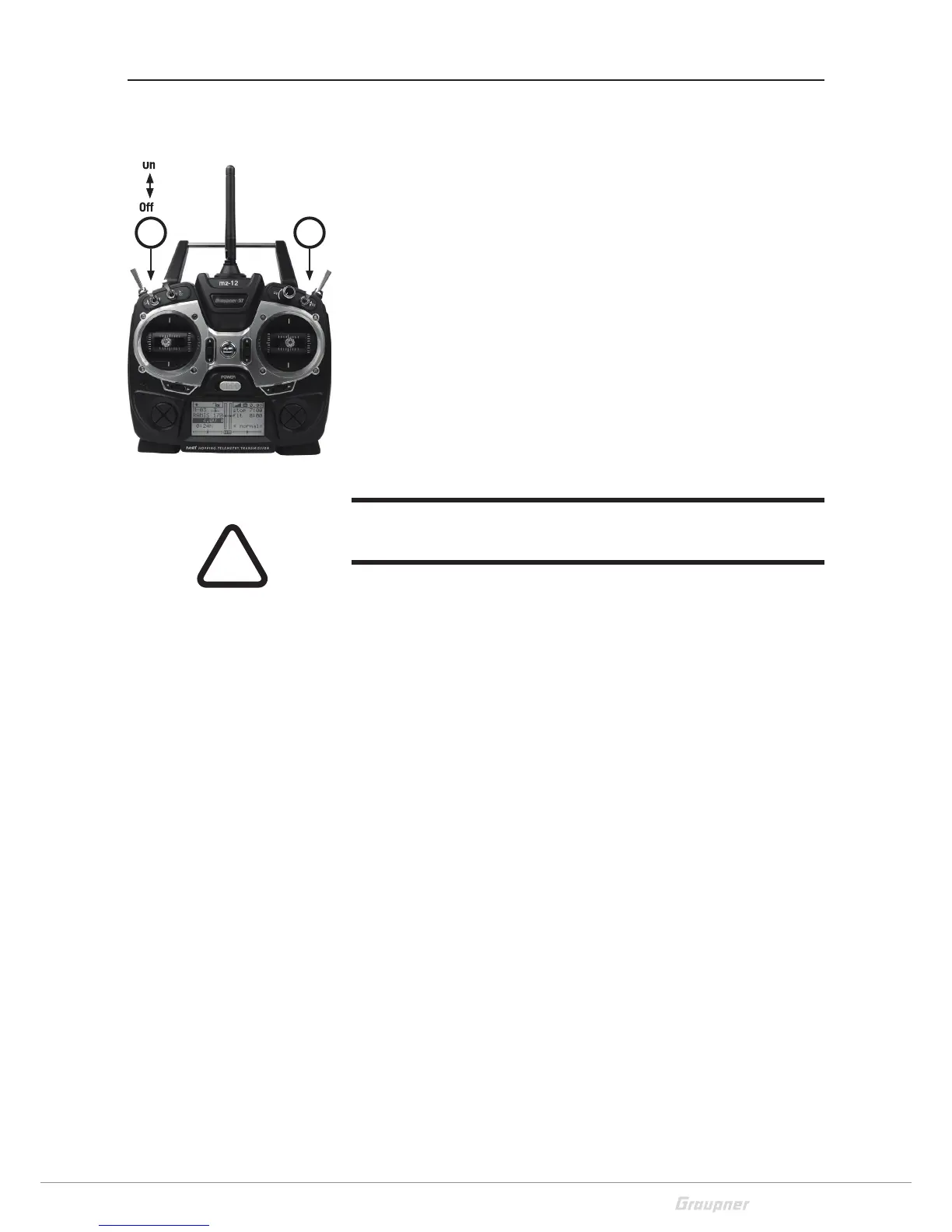

The transmitter is already completely set for Copter. The trans-
mitter is configured on mode 2. To change the mode and to neu-
tralize the throttle stick, please read the transmitter manual. To
avoid an unwanted start of the motors, they must be activated
and deactivated by switch 1 on the transmitter. (Motor stop
function)
By switch 3 it is possible to change flight mode.
Attitude mode: The stick movement determinates the Copter
reaction on Roll and Nick. It allows a maximal angle of about 50°
at 100% of stick movement. Mode suggested for beginners.
The stick movements acts directly proportionally to Roll and
Nick.
Rate mode: The stick movement determinates the rate without
angle limit. Aerobatic mode that allows rolls and loopings.
Install the propellers only after having operated all settings on
the transmitter and the Copter, risk of injury!
Auto-flip function through switch S2
The auto-flip function allows you to flip your copter in a very easy
way. It is essential that you control in Attitude mode (function not
allowed in Rate mode). The auto-flip function is controlled
through the channel 6 with the switch S 2. Activate the switch
and within 5 sec move the nick or roll stick to more than 50% of
its course, then the copter makes autonomously a flip in the
selected direction. After the flip it is possible to have some little
position movements (<10°)
LED function head through S6
In the head of the HoTT Hornet there is a LED illumination of the
eyes. The color of the LEDs can be changed through a specifi-
cally programmed control S 6 on the channel 6 of the transmit-
ter.
Read the manual included with the Switch module SXM No.
3971.
