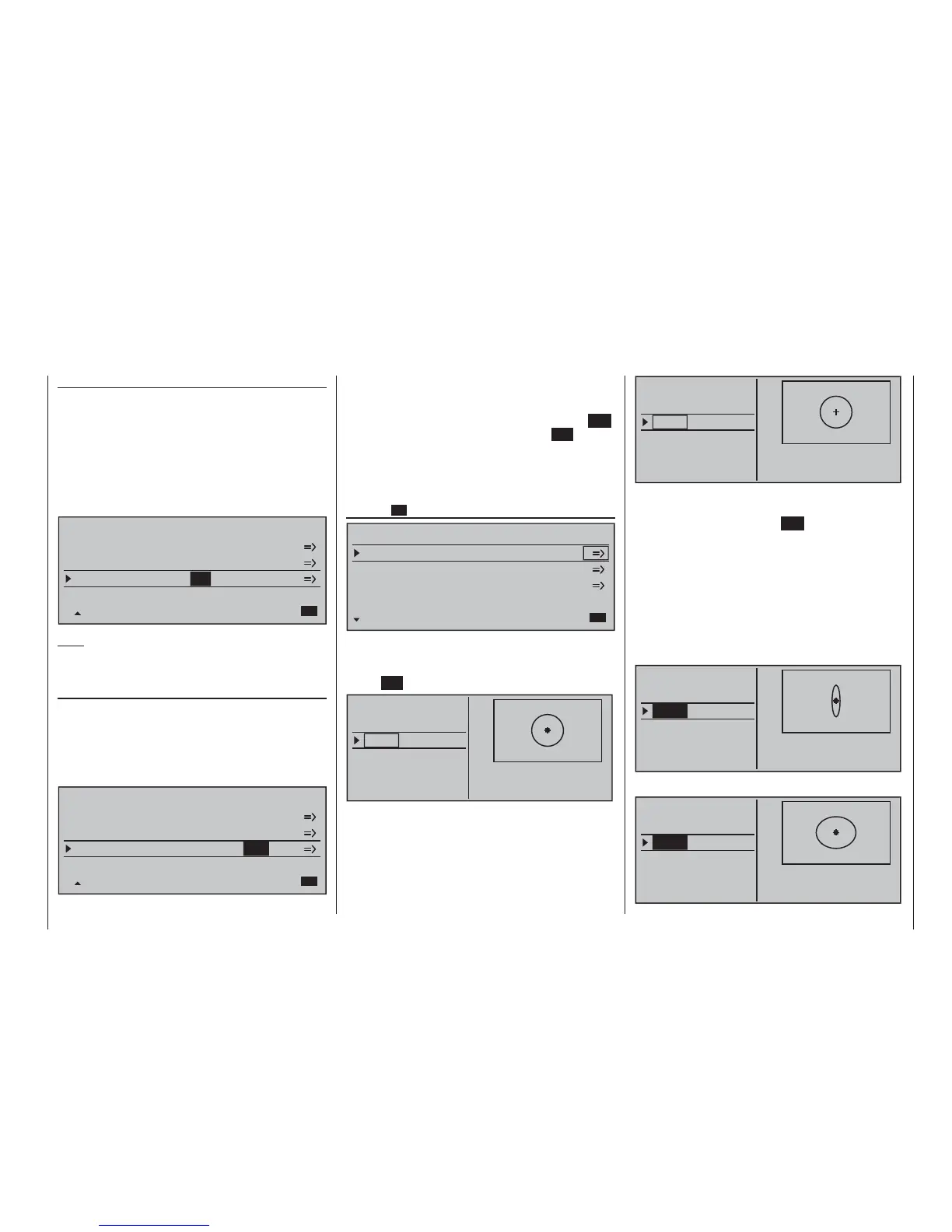

Detail program description - Ring limiter
Column, "Output"
The three ring limiters are pre-assigned to receiver
outputs 3/4, 9/10 and 11/12 by default, whereby the
outputs in column "X" are for the forward/reverse
function and the outputs in column "Y" are for the left/
right function. However, this preset combination of
receiver outputs can be replaced as necessary by
any other combination at any time. This is essentially
done in the same manner as described previously
under "Input", for example:
RING LIMIT
4
9
SET
4
Input
3
3
3
3
XY
4
10
6
X
Output
Y
OFF
OFF
OFF

4
7
Note:
Watch out for undesirable overlaps if you use one of
the outputs within a mixer.
Column, "SET"
The SET column is used to determine just which of
the ring limiters is to be "OFF" and which are to be
"ON", i.e. active. Use the selection keys on the left
or right touch pad to move the marker frame to the
desired value fi eld in the SET column then briefl y tap
the center SET key of the right touch pad:
RING LIMIT
4
9
SET
4
Input
3
3
3
3
XY
4
10
6
X
Output
Y
OFF
OFF

4
7
OFF
In the value fi eld now displayed in inverse video,
make a choice between the two options, "ON" and
"OFF", with the  or  selection keys then
conclude the entry with a brief tap on the center
ESC
key of the left touch pad or on the center SET key of
the right touch pad.
A tap on the  or  keys of the right touch pad
at the same time (CLEAR) will reset the active value
fi eld back to its "OFF" default value.
Column 
RING LIMIT
4
9
SET
4
Input
3
3
3
3
XY
4
10
6
X
Output
Y
ON
ON

4
7
ON
Following a selection of one of the three lines with
the selection keys, switch to the settings page for the
selected ring limiter (1 … 3) with a brief tap on the
center SET key of the right touch pad.
0%
Ring Limit 1
max-X
0%
100%
100%
CH 4
VSP OUT X
VSP OUT Y
0%
0%
CH 3
If, however, the small diamond at the center of the
circle in the fi gure above (which represents the
current joystick position) is not visible …
0%
Ring Limit 1
max-X
0%
100%
100%
CH 4
VSP OUT X
VSP OUT Y
0%
0%
CH 3
… then the respective ring limiter is still switched
"OFF". In this case, switch back to the previous page
with a brief tap on the center ESC key of the left
touch pad then switch the respective ring limiter "ON"
as previously described.
Programming procedure
The two upper value fi elds – labeled at the bottom
left of the display as "max-X" or "max-Y", depending
on the position of the marker frame – are used to
specify separate settings for each of the two control
functions, "left/right" and "forward/reverse" within a
range of 25 …
0%
Ring Limit 1
max-X
0%
100%
CH 4
VSP OUT X
VSP OUT Y
0%
0%
25%
CH 3
… and 125 %:
0%
Ring Limit 1
max-X
0%
100%
CH 4
VSP OUT X
VSP OUT Y
0%
0%
125%
CH 3
