35
Transmitter description - Secret mode
1
3
5
7
9
11
13
15
–100
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2
4
6
8
10
12
14
16
Regardless of the number of self-neutralizing joystick
functions available on your transmitter, if these
checks produce four 0 % results and eight 100 %
results then your transmitter's joysticks are optimally
calibrated. You can terminate this process then, if
appropriate, delete the model memory just created.
Otherwise jump (as described at the outset of the
previous double page) to the "Stick calibration" line
in the »SECRET MODE« menu then briefl y touch the
center SET key of the right touch pad.

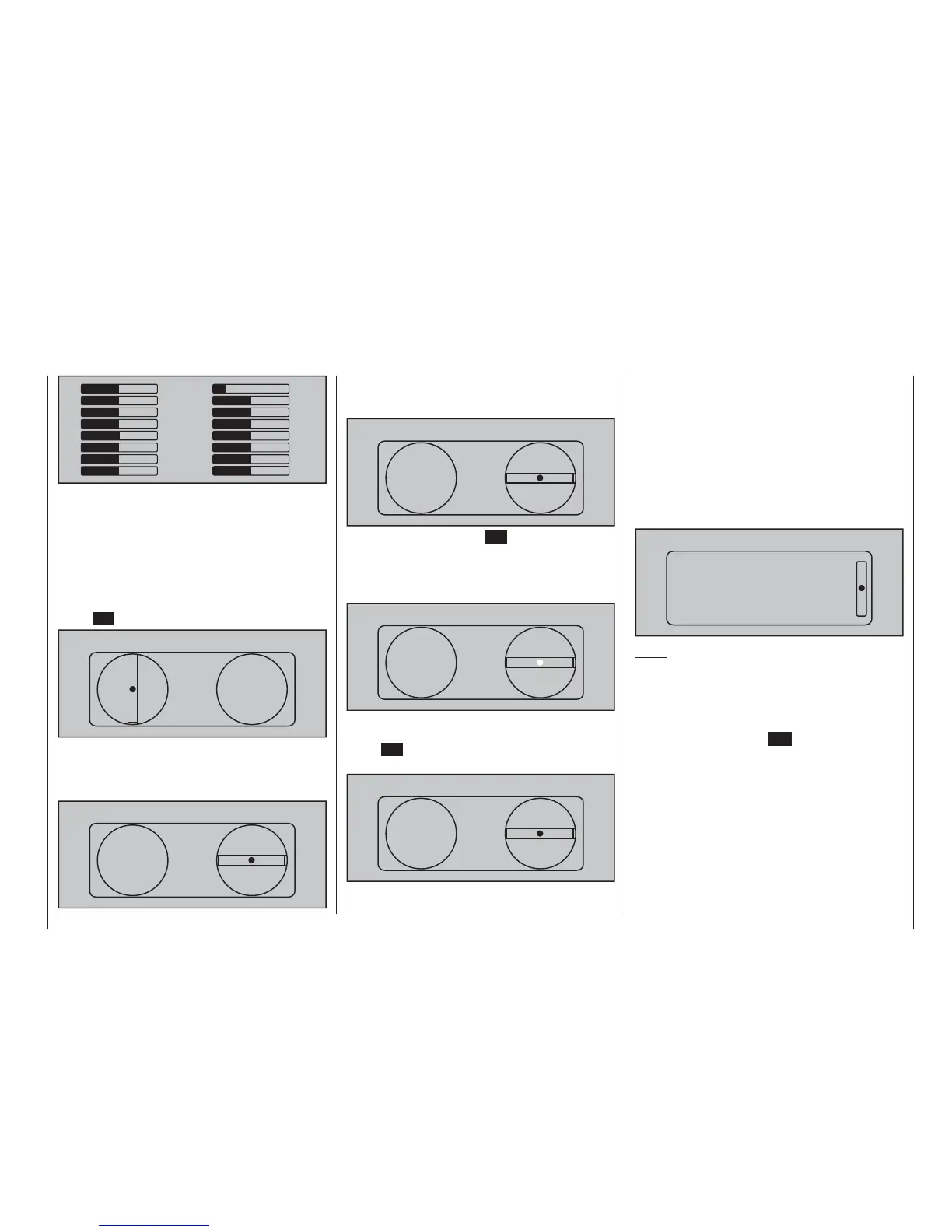

STICK CALIBRATION
0%
The selection keys of the right touch pad will
now allow you to cyclically select the four calibrated
joystick planes, e.g. the left/right plane of the right
joystick.
STICK CALIBRATION
0%
Now position the right joystick – without exerting extra
force – to its left limit corresponding with the on-
screen blinking arrow pointing to the left.
STICK CALIBRATION
+102%
… and briefl y tap the center SET key of the right touch
pad. This concludes this example calibration of the
right joystick's left limit. The circle in the middle of the
stylized joystick plane will now blink as confi rmation of
the calibration.
STICK CALIBRATION
+100%
Now release the self-neutralizing joystick so it can
return to its center position and then tap again on the
center SET key to calibrate the joystick's centered
position. The right triangle marker will begin to blink.
STICK CALIBRATION
0%
Repeat the calibration process for the right limit of the
right joystick. The other joystick planes are calibrated
analogously.
Proceed similarly to calibrate the three sliders
mounted in the middle console and the two
proportional rotary controls on the sides of the
transmitter. The calibration options for these fi ve
proportional controls can be reached by repeatedly
tapping on the or selection keys of the right
touch pad until the desired calibration position is
reached, e.g..:
LEVER CALIBRATION
0%
Notes:
Correct any bad calibrations by repeating the •
respective process.
Within a given joystick plane, each of the three •
calibration positions can be selected directly with
the selection keys of the left or right touch pad.
Briefl y touching the center ESC key of the left touch
pad will terminate the process and return to the sub-
menu "Stick calibration".
