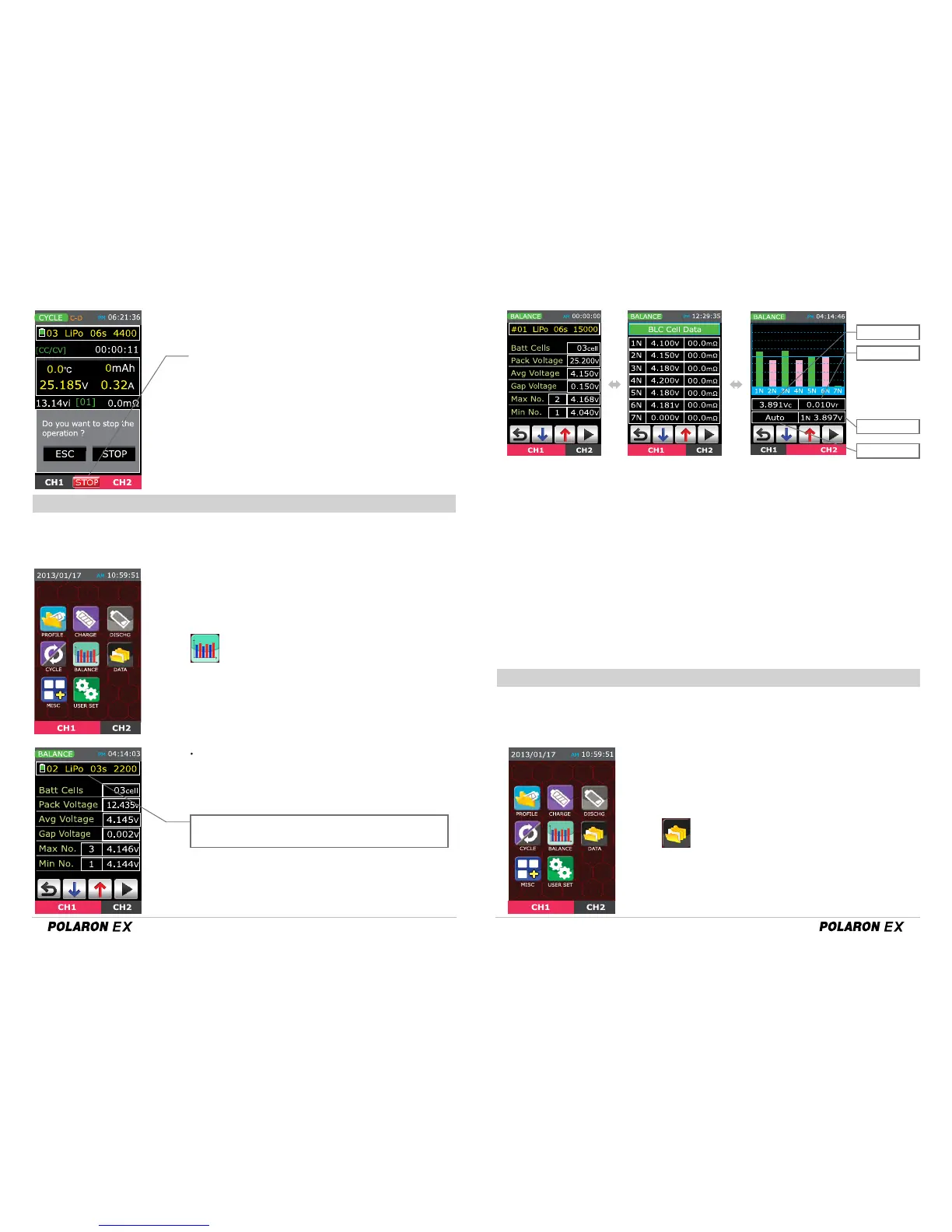

When to STOP button, the pop up window appears which
asks whether to stop operating. When to tap STOP or ESC
button, the charger will stop or continue the cycle
◎ BALANCE PAGE
◎ DATA VIEW PAGE
When to tap BALANCE icon on main page, you may access to balance mode. When to tap DEC/INC
Buttons, the below 3 modes are transited each other. Tap Enter button to initiate balancing. The mode is
applied to the battery that is equipped with cell balance connector such as LiPo, LiIon, LiFe batteries.
Tap BALANCE icon to access balance mode
(Balance connector should installed)
Tap DATA icon to check the charge/discharge
data at main page
LiPo, Lilon, LiFe battery balance page
This page shows the parameters of the connected battery
When to tap the box, it is activate in blue and you
may select battery memory
BALANCE MODE 1 BALANCE MODE 2
▲ ▲ ▲
When to tap DATA icon on main page, you may access to data view mode. There are 3 view modes
The data can be programmed tapping DEC/INC buttons after activating in the case of Cycle data and
Graph data modes, but the data in the Normal data mode can not be programmed
BALANCE MODE 3
1) BALANCE MODE 1 : This page shows the basic date of battery
2) BALANCE MODE 2 : This page shows each cell voltage and internal impedance
3) BALANCE MODE 3 :
- Center Voltage(Vc): It is the center voltage of Y axis
- Range Voltage(Vr) : It is the voltage range of every section in Y axis
- Manual / Auto
Manual:
You can set the graph operating. Tap the data boa to activate and tap DEC/INC
buttons to program the parameters. Center Voltage and Range Voltage can be activate and
programmed at manual setup
Auto :
This is an automatic setup of the graph operating.
Each cell voltage is activated and checked
- Cell Voltage :
it shows each cell voltage.
Tapping makes it activated and you may check each cell data
Center voltage
Range voltage
Cell Voltage
Manual / Auto
