GRAUPNER Polaron EX Operating Instruction

13 14

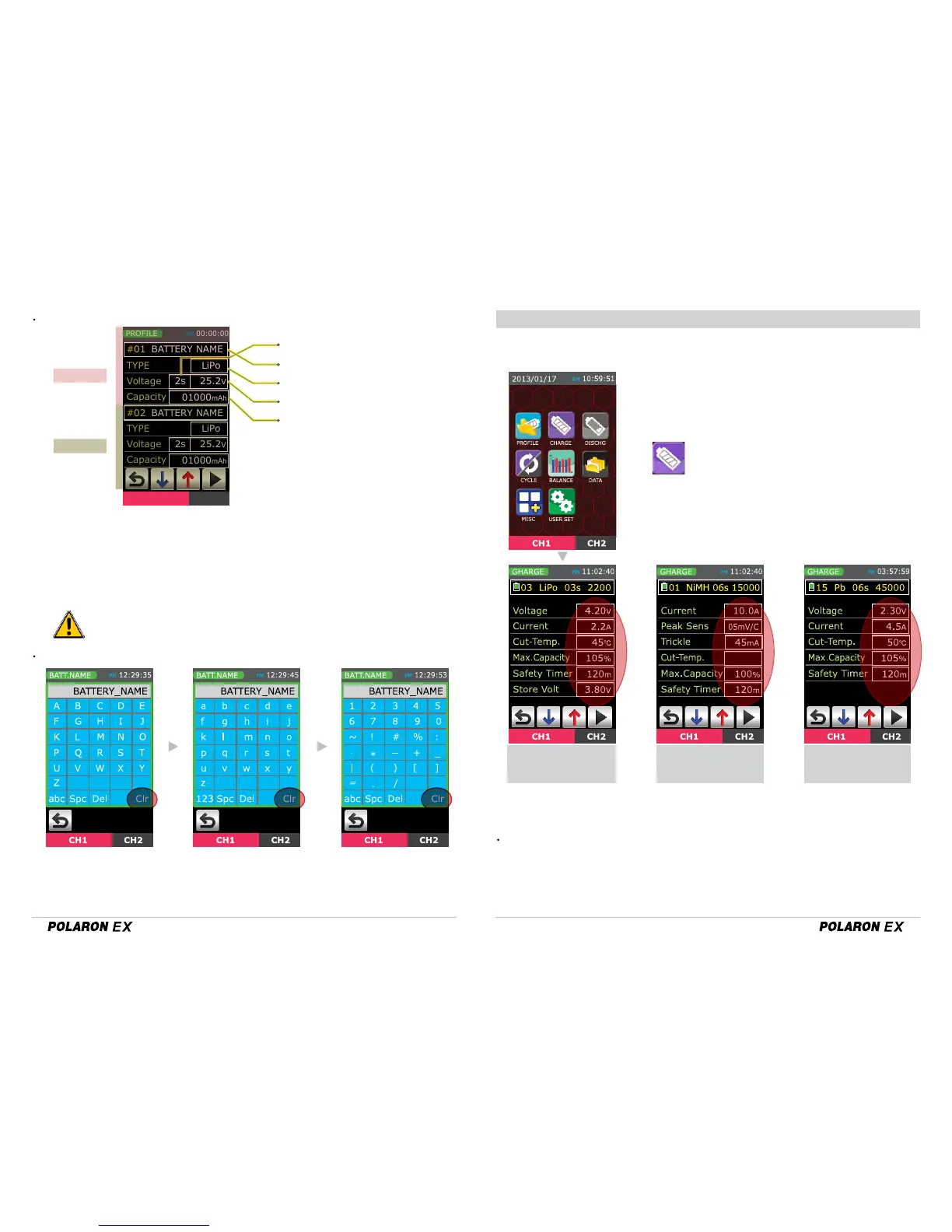

◎ CHARGE PAGE
Display
LiPo, LiIon, LiFe battery charge setup
- Voltage
- Current
: Maximum cell voltage, CV (Constant Voltage)
:
Charge current, tapping INC/DEC buttons can activate and edit the parameter
The default charge current is set to 1C (1 x capacity), however this can be
adjusted from 0.1 to 20 Amps and operated within 400W
Battery name editing
Section 1
Section 2
Memory number & Battery name
Battery type
Battery capacity
Number of cells in series
Battery voltage
1) Tap memory number box in section 1 to activate and tap INC/DNC buttons to set memory number. 1~20
numbers are available and changeable. Press and hold memory number box to access battery name page
2) Tap battery type, number of cells and capacity to activate. Tapping INC/DEC buttons edits the battery parameters
3) Memory copy
Tap number box on Section 2 to activate and tap INC/DNC buttons to set memory number. Tap
Enter button to copy the battery parameters of Section 1 to the battery parameters of Section 2
4)
Tap Enter button to store the battery parameters and tap ESC button to get back to the previous page
It is very important that the correct battery parameters are entered, as incorrect values
could cause the charger to seriously damage your battery which could result in a fire !
12 characters are available. Tapping Clr in the red circle erases the default name and the new name can
be entered. When to tap “ABC”, “abc”, “123, you may access to each page of upper and lower
case, numbers with special characters and tap the character that you want to use as a name. Tapping
ESC button makes you get back to the previous page.
When to tap CHARGE icon on main page, you may access to charge mode. The parameters in
this mode depends on the selected battery type at profile page
It is used to program the battery parameters. Tap each data box to activate in blue and tap
INC/DEC button to edit the battery parameters.
Tap CHARGE icon on main page to
charge
The battery parameters
on charge page when to
select LiPo, Lilon, LiFe
The battery parameters
on charge page when to
select NiCd, NiMH
The battery parameters
on charge page when to
select Pb battery
CH1 CH2
PROFILE
AM
00:00:00
#01 BATTERY NAME
TYPE
Voltage
Capacity
LiPo
01000mAh
25.2
V
2
S
#02 BATTERY NAME
TYPE
Voltage
Capacity
LiPo
01000
mAh
25.2
V
2
S
USER NAME
