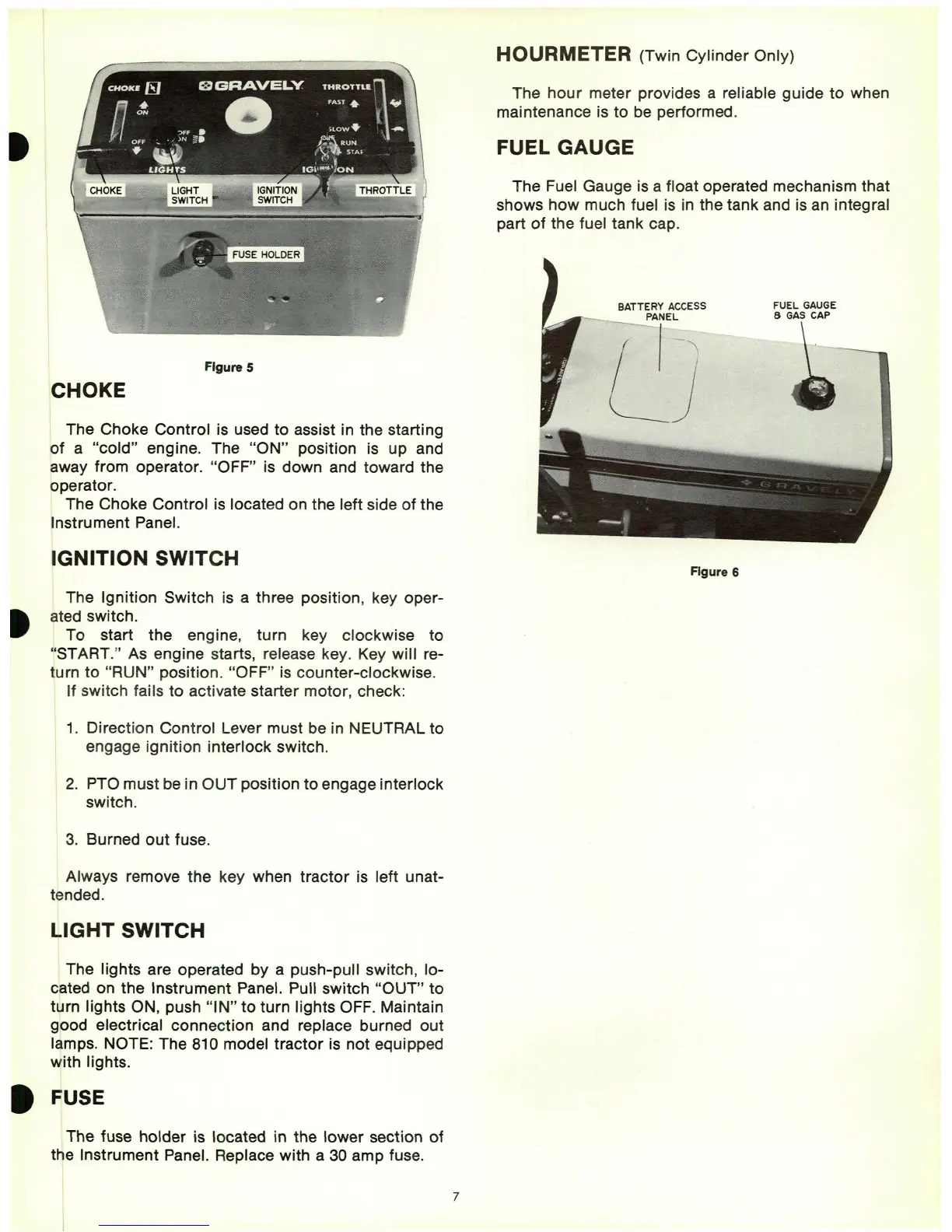

Figure 5
CHOKE
The Choke Control is used to assist in the starting
of
a
"cold"
engine. The
"ON"
position is up and
away from operator. "OFF" is down and toward the
operator.
The Choke Control is located on the left side
of
the
Instrument Panel.
IGNITION SWITCH
The Ignition Switch is a three position, key oper-
ated switch.
To start the engine,
turn
key clockwise to
"START." As engine starts, release key. Key will re-
turn to
"RUN"
position. "OFF" is counter-clockwise.
If switch fails to activate starter motor, check:
1.
Direction Control Lever must be in NEUTRAL to
engage ignition interlock switch.
2.
PTO must be in
OUT
position to engage interlock
switch.
3.
Burned
out
fuse.
Always remove the key when
tractor
is left unat-
tended.
LIGHT SWITCH
The lights are operated by a push-pull switch, lo-
cated on the Instrument Panel. Pull switch
"OUT"
to
turn lights ON, push
"'N"
to
turn
lights OFF. Maintain
good electrical connection and replace burned
out
lamps. NOTE: The 810 model
tractor
is
not
equipped
with lights.
I FUSE
The fuse holder is located in the lower section
of
the Instrument Panel. Replace with a 30 amp fuse.
7
HOURMETER (Twin Cylinder Only)
The
hour
meter provides a reliable guide to when
maintenance is to be performed.
FUEL GAUGE
The Fuel Gauge is a float operated mechanism that
shows
how
much fuel is in the tank and is an integral
part
of
the fuel tank cap.
FUEL
GAUGE
8
GAS
CAP
c]
Figure 6
