2. Release lever and slide seat slightly
forward or back to lock seat into
position. Ensure that seat is locked into
position before moving unit.
To tilt seat forward see Service Position on
page 26.
Arm Rest Height
(Figure 8)
The arm rests can be adjusted for height to
accomodate operator preference.
• Mount the arm rests in the upper
mounting holes for a lower arm rest
height.
• Mount the arm rests in the lower
mounting holes for a higher arm rest
height.
The arm rests can also be adjusted for arm
angle.
• Turn the height adjustment knob
(item 1) counter-clockwise to raise the
front of the armrest.
• Turn the height adjustment knob
clockwise to lower the front of the
armrest.
Back Rest Angle
The seat back rest angle can be adjusted to
accomodate operator preference.
• Rotate the adjustment knob (item 2)
clockwise to tilt seat back forward.
• Rotate counter-clockwise to adjust
seatback angle backward.
Back Lumbar Support
The seat back lumbar support can be
adjusted to provide additional back support
for the operator.
• Rotate the adjustment knob (item 5)
clockwise to increase the amount of
lumbar support.
• Rotate counter-clockwise to decrease
the amount of lumbar support.
HOUR METER
Measures and displays (1) the amount of time
engine has been run, time spent on jobs and
service intervals. This time cannot be
cleared.
Operation
Press and release the
toggle button (2) to
shift between different
functions.
Press and hold the
toggle button to reset
the timer or clear a
service message.
The hour meter has three functions:
1.Timer (TMR1)
Measures the time spent on individual jobs.
Press and hold the toggle button to reset the
timer to zero. TMR1 will then start measuring
engine run time until it is reset to zero again.
2.Service Alert
Displays maintenance interval reminders for:
• changing engine oil (CHG OIL)
• changing the hydraulic oil and filter
(CHG HYD OIL)
• servicing the air filter (SRV
AIRFILTER)
The alert starts counting down two hours
before the maintenance is due. The meter
flashes NOW when it reaches the
maintenance time.
Press and hold the toggle button to reset the
maintenance clock to zero after performing
the service.

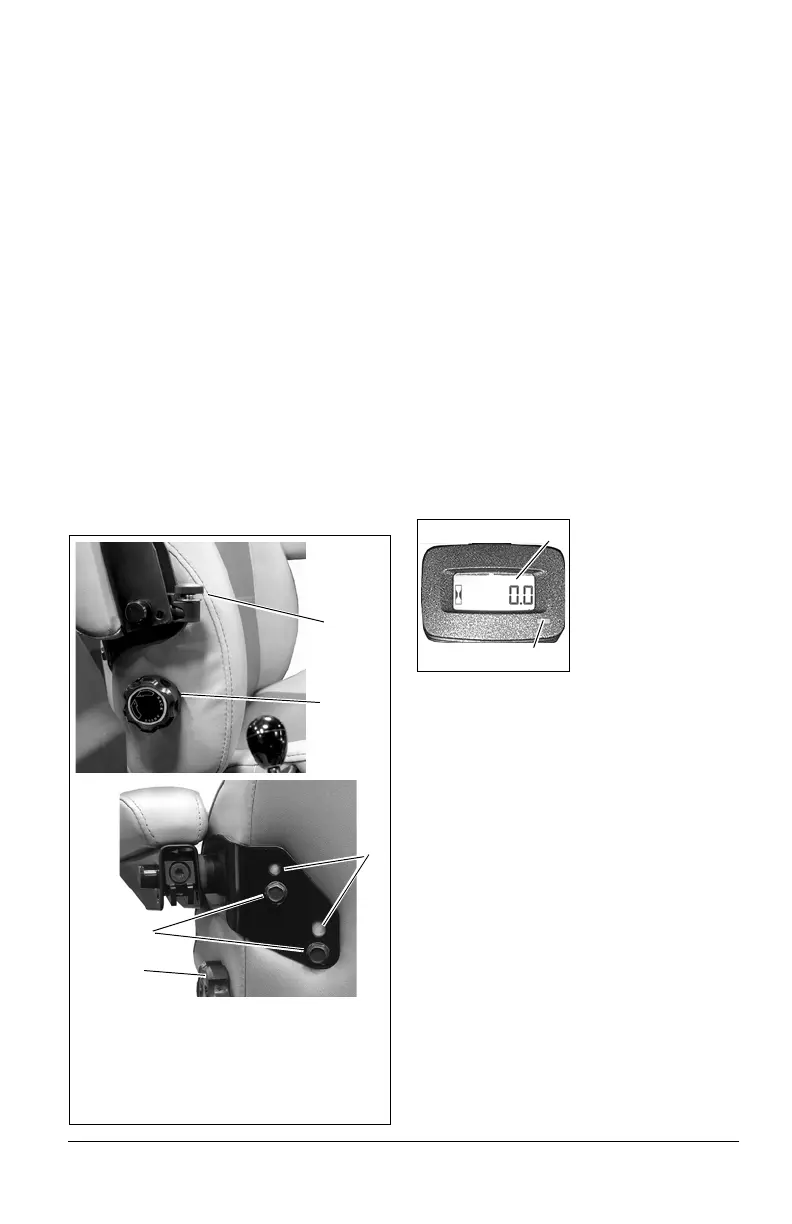

Figure 8
1. Arm Rest Angle Adjustment Knob
2. Back Rest Angle Adjustment Lever
3. Lower Arm Rest Mounting Location
4. Higher Arm Rest Mounting Location
5. Back Lumbar Support Adjustment Knob
