MOWER DECKS
Anti-scalp Roller Adjustment
The anti-scalp rollers are set at the factory for
typical mowing height, but can be adjusted for
high or low cutting conditions (Figure 33).
Anti-Scalp rollers are intended to prevent
lawn scalping, not to control cutting height.
For a very high cutting height, set the anti-
scalp rollers in the lowest position on the
bracket.
For a very low cutting height, set the anti-
scalp rollers in the highest position on the
bracket.
NOTICE: There are four anti-scalp rollers on
the outside of the mower deck and four anti-
scalp rollers on the inside of the mower deck.
Make sure all anti-scalp rollers are set at the
same height.
Deck Lift Pedal Adjustment
(Figure 34)
To adjust the foot pedal:
1. Remove the hex bolt securing the foot
pedal to the lift arm.
2. Move foot pedal to desired position.
3. Install hex bolt and torque to 52 – 70 lbf-
ft (71 – 95 N•m).

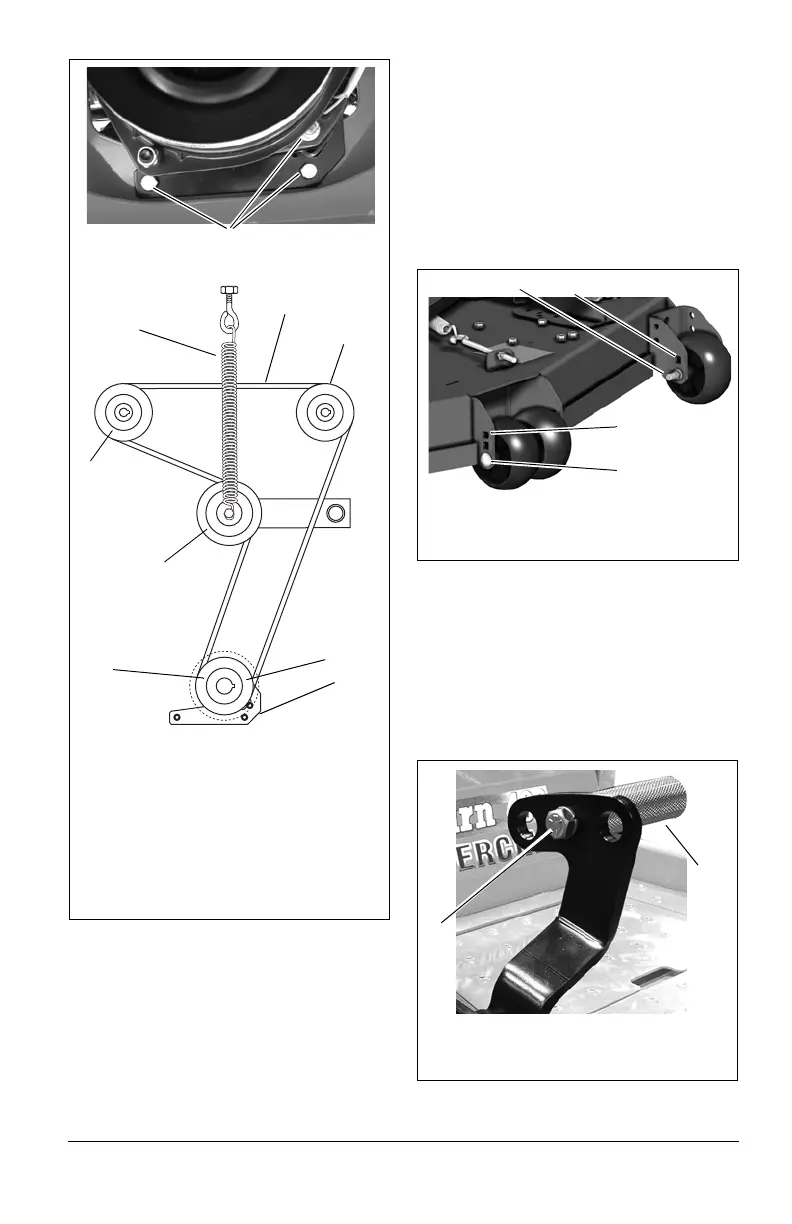

Figure 32
1. Hydro Belt
2. Spring
3. Idler
4. Engine Sheave
5. Right Hand Hydrostat
6. Left Hand Hydrostat
7. Clutch
8. Clutch Anchor
6
1
5
2
7
8
4
3
Clutch Anchor and
Mounting Hardware
Figure 33
1. Lowest Cutting Height
2. Highest Cutting Height
1
2
1
2
Figure 34
1. Deck Lift Pedal
2. Hex Bolt
1
2
