4. Reinstall clutch stop bolt and secure with
original hardware.
5. Reinstall clutch stop bracket and secure
with original hardware.
6. Return seat to operating position.
7. Reinstall PTO belt. See Install PTO Belt
on page 36.
8. Reinstall transaxle skid and secure with
original hardware.
ADJUST ANTI-SCALP WHEELS
See Figure 56.
The anti-scalp wheels are set at the factory
for typical mowing height, but can be adjusted
for high or low cutting conditions.
1. Place steering levers in neutral position
and engage parking brake.
2. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
3. Remove hardware securing anti-scalp
wheels to deck and remove wheels.
4. Position wheels as necessary:
• For a very high cutting height, set the
anti-scalp wheels in the lowest position
on the bracket.
• For a very low cutting height, set the
anti-scalp wheels in the highest position
on the bracket.
5. Secure with original hardware.
IMPORTANT: All anti-scalp wheels MUST be
set to the same height.
ADJUST DECK LIFT PEDAL
See Figure 57.
1. Place steering levers in neutral position
and engage parking brake.
2. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
3. Remove hardware securing deck lift
pedal to deck lift arm.
4. Place pedal in desired position.
5. Reinstall hardware and torque to 71 – 95
N•m (52 – 70 lb-ft).

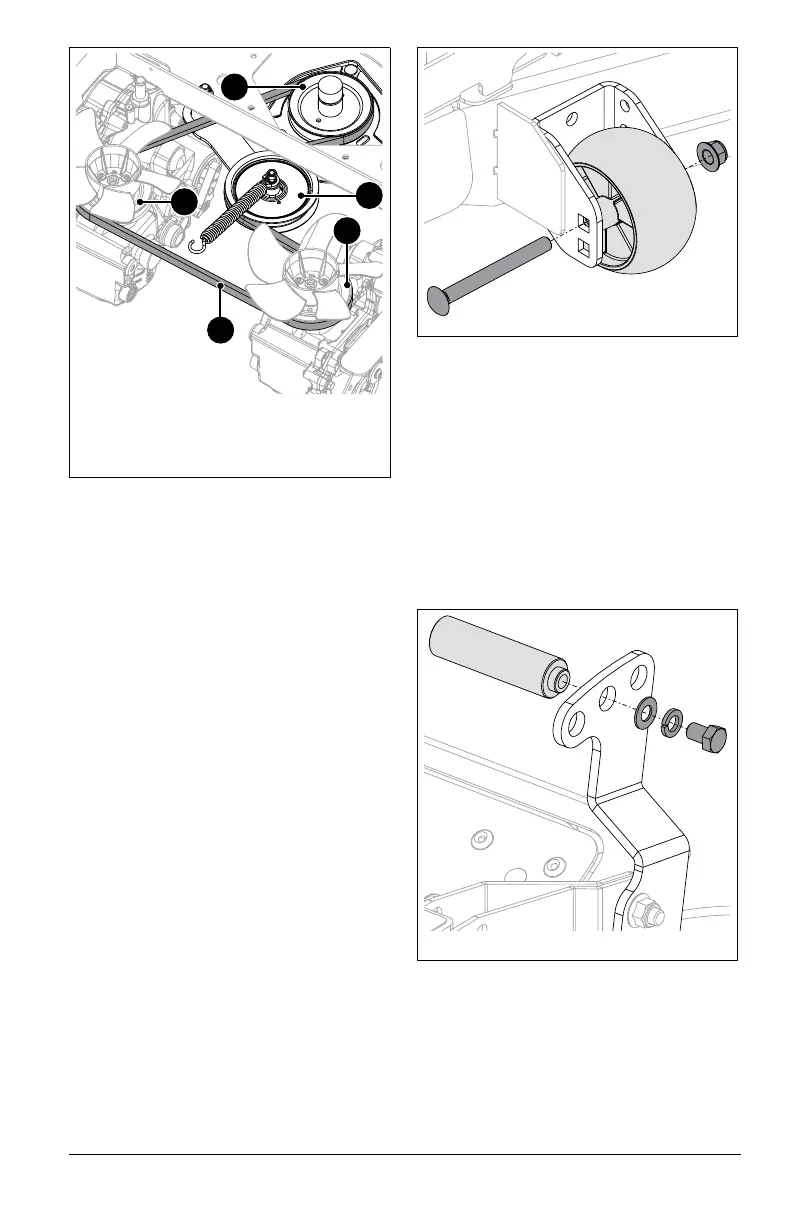

Figure 55
1. Engine Sheave
2. Transaxle Belt Idler
3. Right Transaxle
4. Left Transaxle
5. Transaxle Belt
1
2
4
3
5
