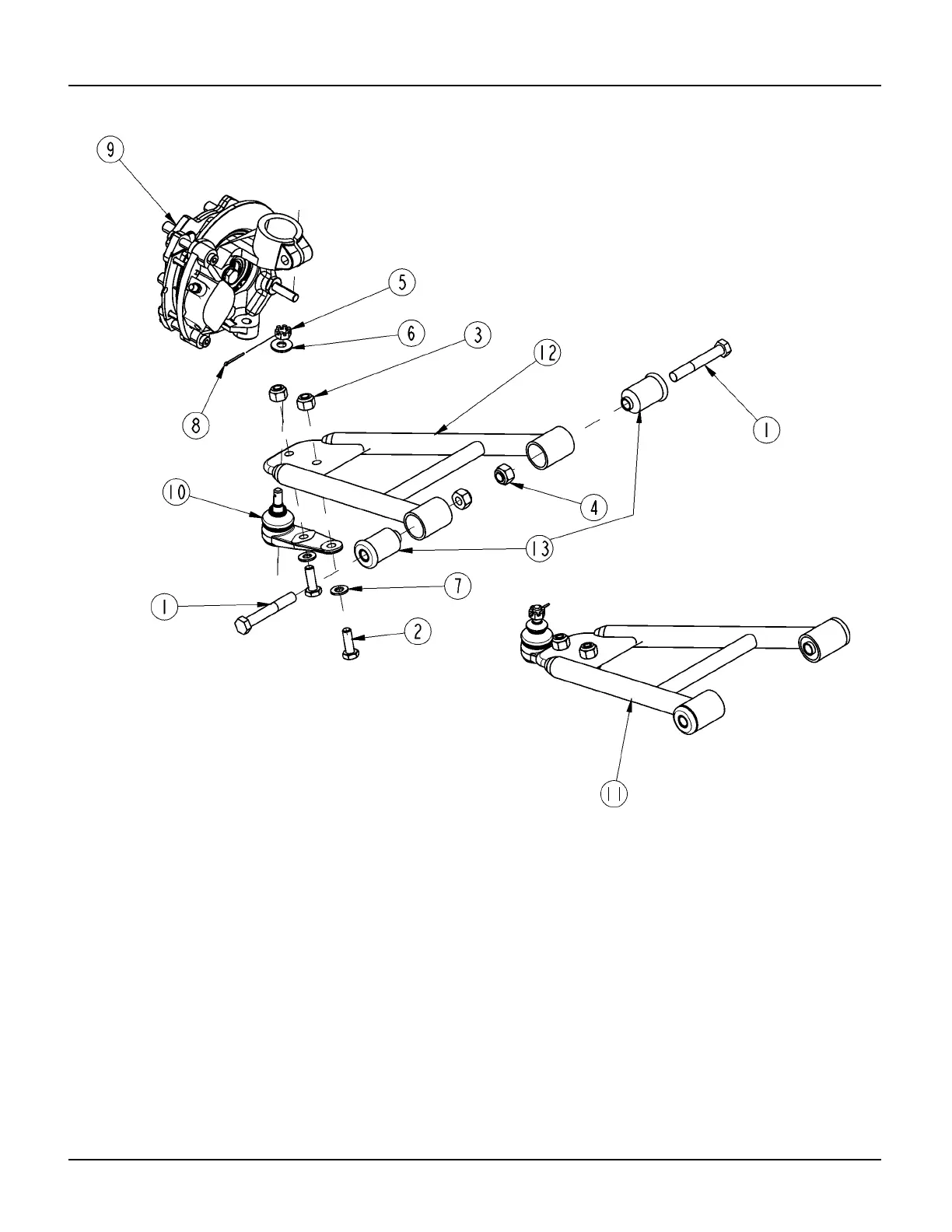

LOWER CONTROL ARM
Model 996122, 996124, 996143, 996144
Item Part No. Description
1 802-486C HHCS M12X1.75X80 GR8.8 PLT
2 05929100 HHCS M10X1.5X30 GR8.8
3 803-280C NUT HEX NYLOCK M10X1.5 PLT
4 803-281C NUT HEX NYLOCK M12X1.75 PLT
5 803-341C NUT HEX SLOTTED M10X1.25 PLT
6 804-011C WASHER FLAT 3/8 USS PLT
7 06435900 WASHER, FLAT STEEL .438 x 1.00 x .083
8 06700117 PIN COTTER 3/32 X 1 LONG
9 815-143C RH DISC BRAKE ASM 172mm W/JNT
9 815-144C LH DISC BRAKE ASM 172mm W/JNT
10 840-137C BALL JOINT BOLT ON SIR
11 04067200 CONTROL ARM ASSEMBLY, LH Includes No. 2, 3, 5, 6, 7, 8, 10, 11, 12 & 13
11 04067100 CONTROL ARM ASSEMBLY, RH Includes No. 2, 3, 5, 6, 7, 8, 10, 11, 12 & 13
12 04066000 CONTROL ARM WELDMENT, LH
13 04067000 CONTROL ARM WELDMENT, RH
