9

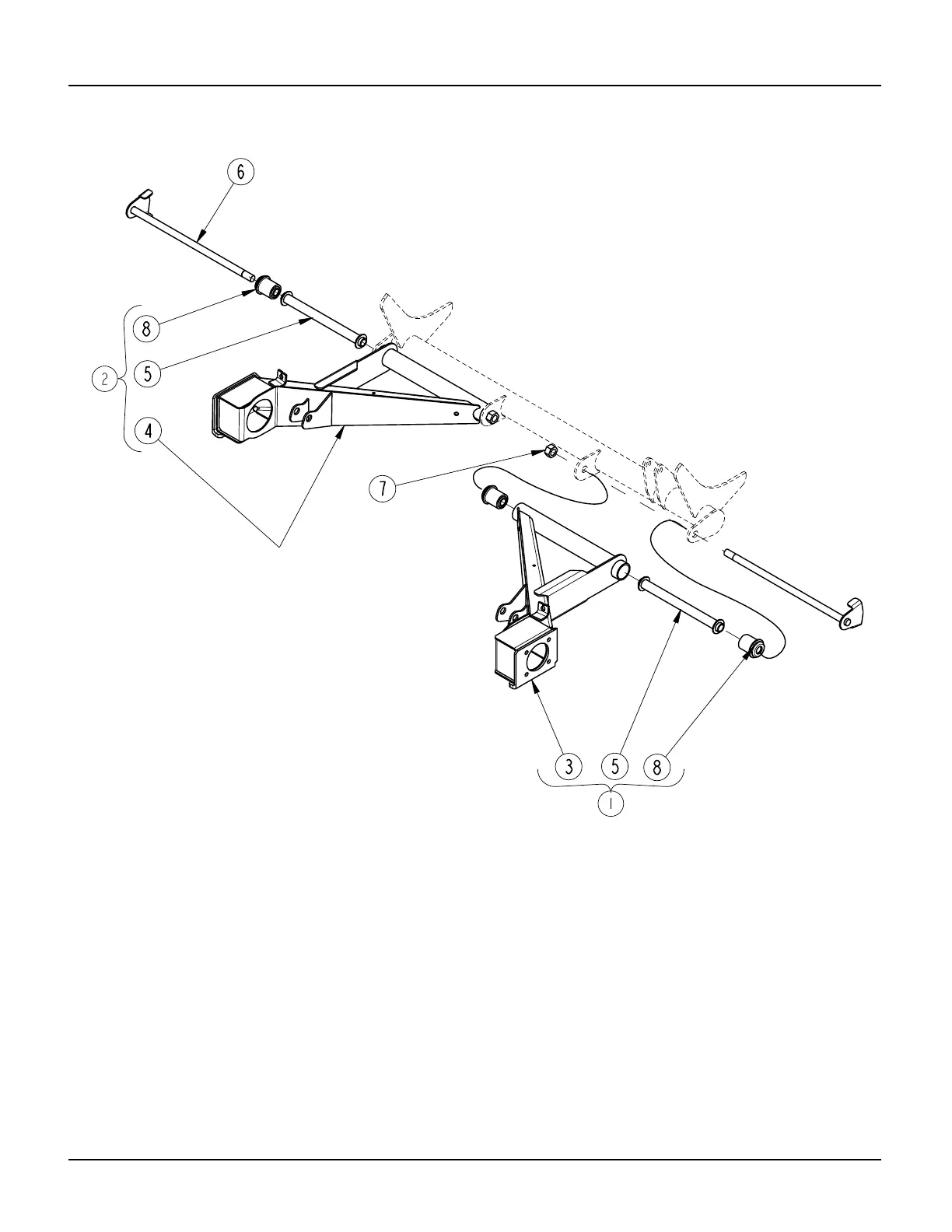

TRAILING ARM
Model 996122, 996124, 996143, 996144
Item Part No. Description
1 700-256S TRAILING ARM RH ASSY
2 700-257S TRAILING ARM LH ASSY
3 700-262H TRAILING ARM RH WELDMENT
4 700-263H TRAILING ARM LH WELDMENT
5 700-371H CENTER PIVOT TUBE WELDMENT
6 700-422H TRAILING ARM PIVOT BOLT WLDMNT
7 803-319C NUT HEX TOP LOCK 9/16-12 YLW
8 817-517C BUSHING IDLER ARM RUBBER
To Next Page
