Gravely ZT User Manual

GB - 16
OPENING AND CLOSING HOOD
To open, pull up on the front of the hood to
open and push down on top of hood to close
until hood snaps into hood clips (figure 10).
REMOVING MOWER DECK
Remove (Figure 11)
1. Remove PTO belt from electric clutch
(see REPLACING PTO BELT on
page 22).
NOTE: Perform step 2 and 3 for the right and
left side of unit.
2. Remove guide arm from front mount
bracket.
3. Remove rear lift link, rear trunnion, front
lift link, and front trunnion from mower
deck and mower lift.
4. Slide mower deck out from under unit.
Install (Figure 11)
1. Slide mower deck under unit.
NOTE: Perform step 2 and 3 for the right and
left side of unit.
2. Install rear lift link, rear trunnion, front lift
link, and front trunnion on mower deck
and mower lift.
3. Install guide arm on front mount bracket.
4. Install PTO belt on electric clutch (see
REPLACING PTO BELT on page 22).

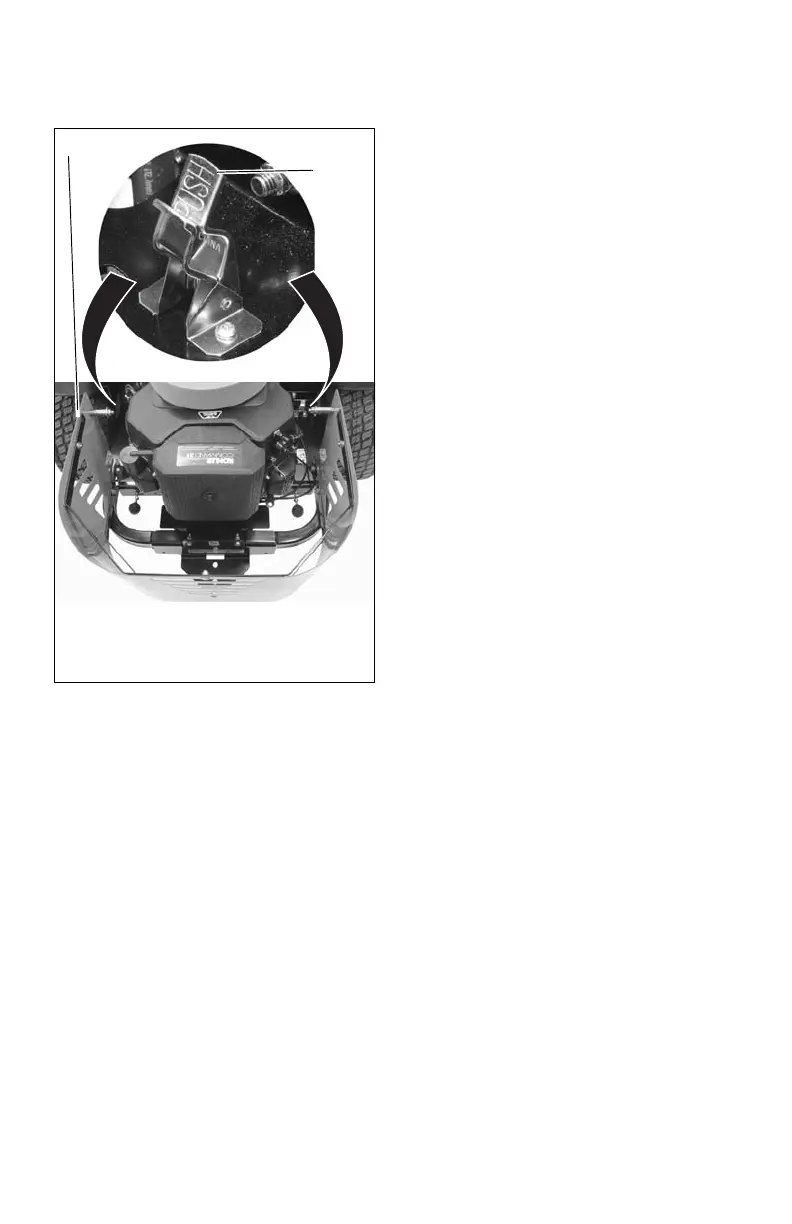

Figure 10
OE0140
1
1. Hood Clip
2. Hood Tipped Open
2

Gravely ZT Specifications

General

Engine Brand	Kawasaki
Transmission Type	Hydrostatic
Deck Material	Steel
Deck Type	Fabricated
Turning Radius	Zero-turn
Cutting Width	52 in
