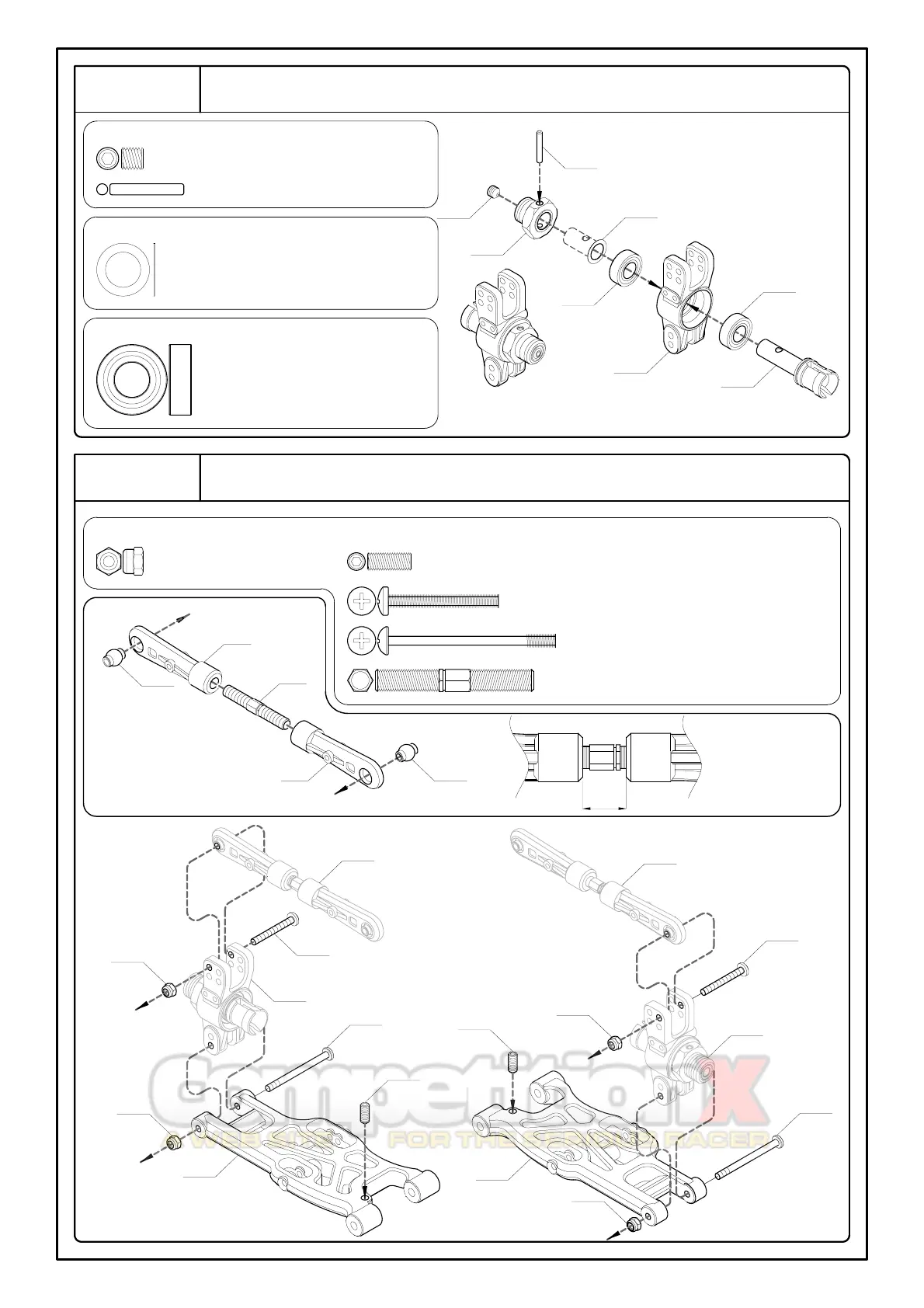

GREAT VIGOR Cage - Rear Suspension; Rear Upper Arm; Step

Rear Suspension
11A - Grub Screw w/Threadlock 5x5mm -- 2
11B - Pin 2.5x16.8mm -- 2
11C - Shim 8x12x0.2mm -- 2
11D - Ball Bearing 8x16x5mm -- 4
MV105
11A
MV107
11C
MV3462
11D
11B
11D
Rear Upper Arm
12A - Lock Nut 3mm -- 4
12B - Grub Screw 4x10mm -- 2
12C - Cap Screw 3x25mm -- 2
12D - Hub Stud 3x38mm -- 2
12E - Turnbuckle 5x36mm -- 2
XV349R1
MV113
12E
XV349R1
MV113
10mm
<12-1>
Step 12-1
12A
12C
Step 11
(R)
12A
XV347R1
12B
Step 11
Step 12
For Right and Left Sides
For Right Side
For Left Side
For Left Side
For Right Side
Step 12-1
12C
Step 11
(L)
12A
12B
12A
12D
12D
XV347R1
