GREAT VIGOR Cage - Shock Bodies and Shock Shafts

3.5mm
3.5mm
MV139011
(MV1592)
33B530AL
21E
MV138016
21D
21I
(33B530AL)
Step 21-1
21G
(MV139011)
Please Lock Here
21C
MV139011
21A
21B
MV138011
(MV1592)
MV138016
21D
21E
33B450AL
21H
(33B450AL)
Please Lock Here
21F
(MV138011)
21C
MV138011
21B
21A
3mm
3.5mm
3.5mm
21I - Shock Body 14x53mm -- 2
21H - Shock Body 14x45mm -- 2
21G - Shock Shaft 3.5x65.7mm -- 2
21F - Shock Shaft 3.5x56.2mm -- 2
21E - O-Ring 3.5mm -- 8
21D - O-Ring 3mm -- 4
21C - O-Ring 2.5x1mm -- 4
21B - Washer 2.5x5.9x0.5mm -- 4
21A - Lock Nut 2.6mm -- 4

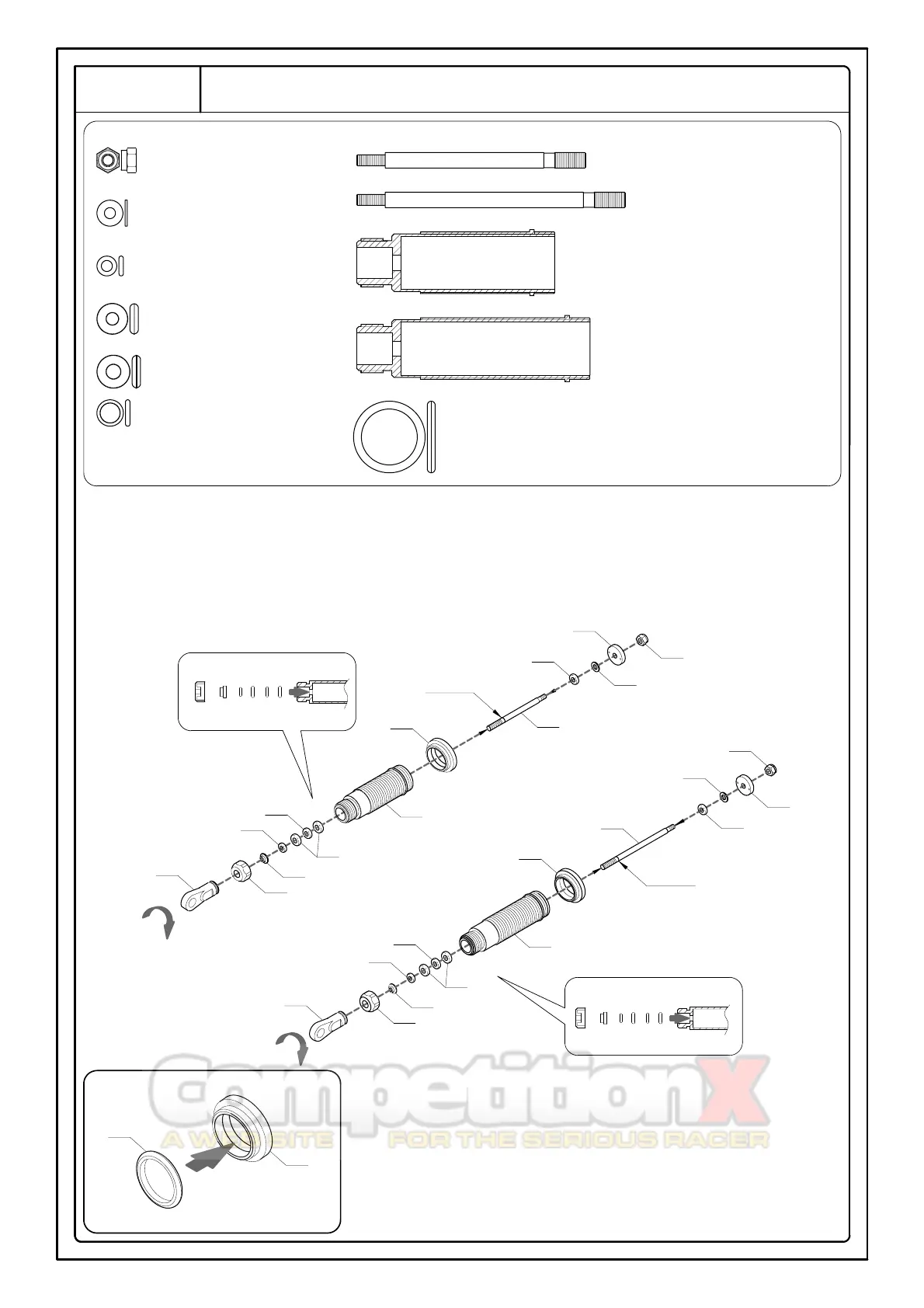

Shock Bodies and Shock Shafts
Step 21
For Right Side(x2)
For Left Side(x2)
3mm
21J - O-Ring 3x1mm -- 4
21K - O-Ring 12.4x1.78mm -- 4
3x1mm
21J
21J
3x1mm
33B450AL
21K
<21-1>
Step 21-1
