Gree CE54-24/F(C)

E-Smart Zone Controller
1
1 INSTALLATION INSTRUCTIONS

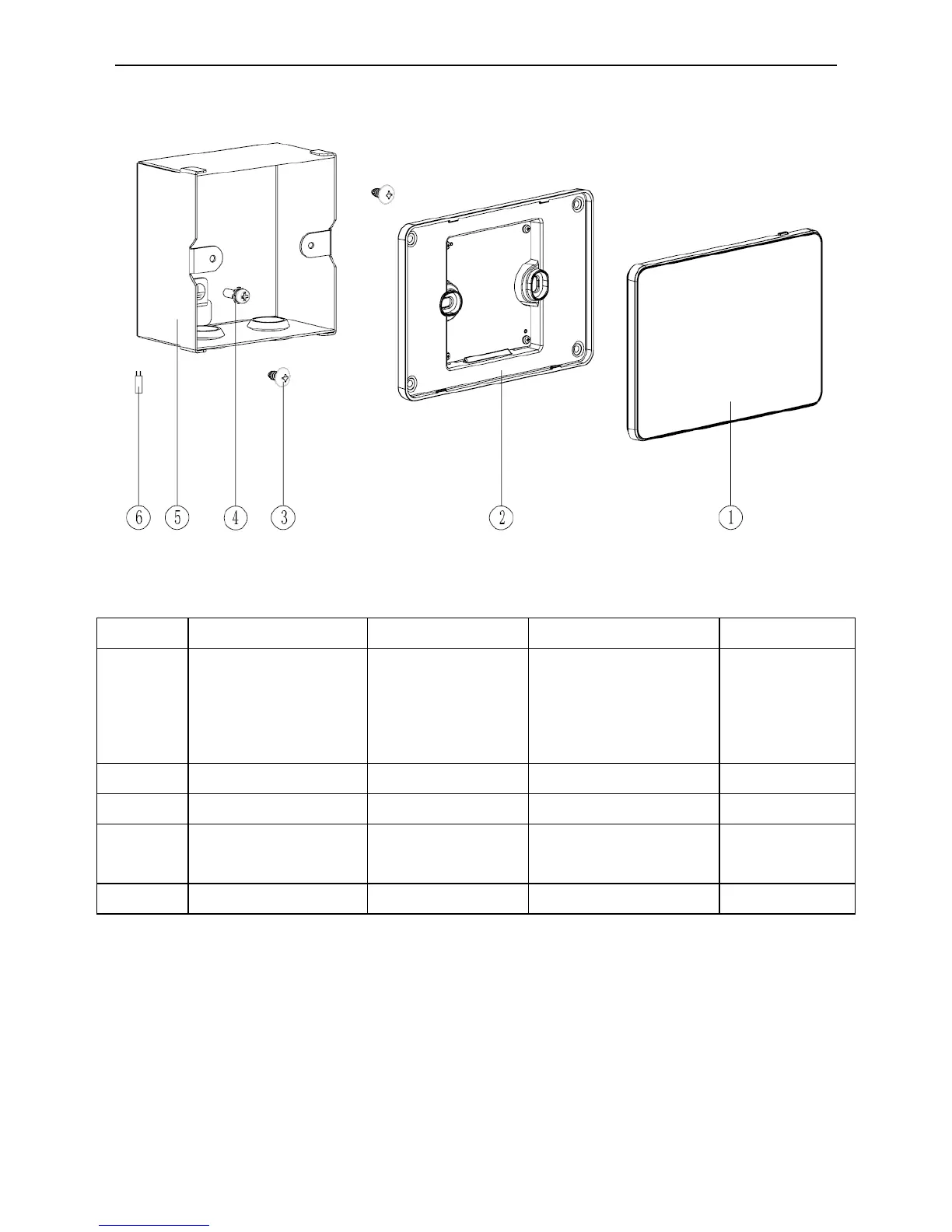

Fig.1.1 Parts of Centralized Controller
No.
①
②
③
④
Name
Touch screen of
controller
Rear cover of
controller
Self-tapping screw
ST4.2×9.5 MC
(Used to secure the
rear cover of
controller)
Screw
M4×12 (used
to secure
ground wire)
QTY
1
1
2
1
No.
⑤
⑥
Name
Wiring box
installed in wall
Matching
resistance
QTY
1
1
Unit: mm
