Gree DUCT09HP230V1BD - PCB Printed Diagram

8
Technical Information
Service Manual
1
2
Interface of dry contact
3
Wired controlller terminal
4
Dispaly
5
Jumper cap
6
7
8
Water overflow protection
9
Interface of tube temperature sensor
10
Interface of ambient temperature
sensor
11
Water pump
12
Terminal with indoor unit communication
13
Neutral wire terminal
14
Fuse
Live wire terminal
Neutral wire terminal
12 3
4
5678
910
11
12
13
14
Wiring terminal for DC motor

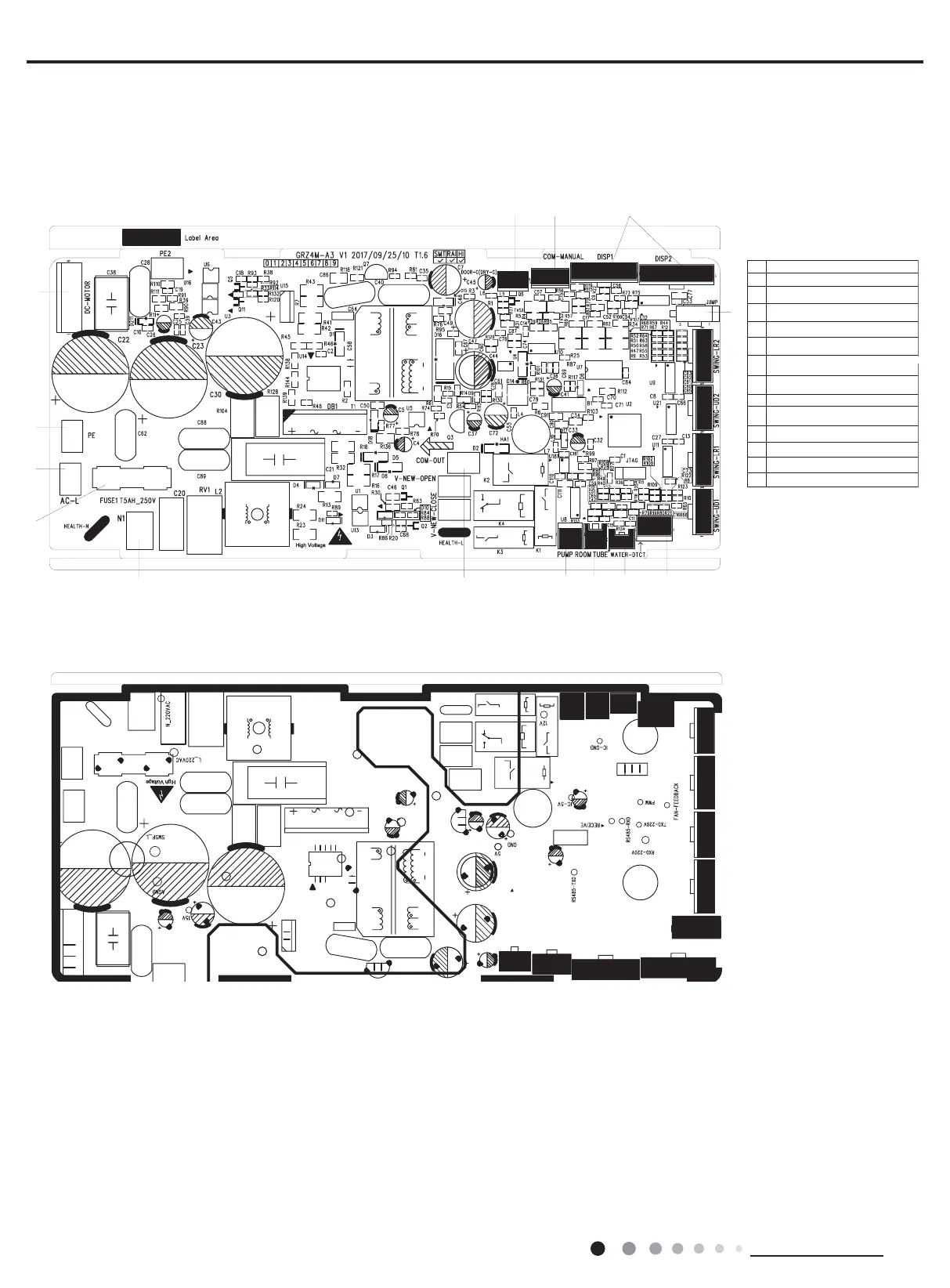

5.2 PCB Printed Diagram
●
TOP VIEW
●
BOTTOM VIEW
