Gree FP-136WM-D Service Manual

33
Floor Ceiling Type Fan
Coil Unit Service Manual
②

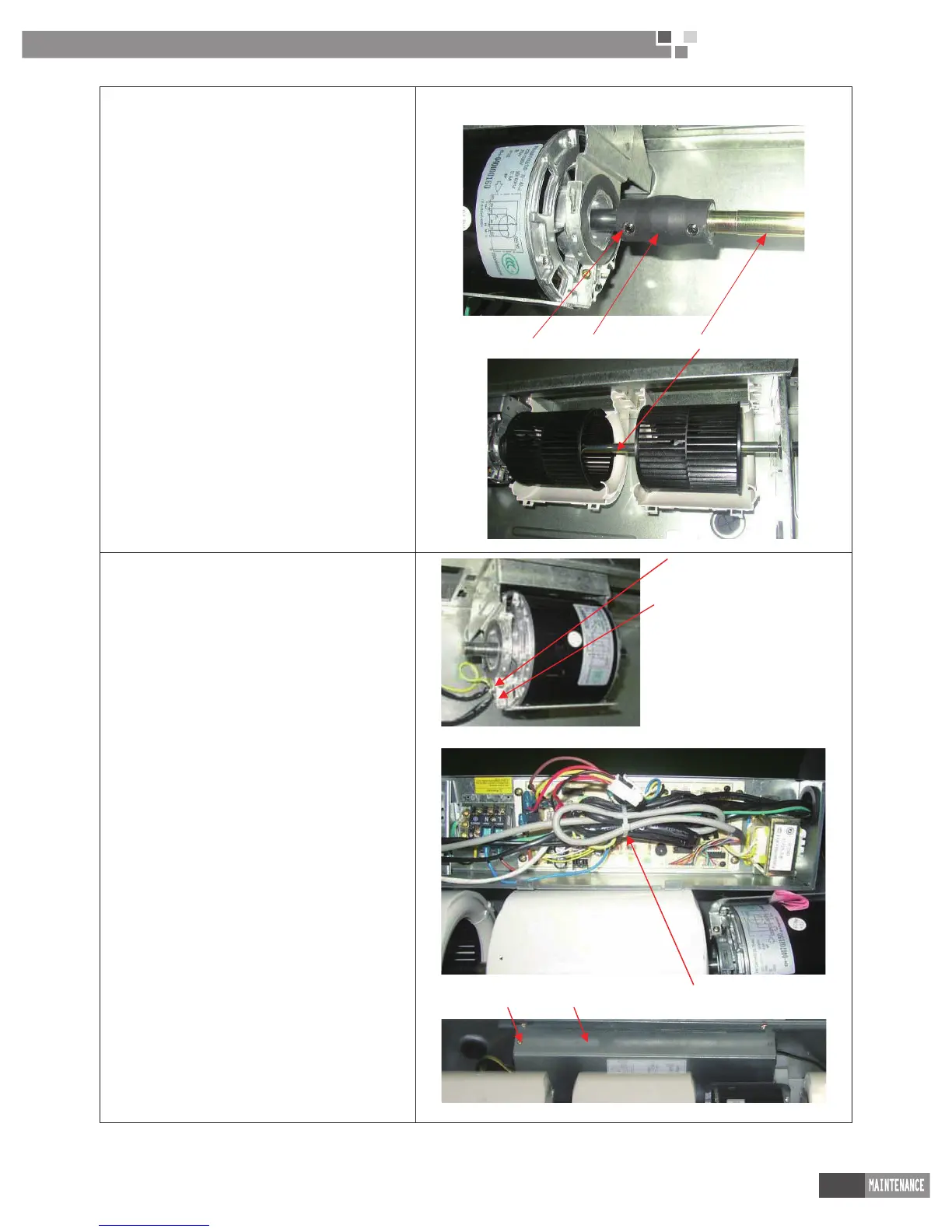

.Remove propeller
Remove the propeller as 5.1
①
and 5.1
Remove rotate shaft sub-assy and shaft coupling
Loosen the xing screws on shaft coupling.
Separate the shaft coupling and rotate shaft from the
motor shaft.
Fixing screw Shaft coupling
Rotate shaft sub-assy
③
.Remove motor
Loosen the xing screw on motor, to remove the motor
clamp assy.
Loosen the xing screw on electric box, to remove the
electric box cover.
Remove the motor contact tag from wiring board and
capacitor of electric box.
Cut off the wiring harness, take out the motor wirings
and remove the motor.
Motor fixing screw
Motor clamp assy
Tapping screw Electric box cover Wiring harness
