Super Free Match
Service Manual
PRODUCT
22
6 PIPING DIAGRAM

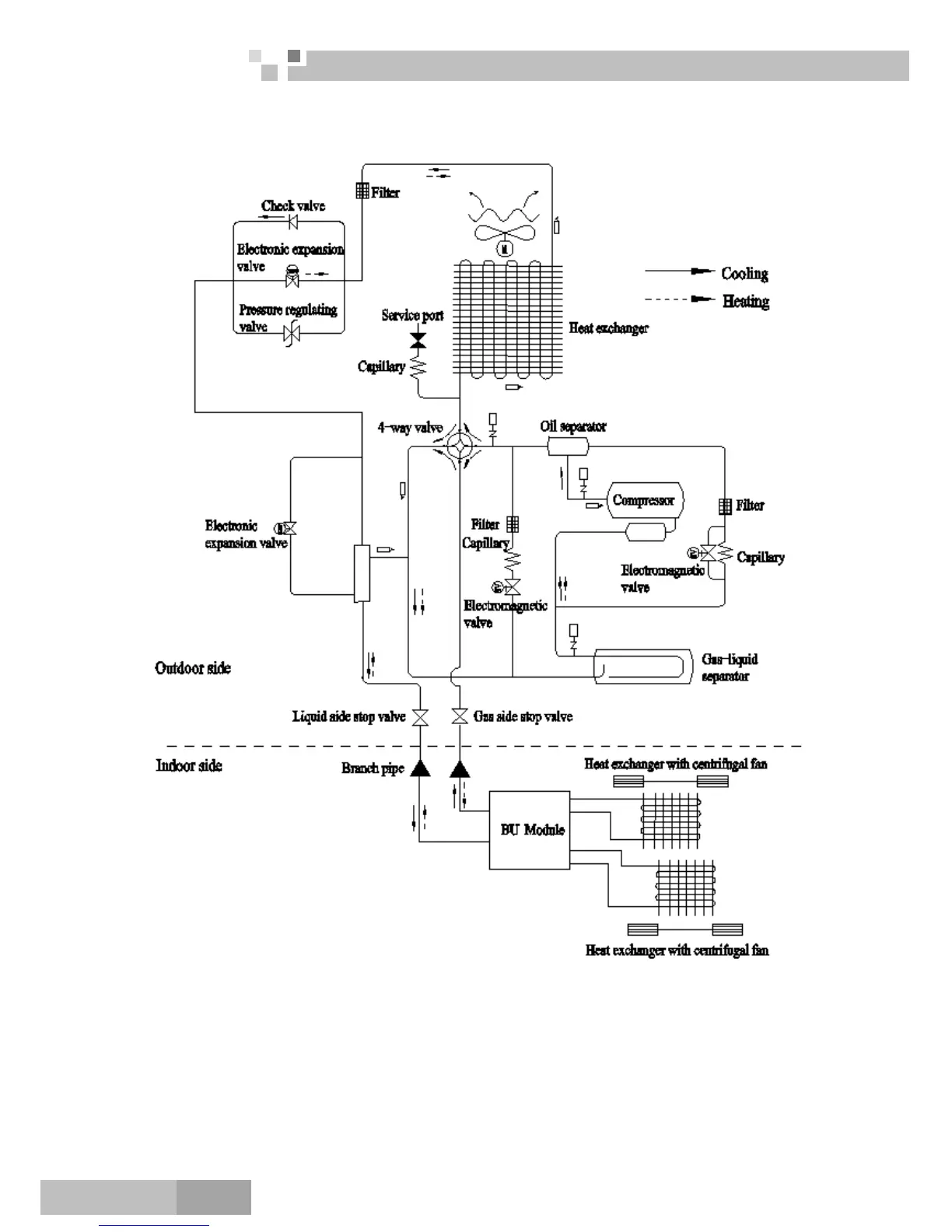

Schematic Diagram of Super Free Match Series Inverter Heat Pump Multi System
The units start to work once the power is switched on. During the cooling operation, the low temperature,
low pressure refrigerant gas from the heat exchanger of each indoor unit gets together and then is taken into the
compressor to be compressed into high temperature, high pressure gas, which will soon go to the heat exchanger
of the outdoor unit to exchange heat with the outdoor air and then is turned into refrigerant liquid. After passing
through the BU module, the temperature and pressure of the refrigerant liquid will further decrease and then go
the main valve. After that, it will be divided and go to the heat exchanger of each indoor unit to exchange heat
with the air which needs to be conditioned. Consequently, the refrigerant liquid become low temperature, low
