Super Free Match
Service Manual
MAINTENANCE
210

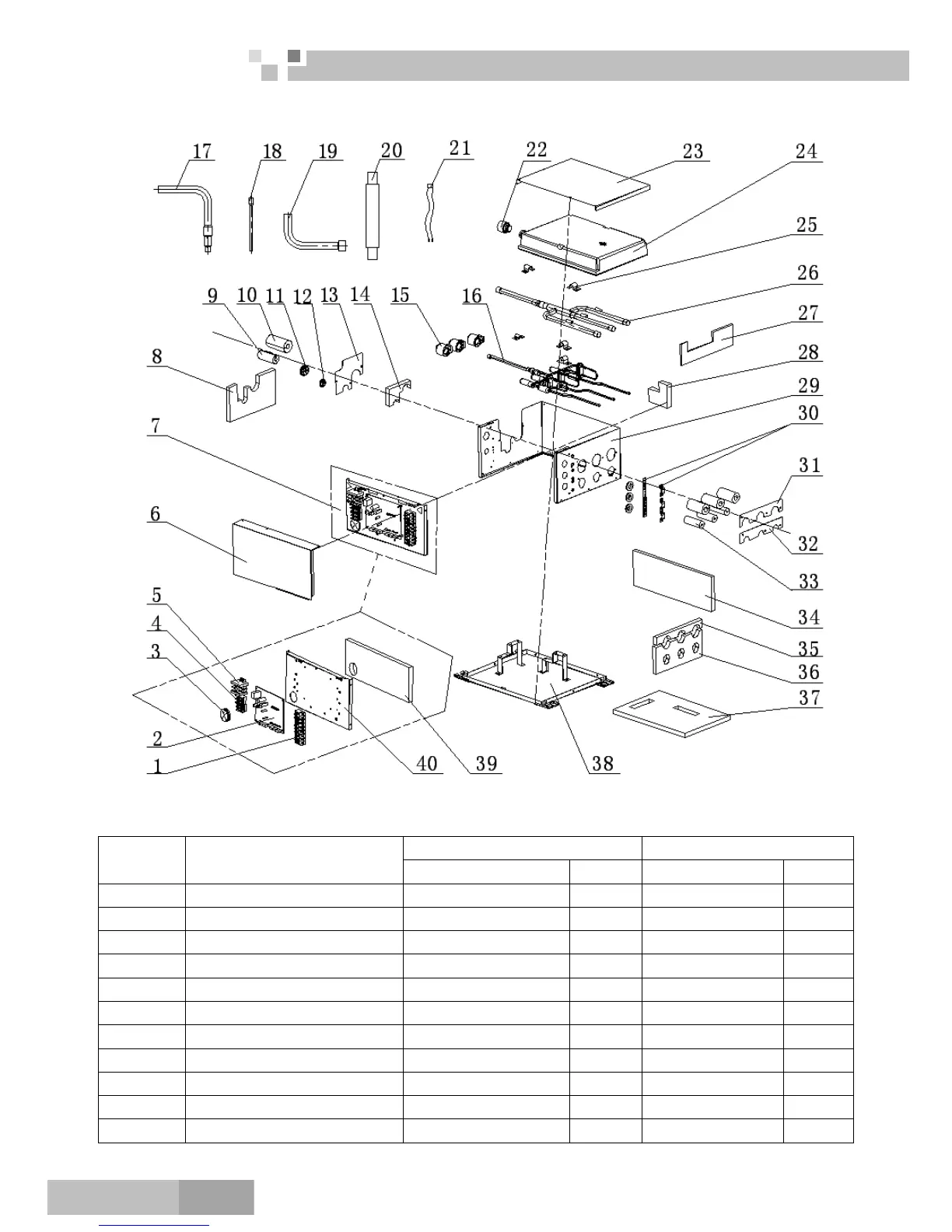

7.3 BU Module
FXA2B-K; FXA3B-K
Part list:
FXA2B-K for LN01300200; FXA3B-K for LN01300210
FXA2B-K FXA3B-K
NO. Description
Code Qty Code Qty
1 Terminal Board 420111041 2 420111041 3
2 Main Board 30276000002 1 30276000002 1
3 Rubber Ring 76515202 1 76515202 1
4 Terminal Board 42011154 2 42011154 2
5 Terminal Board 420111451 1 420111451 1
6 Electrical Equipment Plate 01424731P 1 01424731P 1
7 Electric Box Sub-assy 01324100030 1 01324100030 1
8 Sponge(Coping plate) 12204437 1 12204437 1
9 Heat Insulation Pipe 2 7509410000601 1 7509410000601 1
10 Heat Insulation Pipe 1220552703 1 1220552703 1
11 Rubber Ring 76510031 1 76510031 1
To Next Page
