GMV DC Inverter VRF
7

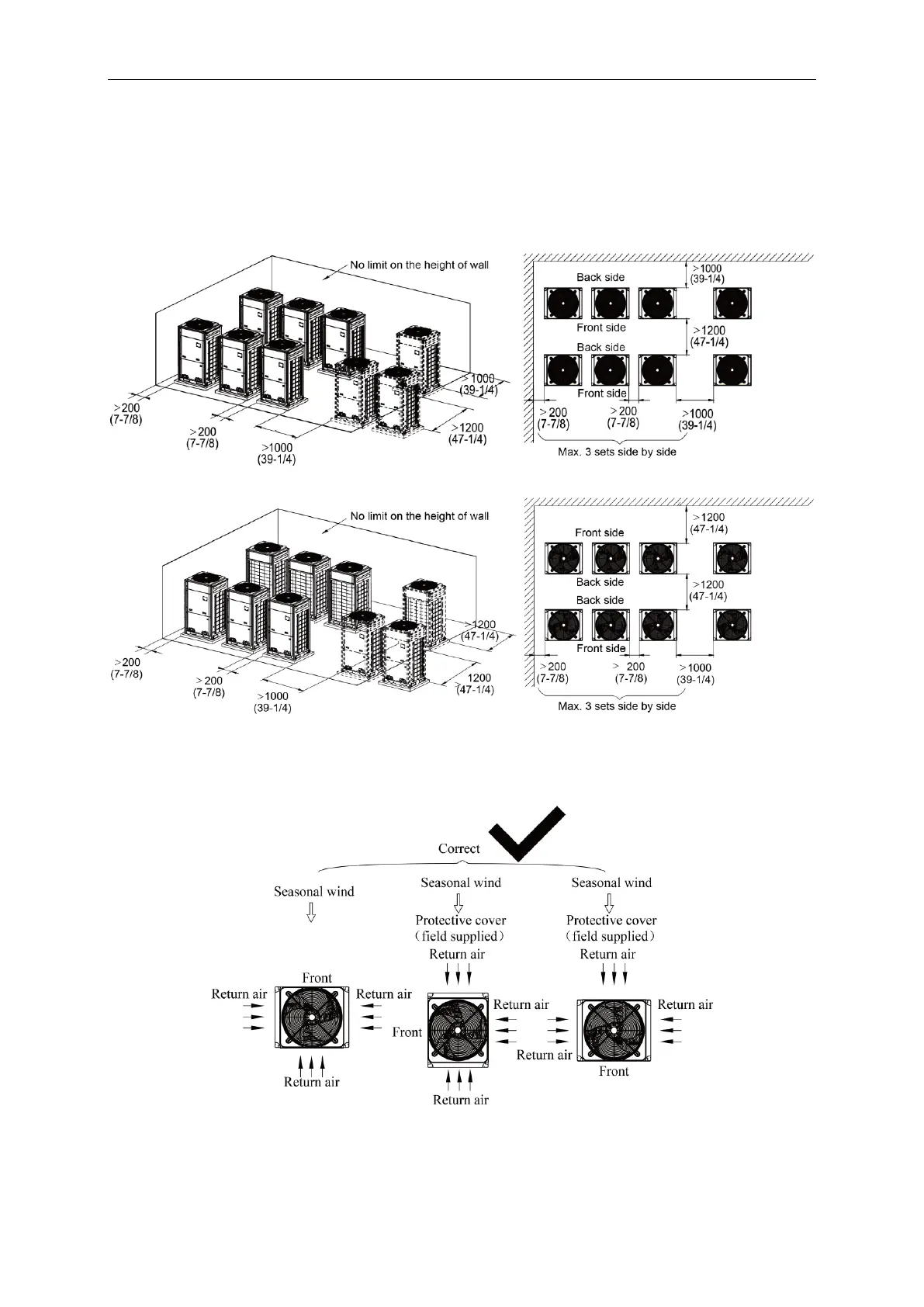

3.2.3 Space dimension for multiple-module unit
For keeping good ventilation, make sure there is no obstruction above the unit.
When the unit is located at a half-open space (front and left/right side is open), install the unit
as per the same or opposite direction.
Unit: mm (in.)
Fig.8
Fig.9
3.2.4 Considering the seasonal wind in outdoor unit installation
Anti-monsoon installation requirement for unit not connecting exhaust duct
Fig.10
