GMV DC Inverter VRF
6

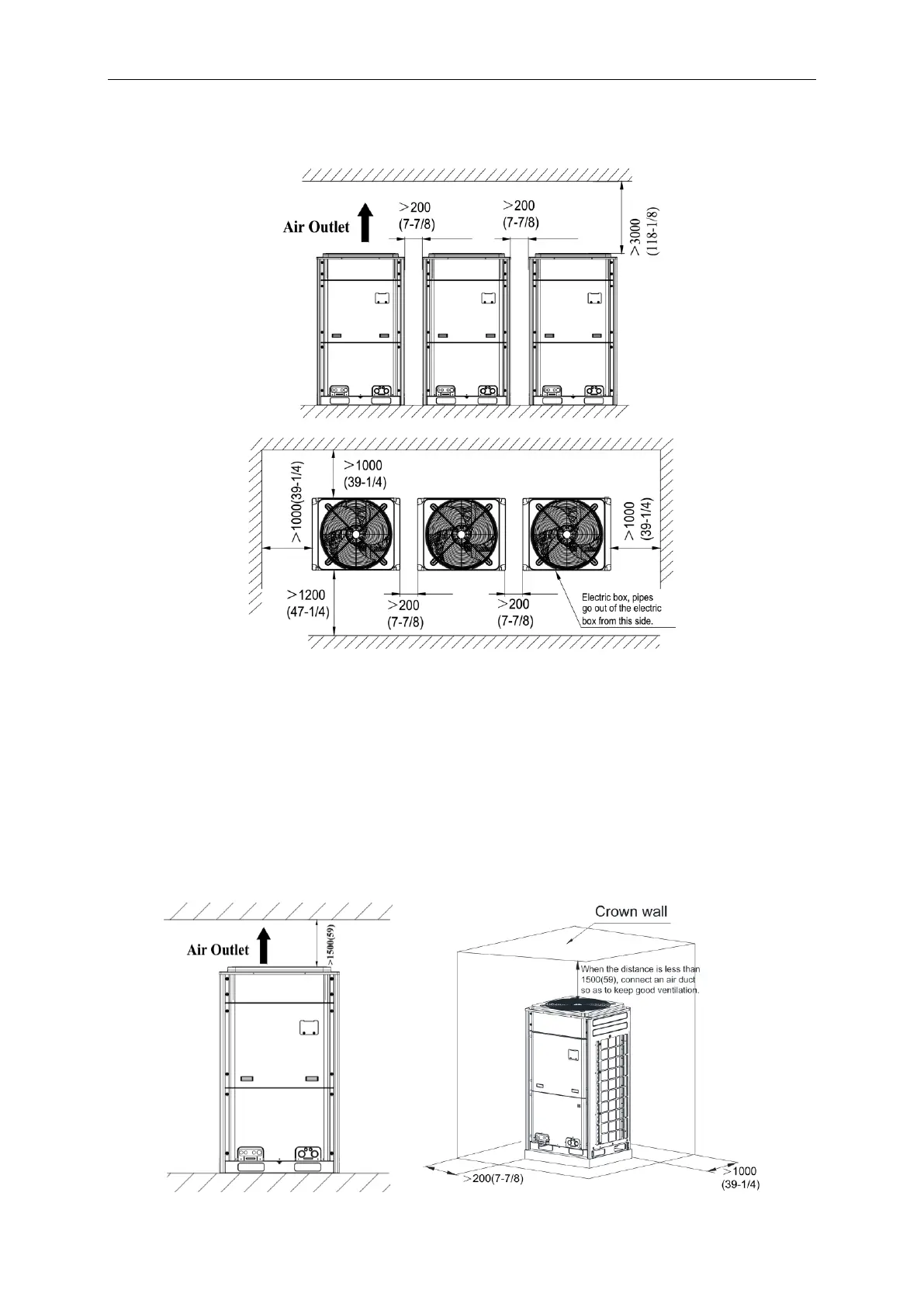

3.2.1.3 Space dimension for three-module unit
Unit: mm (in.)
Fig.5
3.2.2 Space dimension for outdoor unit top
When there is wall (or similar obstruction) above the unit, keep the distance between the unit
top and the wall at least 3000mm (118-1/8in.) or above. When the unit is located in a totally open
space with no obstructions in four directions, keep the distance between the unit top and wall at
least 1500mm (59in.) or above (See Fig.6). When space is limited within 1500mm (59in.) or the
unit is not set in an open space, air outlet pipe is required to be installed in order to keep good
ventilation (See Fig.7).
Unit: mm (in.)
Fig.6 Fig.7
