DC Inverter Multi VRF System User Manual
9
Fig.6

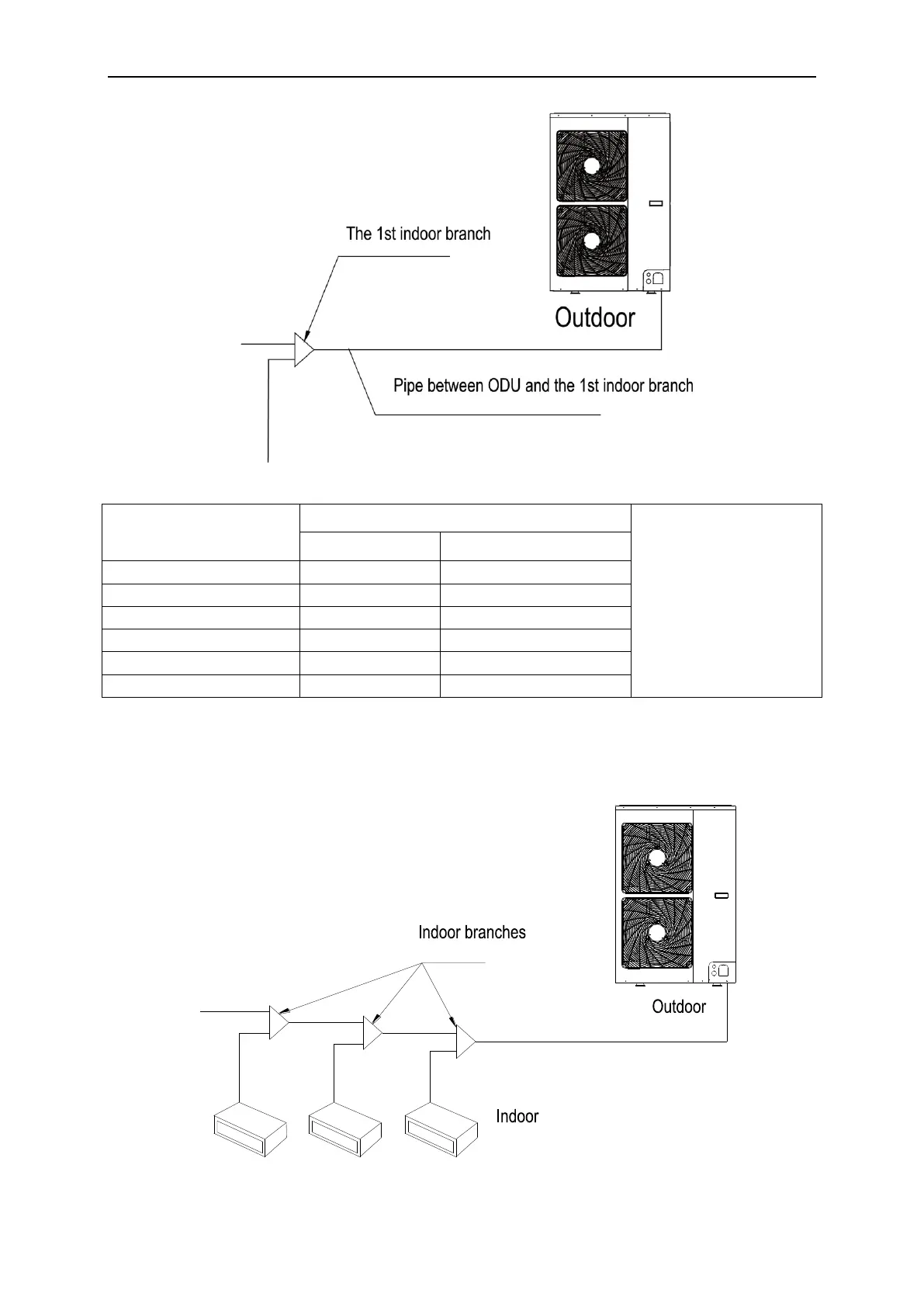

Dimension of outdoor connection pipe
Basic module
Pipe dimension
Connection method
Gas pipe (mm)
Liquid pipe（mm）
GMV-120WL/A-T
φ15.9
φ9.52
GMV-140WL/A-T
φ15.9
φ9.52
GMV-160WL/A-T
φ19.05
φ9.52
GMV-120WL/A-X
φ15.9
φ9.52
GMV-140WL/A-X
φ15.9
φ9.52
GMV-160WL/A-X
φ19.05
φ9.52
4.2.4 Selection of Indoor Branches
Select indoor branches according to the total capacity of downstream indoor units. If the
capacity exceeds that of the outdoor unit, capacity of outdoor unit prevails.
Fig.7
