of the pipe, then set the unit in cooling startup and fill refrigerant from the low pressure check valve
of the outdoor unit.
(3) Calculation example

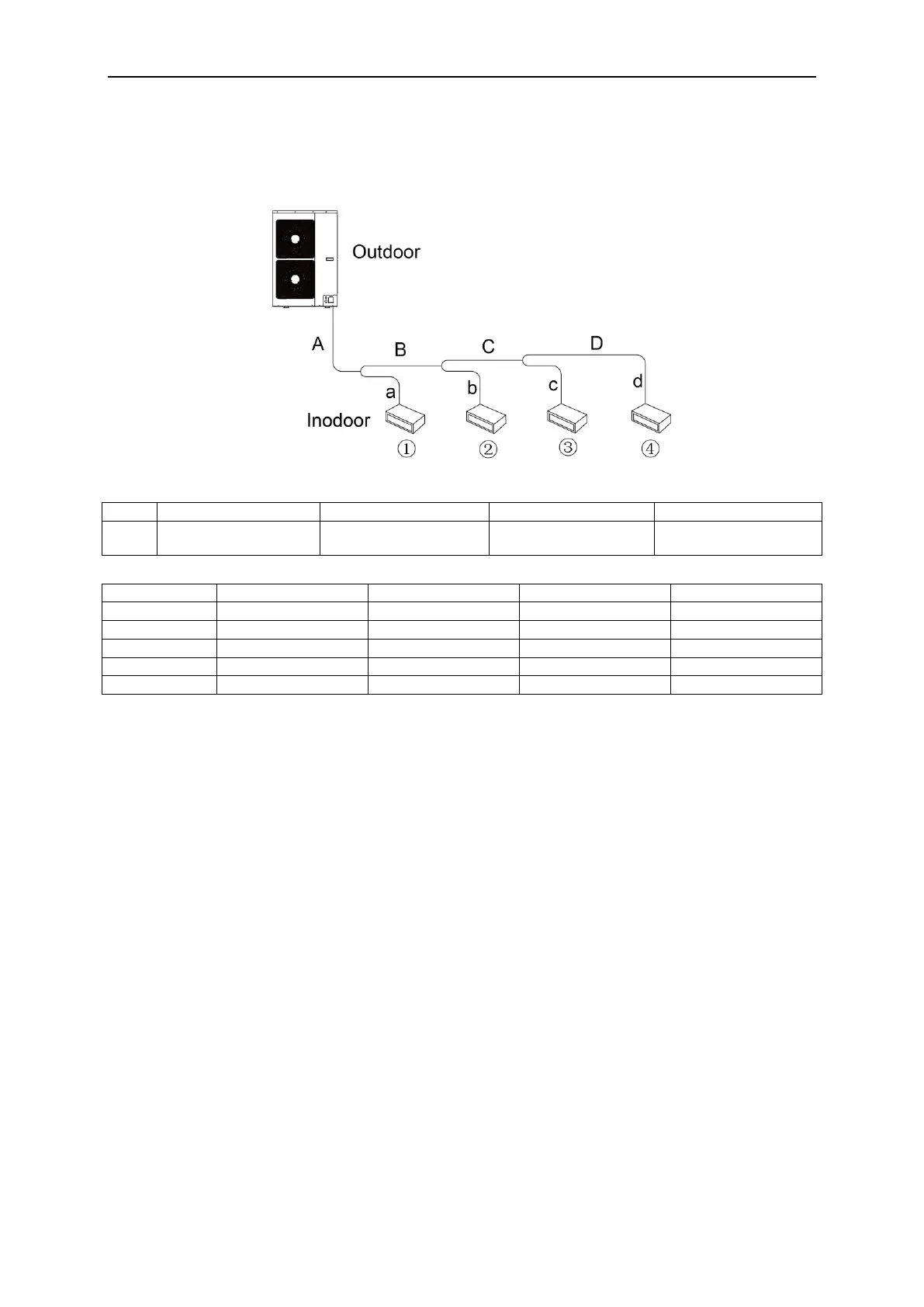

Fig. 21
IDU
Liquid pipe:
Total length of each liquid pipe
φ9.52：A+B+C+a=10+105+5+3=23m
φ6.35: D+b+c+d=5+3+2+1=11m
Note: Liquid pipe that is within 20m doesn’t need to be added with refrigerant.
Therefore, the minimum quantity of additional refrigerant = (23-20)×0.054+11×0.022＝0.404kg
4.6 Electric Wiring
4.6.1 Notices for Wiring
☆Install units according to national wiring codes.
☆Use air conditioner specialized power supply and make sure that it is consistent with
system’s rated voltage.
☆Do not pull the power cord with force.
☆All electrical installation must be performed by qualified technicians in accordance with local
laws, regulations and this user manual.
☆Caliber of the power cord must be large enough. A damaged power cord or connection wire
must be replaced by specialized electrical cords.
☆If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard;
☆A circuit breaker having a contact separation of at least 3mm in all poles should be fixed in
