Gree GMV-24WL/C-T User Manual

DC Inverter Multi VRF System
5
Unit: mm/inch
Model A B C D E
GMV-24WL/C-T(U)
GMV-28WL/C-T(U)
980
(38-6/19)
360
(14-3/16)
790
(31-2/16)
650
(25-3/5)
395
(15-5/9)
4.2 Connection Pipe

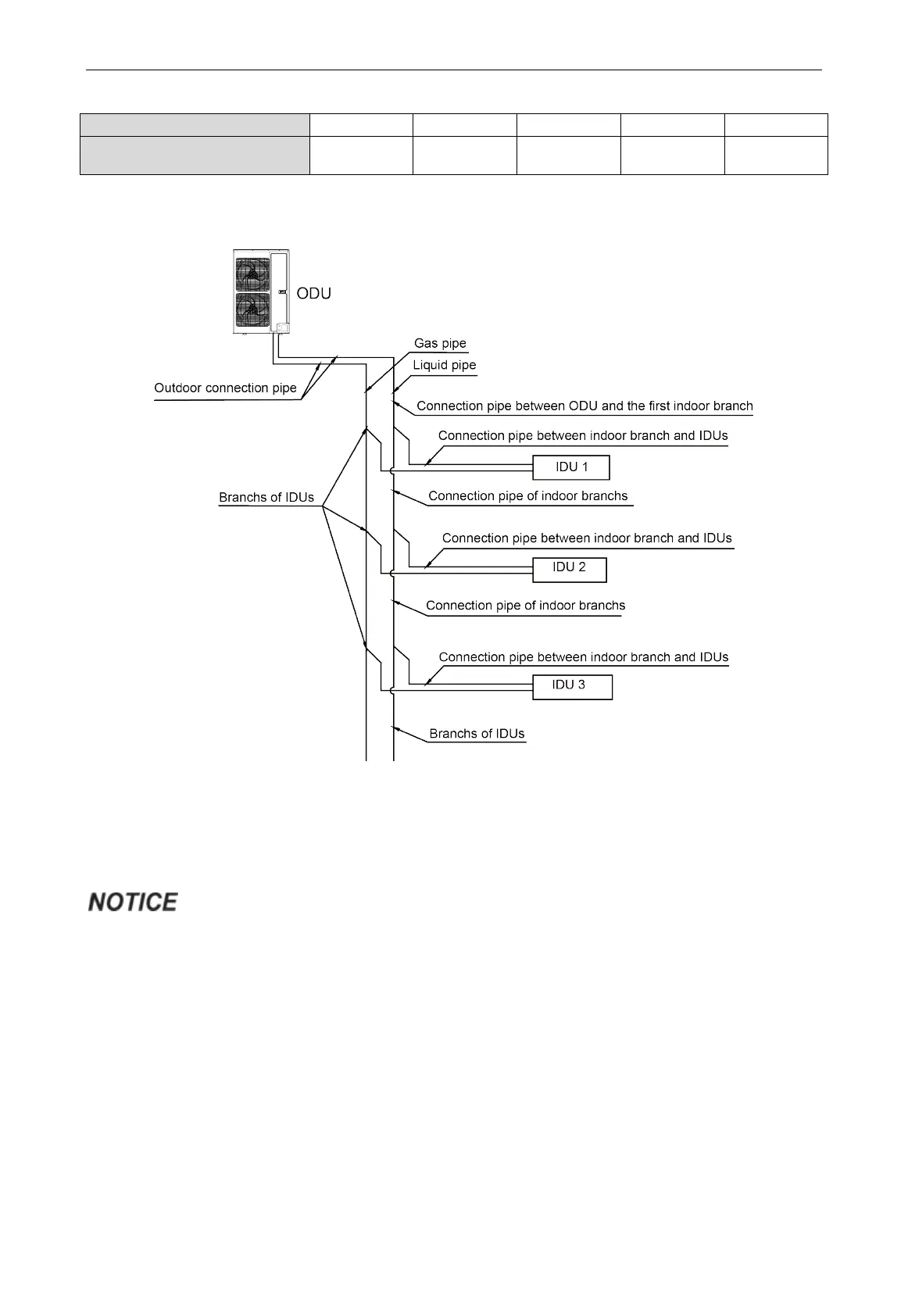

4.2.1 Schematic Diagram of Piping Connection
Fig.4
4.2.2 Allowable Length and Height Difference of Connection Pipe
Y type branch joint is adopted to connect indoor and outdoor units. Connecting method is shown
in the figure below:
Equivalent length of one Y-type branch is 0.5m(1-5/8feet).
