Gree GMV-280WM/H-X

GMV DC Inverter VRF
13
No. Name
Pipe diameter
GMV-224WM/H-X GMV-280WM/H-X GMV-335WM/H-X
①
Gas pipe
Φ19.05
Φ22.2
Φ25.4
②
Liquid pipe
Φ9.52
Φ9.52
Φ12.7
③
Pipe and wiring passing hole
(L
×
W)
196
×
69
196×69 196×69
④
Hoist hole Φ50 Φ50 Φ50

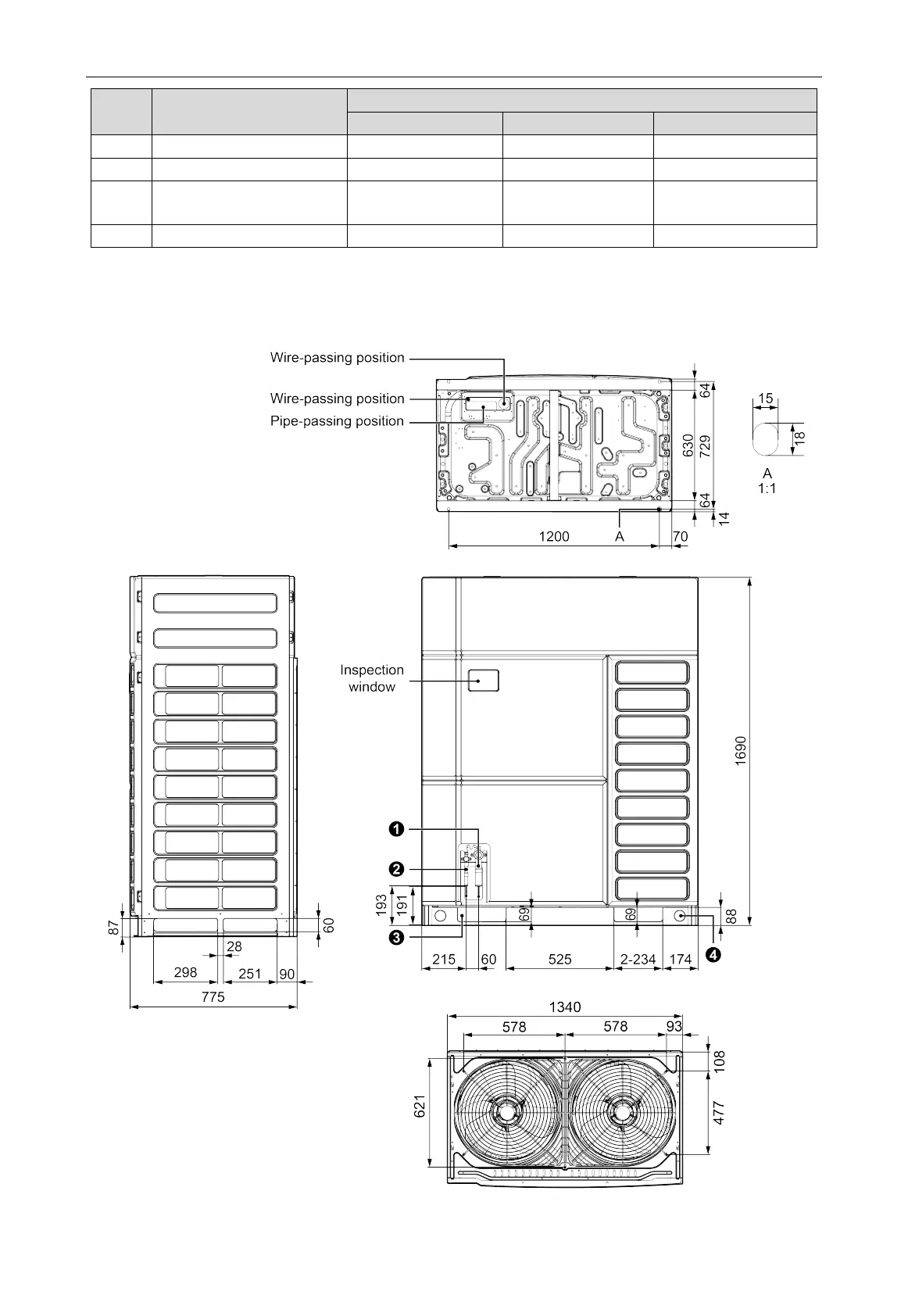

Outline and Physical Dimension of GMV-400WM/H-X,GMV-450WM/H-X,GMV-504WM/H-X
，
GMV-560WM/H-X
，
GMV-615WM/H-X unit.
Unit: mm
Fig. 3.2.2
