GMV DC Inverter VRF
18
Status 4
a≥300
b≥100
c≥100
d≥100
e≥200
——
Status 5
a≥300
b≥500
c≥100
d≥500
e≥200
——
NOTE!

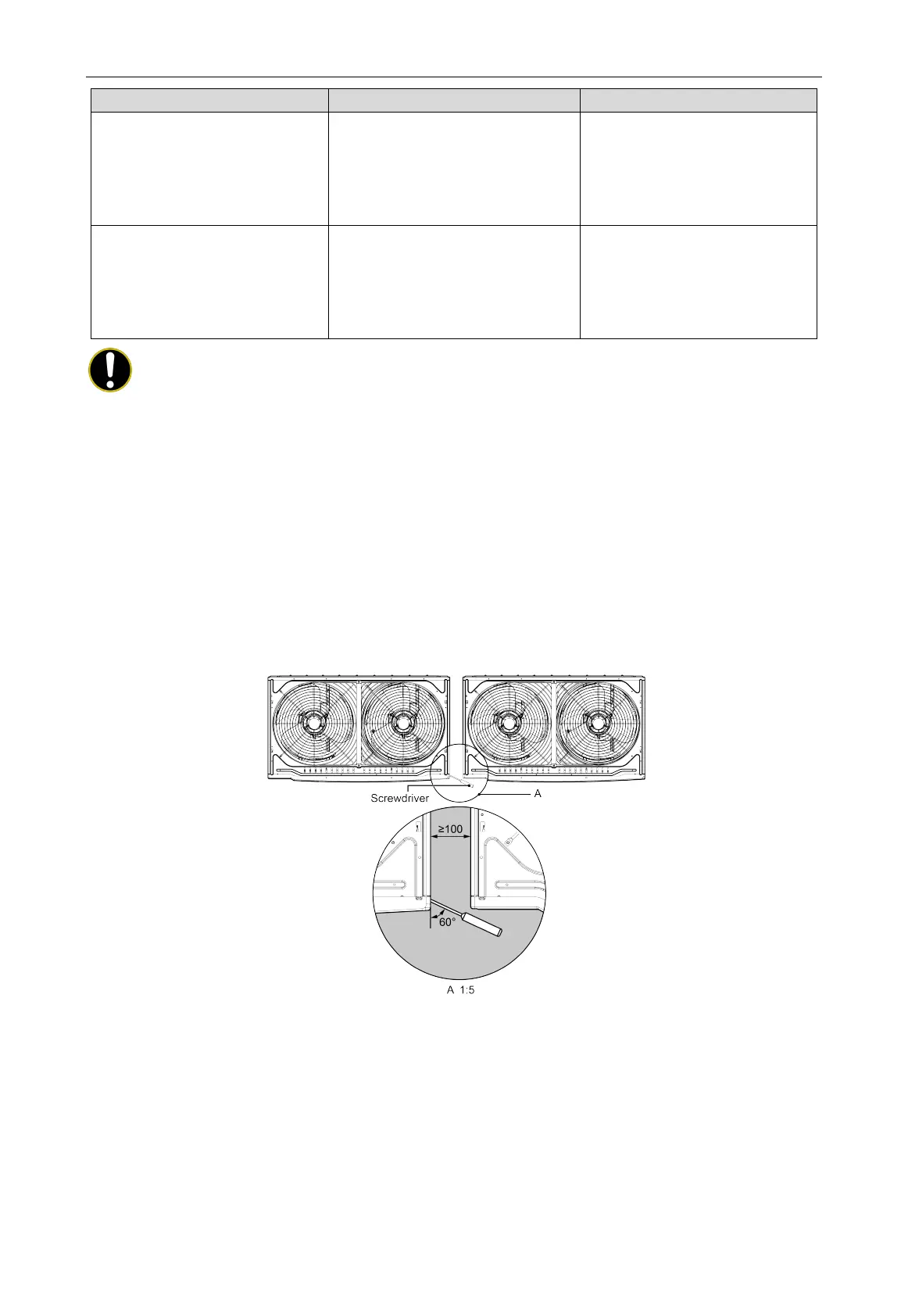

(1) The installation space shown above is based on the cooling operation when the outdoor
temperature is 35
℃
. If the outdoor temperature exceeds 35
℃
or the heat load is large, and
all outdoor units are operating at an excess capacity, the space at the suction side should be
increased.
(2) When disassembling or installing the unit, the operation may be affected by obstacles, and
the distance from the unit to the wall surface may be appropriately increased.
(3) When two or more units are installed and placed, the operation may be affected by the
adjacent units. The distance between the two adjacent units is “e” ≥ 100mm.
Unit
：
mm
Fig. 3.2.7
(4) When the unit is installed in place around by walls, the height of left and right side walls is
not limited; the height of air inlet side wall is below 500mm, and the height of front side wall
is below 1500mm.
