Fig. 3.3.4
Fig. 3.3.5
Fig. 3.3.6

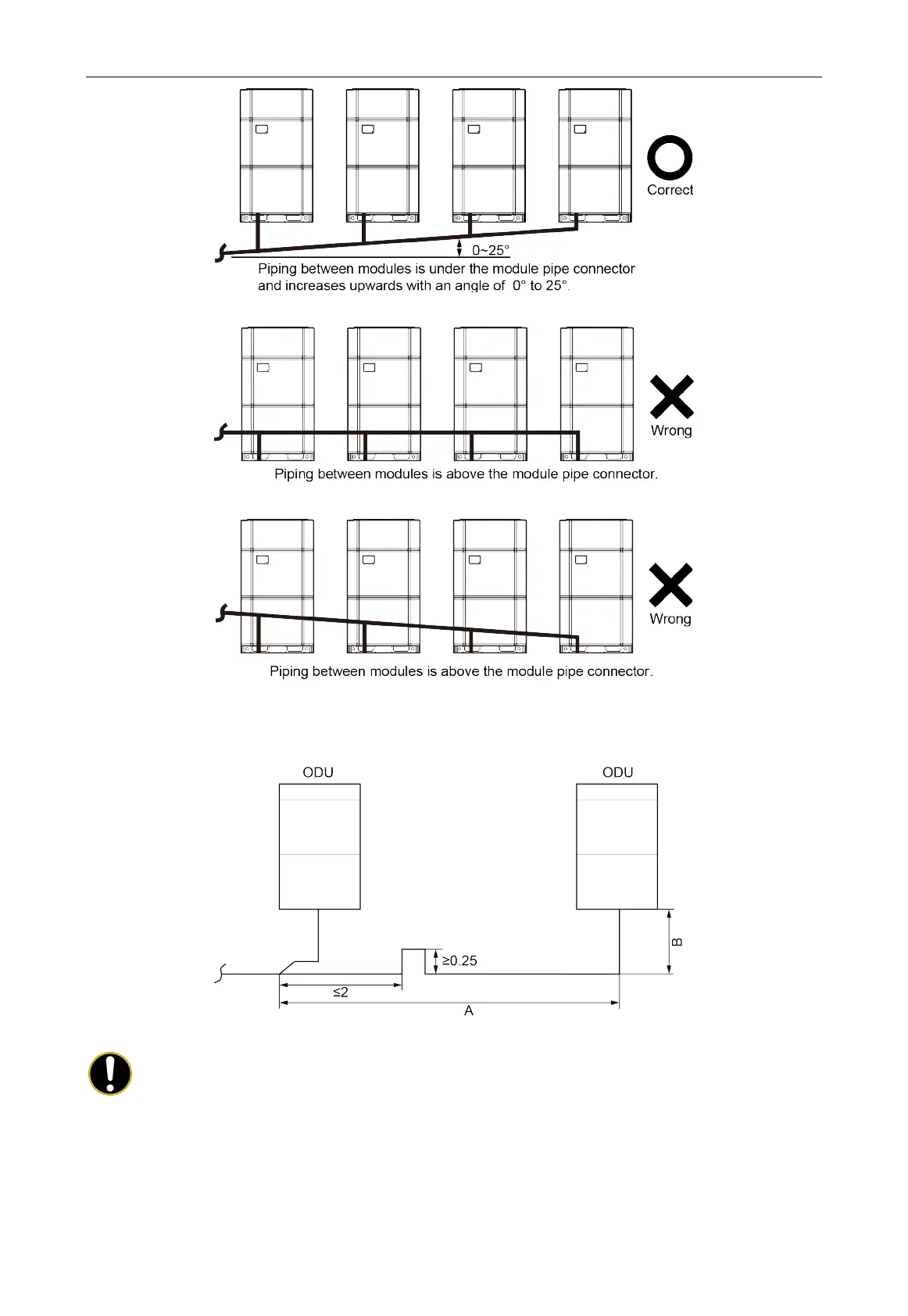

(2) The drop and the length of the pipe between the outdoor units are as follows.
Unit:m
Fig. 3.3.7
NOTE!
When the distance A+B between the outdoor modules exceeds 2m, U-type oil trap should be
added at low-pressure gas pipe and is no more than 2m away from the outdoor manifold, and
A+B≤10m. The height drop among the outdoor units is 0m.
