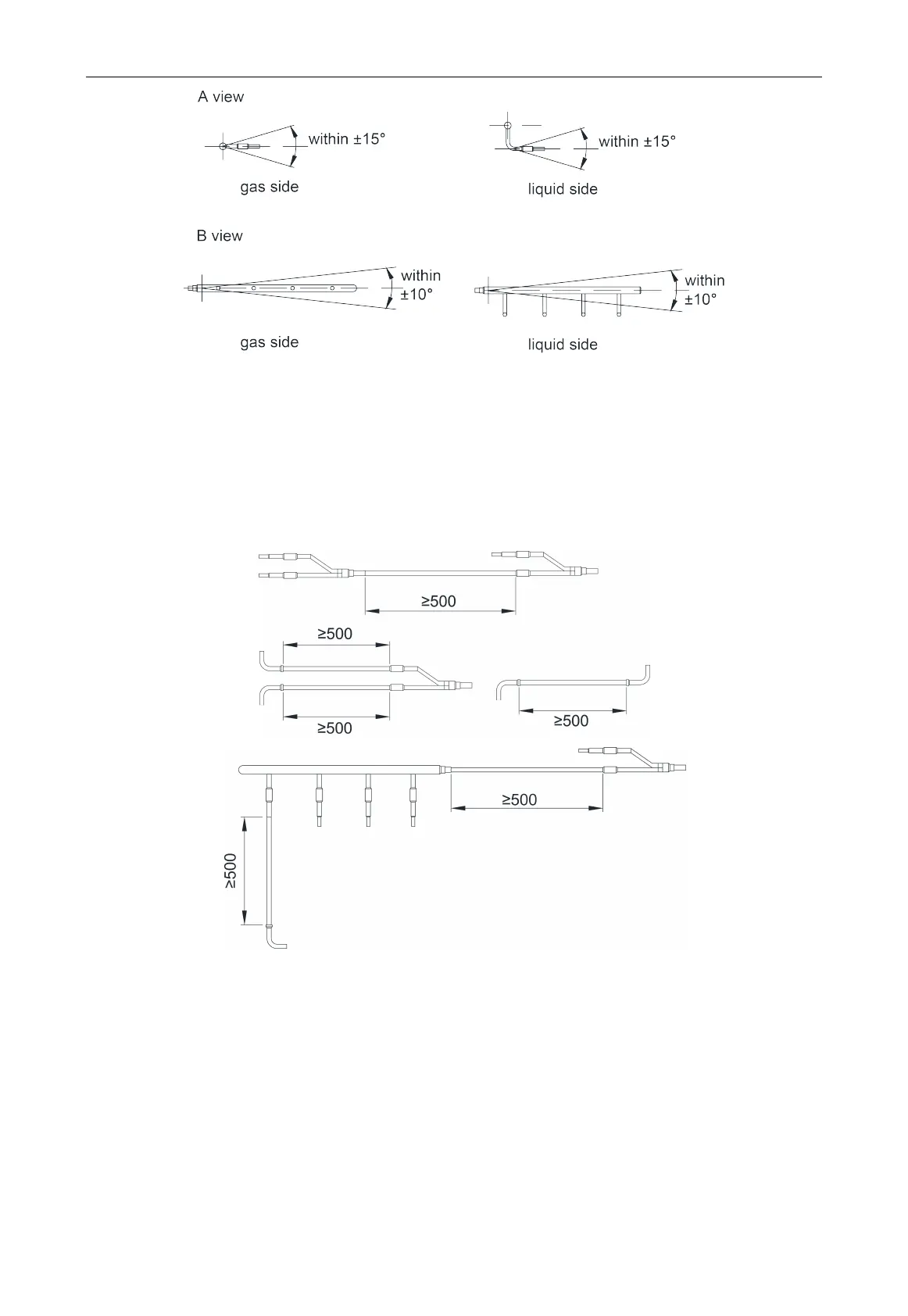

Fig. 3.4.4(b)
4) The length of a straight pipe between two manifolds cannot be less than 500 mm.
5) The length of a straight pipe before the main pipe port of the manifold cannot be less
than 500 mm.
6) The length of a straight pipe between the branch of the manifold and the IDU cannot be
less than 500 mm.
Unit:mm
Fig. 3.4.5
3.4.3 Fixation of Manifold
(1) There must be three fixing point for both horizontal and vertical installation of the Y-type
manifold.
Fixing point 1: 100 mm on the main inlet manifold from the welding point.
Fixing point 2: 200 mm on the main branched pipe from the welding point.
Fixing point 3: 250 mm on the branched pipe from the welding point.
