Gree GMV-335WL/C1-X

DC Inverter Multi VRF System
6
3.3 Piping Work Requirements
Refer to the table below for piping work requirements:
R410A Refrigerant System
Outer diameter (mm/inch)
Wall thickness(mm)
Φ6.35(1/4)
≥0.8
Φ9.52(3/8)
≥0.8
Φ12.7(1/2)
≥0.8
Φ15.9(5/8) ≥1.0
Φ19.05(3/4)
≥1.0
Φ22.2(7/8)
≥1.2
Φ25.4(8/8)
≥1.2
4 Installation Instruction
NOTE:
Graphics here are only for reference. Please refer to actual products. Unspecified
dimensions are all in mm.

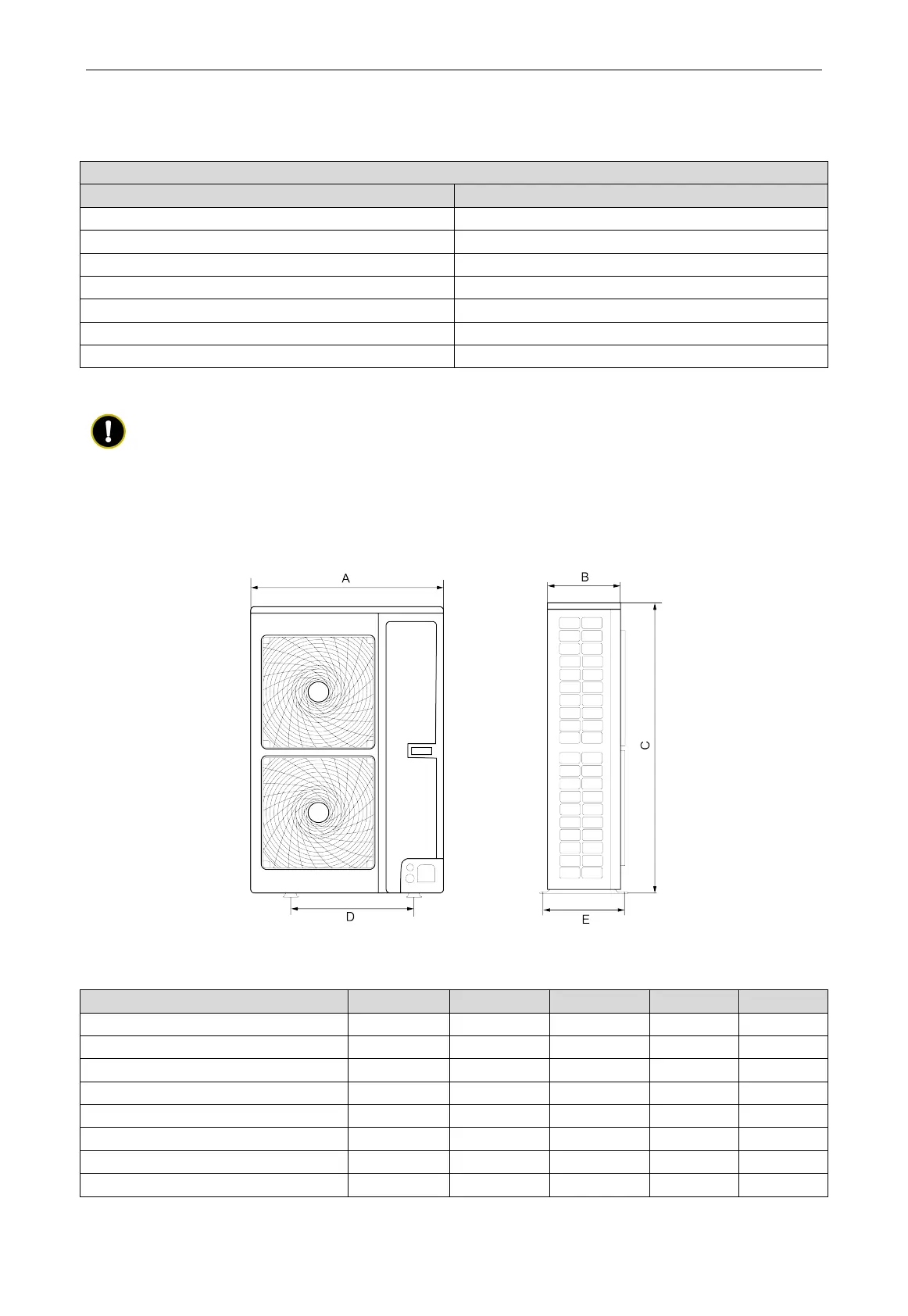

4.1 Dimension of Outdoor Unit and Mounting Hole
Unit Outline and Installation Dimension(mm).
Fig.4.1
Unit: mm
Model
A
B
C
D
E
GMV-H224WL/A-X
940
320
1430
632
350
GMV-H280WL/A-X
940
460
1615
610
486
GMV-H335WL/A-X
940
460
1615
610
486
GMV-224WL/C-X
940
320
1430
632
350
GMV-280WL/C-X
940
460
1615
610
486
GMV-335WL/C-X
940
460
1615
610
486
GMV-280WL/C1-X
940
460
1615
610
486
GMV-335WL/C1-X
940
460
1615
610
486
