Gree GMV6 DC Inverter VRF Units Service Manual
190
The power supplies of the compressor and fan comprise the following
three parts:
① The specifications of the input power are 380V-415V 3N~ 50Hz/60Hz+
neutral line and earth line.
② The drive board can convert AC power to DC power of about 540 V
(1.41 x power voltage).
③ DC-AC three-phase inverter.
Use of power to the main control board:
① Phase protection.
② Providing 220V AC power for the solenoid valve coil and 4-way valve coil.
③ Generating the low-voltage DC power.

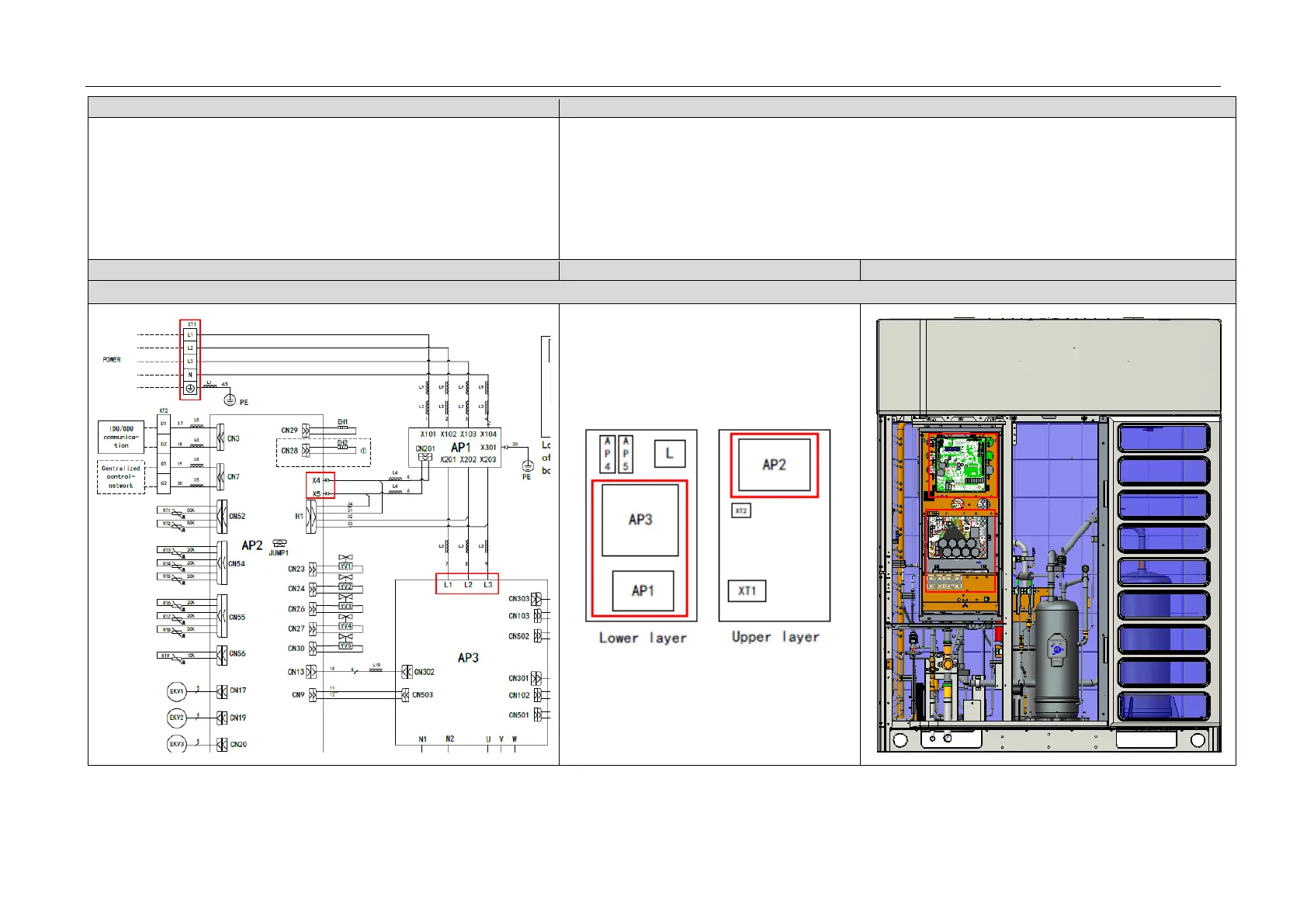

Layout of electrical appliance box
Models: GMV-400WM/G-X, GMV-450WM/G-X, GMV-504WM/G-X
