Gree GMV-36WL/A-T(U) - Installation of Electronic Expansion Valve Assy (Unit with External Exv); Installation of Refrigerant Pipeline

DC Inverter Side Discharge VRF Ⅱ for North America
71
4 Installation of Electronic Expansion Valve Assy (unit with
external EXV)
The EXV of indoor unit is built-in.
5 Installation of Refrigerant Pipeline
5.1Allowable Length and Height Difference of Connection Pipe

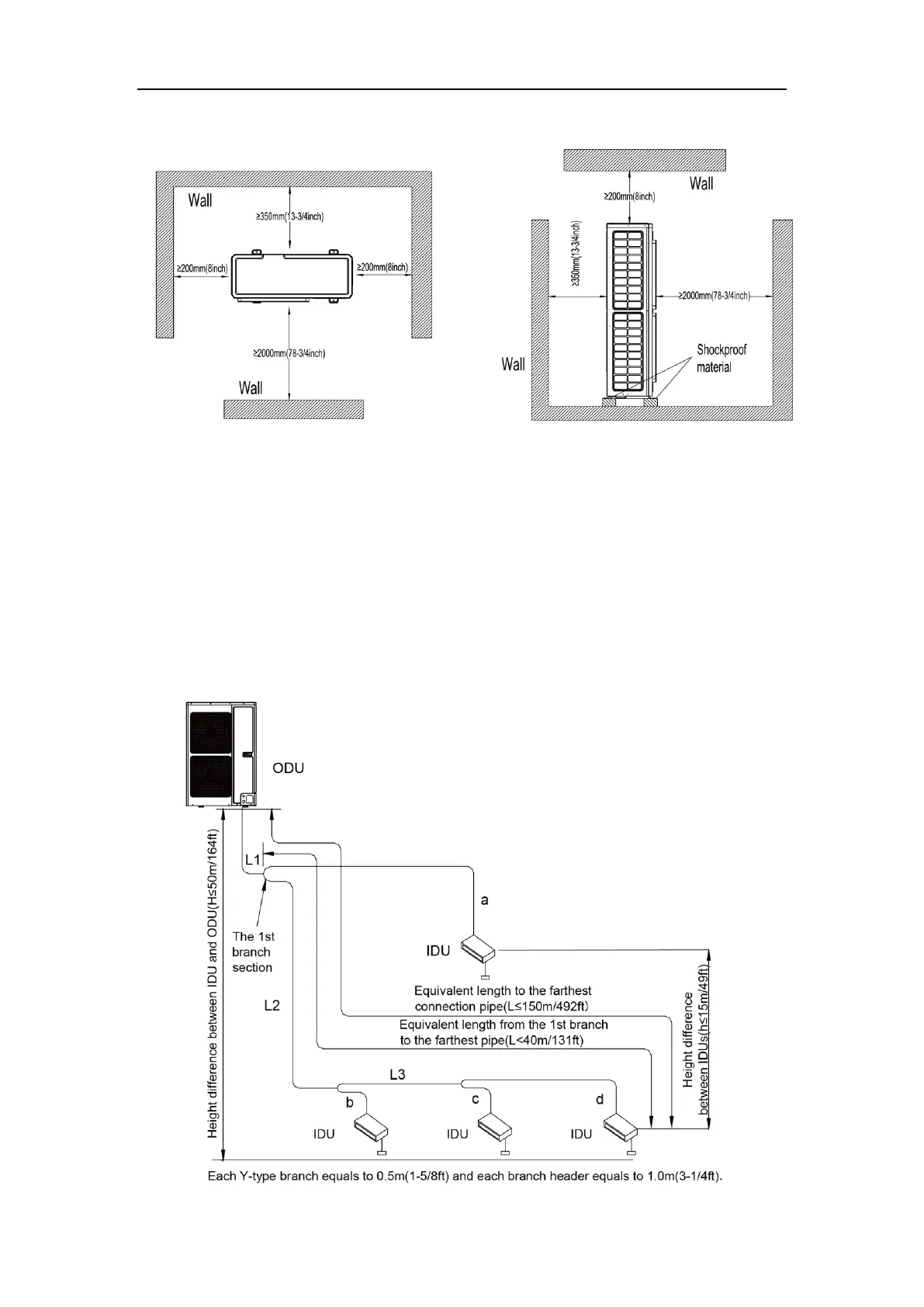

Y type branch joint is adopted to connect indoor and outdoor units. Connecting
method is shown in the figure below:
NOTICE! Equivalent length of one Y-type branch is 0.5m(1-5/8feet).
Allowab
