Flared nut
Liquid pipe
Gas pipe

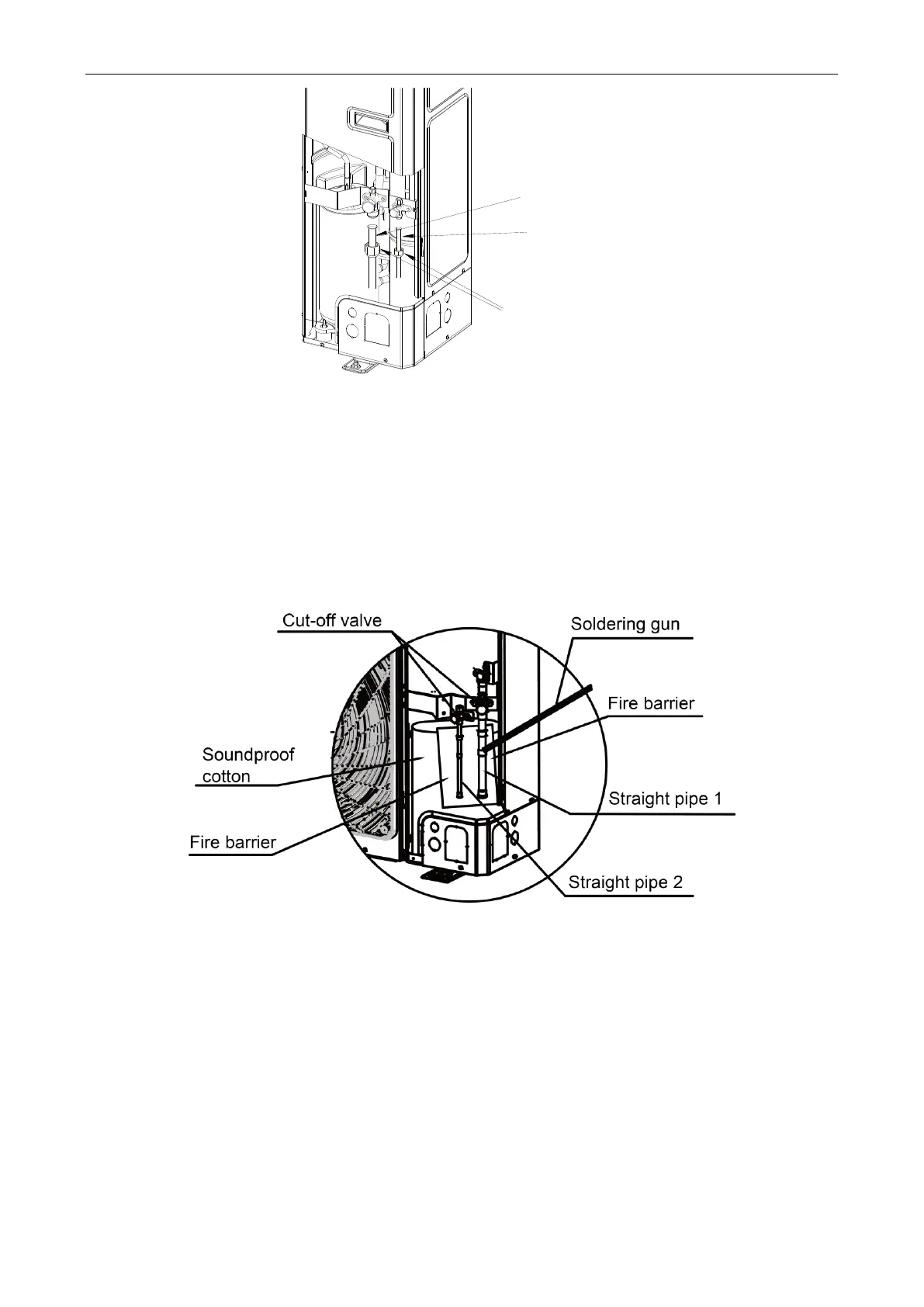

Fig. 15
(2) Pipe connection for GMV-60WL/C-T(U)
、
GMV-60WL/C-T(U)
As shown in Fig.16 and Fig.17, open the outermost soundproof cotton and place a fire barrier
between compressor and straight pipe. Use a soldering gun to unsolder straight pipe 1 and straight pipe
2. Install connection pipe 1 and connection pipe 2 to the corresponding position and then seal the
apertures with welding rod. First weld the liquid side connection pipe and then weld the gas side
connection pipe. During welding, it’s necessary to use wet gauze to wrap up the two cut-off valves. Make
sure the flame won’t burn the soundproof cotton or other components.
Fig. 16
