GMV DC Inverter VRF
31

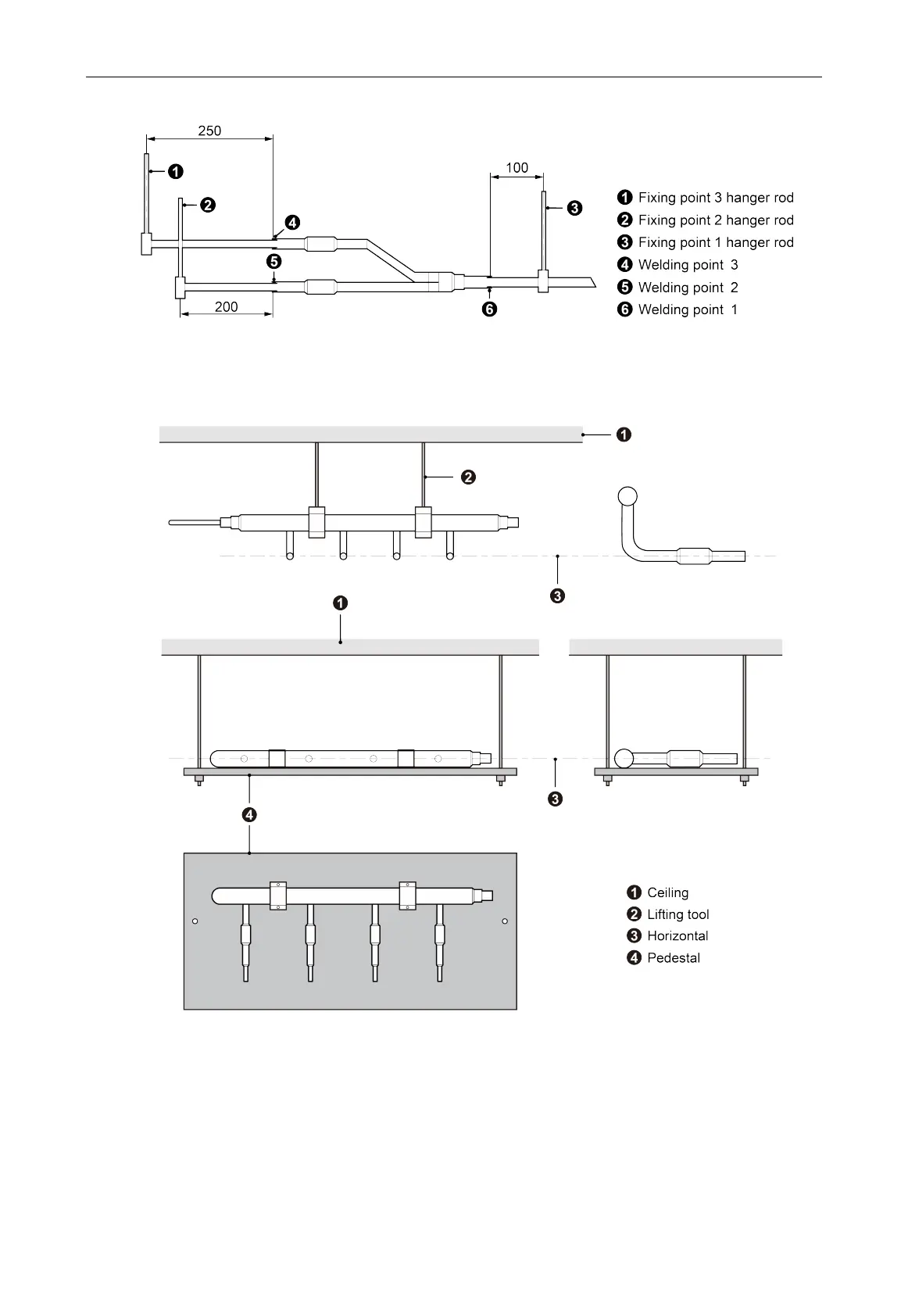

Unit: mm
Fig. 3.4.6
(2) Suspend the header to the ceiling, and be sure to install the T-type manifold so that the
outlet pipes are horizontal at the lower side.
Fig. 3.4.7
(3) The branches of the manifold should be parallel and should not be overlapped.
(4) The liquid pipe and the gas pipe should have the same pipe length and the same laying
circuit.
Since the structure of the manifold is relatively complicated, it must be rigorous and careful for
heat preservation to ensure the tight insulation.
