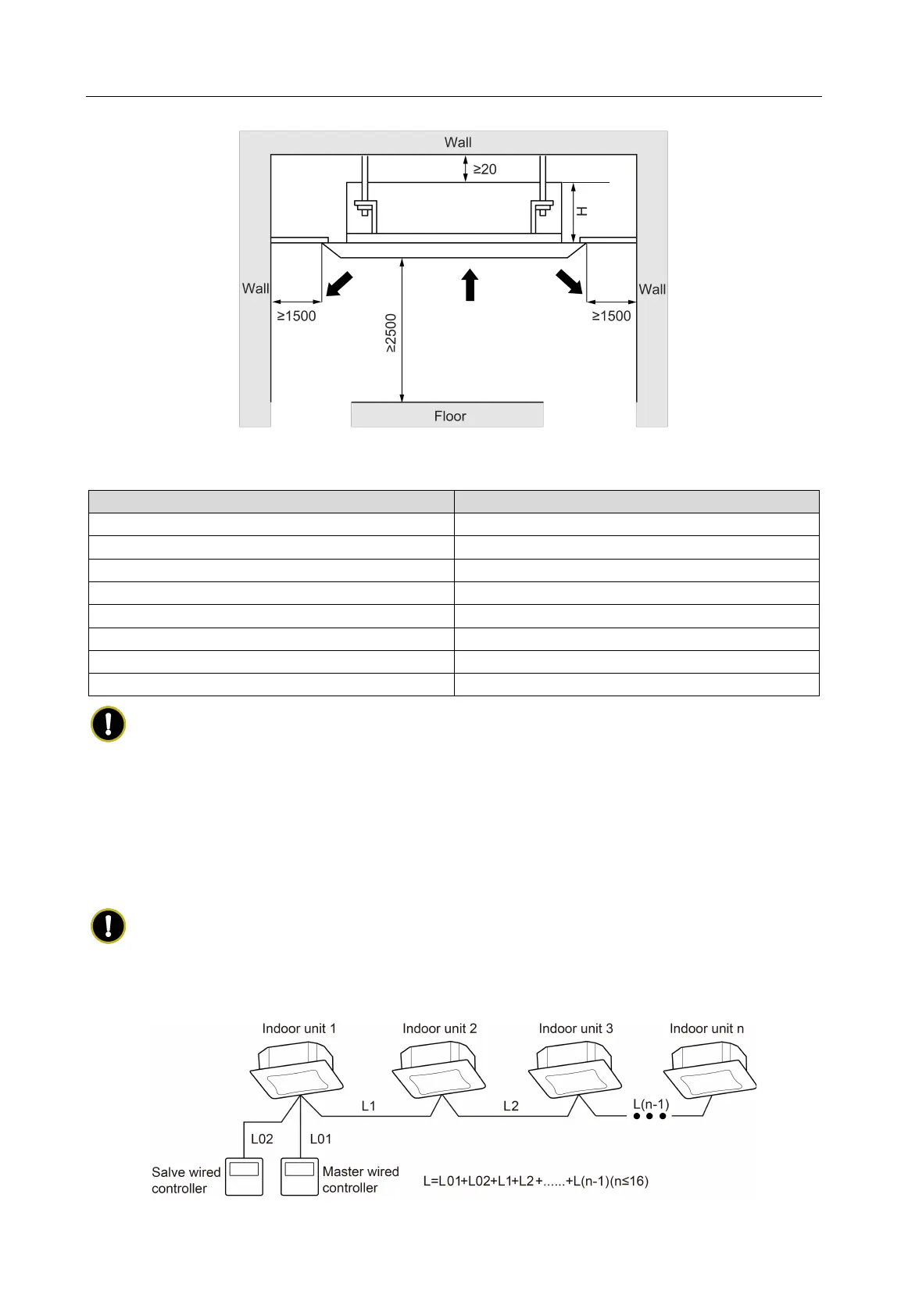

Gree GMV-ND Series

Multi Variable Air Conditioners Compact Cassette Type Indoor Unit
6
Unit:mm
Fig.3.2
Unit:mm
Model H
GMV-ND15T/E-T
305
GMV-ND18T/E-T
305
GMV-ND22T/E-T
305
GMV-ND28T/E-T
305
GMV-ND36T/E-T
305
GMV-ND45T/E-T
305
GMV-ND50T/E-T
305
GMV-ND56T/E-T
305
NOTES!
① The unit shall be installed in accordance with national standards or local regulations.
② Only qualified personnel can carry out installation work, please contact with local dealer
before installation.
③ Make sure all the installation work completed before energizing.
3.3 Requirements of Communication Wire Selection
NOTE!
If air conditioner used under strong electronic-magnetic interference circumstance, STP
(shielded twisted pair) communication cable must be adopted.
3.3.1 Select Communication Line for Indoor Unit and Wired Controller
Fig. 3.3.1
