Gree GMV-ND Series

Multi Variable Air Conditioners Compact Cassette Type Indoor Unit
8
Model Power Supply
Air Switch
Capacity (A)
Minimum
Sectional Area of
Grounding
Wire(mm
2
)
Minimum
Sectional Area of
Power Cord (mm
2
)
GMV-ND15T/E-T
220-240V-1ph-50Hz
208-230V-1ph-60Hz
6
1
1
GMV-ND18T/E-T
6
1
1
GMV-ND22T/E-T
6
1
1
GMV-ND28T/E-T
6
1
1
GMV-ND36T/E-T
6
1
1
GMV-ND45T/E-T
6
1
1
GMV-ND50T/E-T
6
1
1
GMV-ND56T/E-T
6
1
1
4 Installation Instructions
4.1 Indoor unit installation

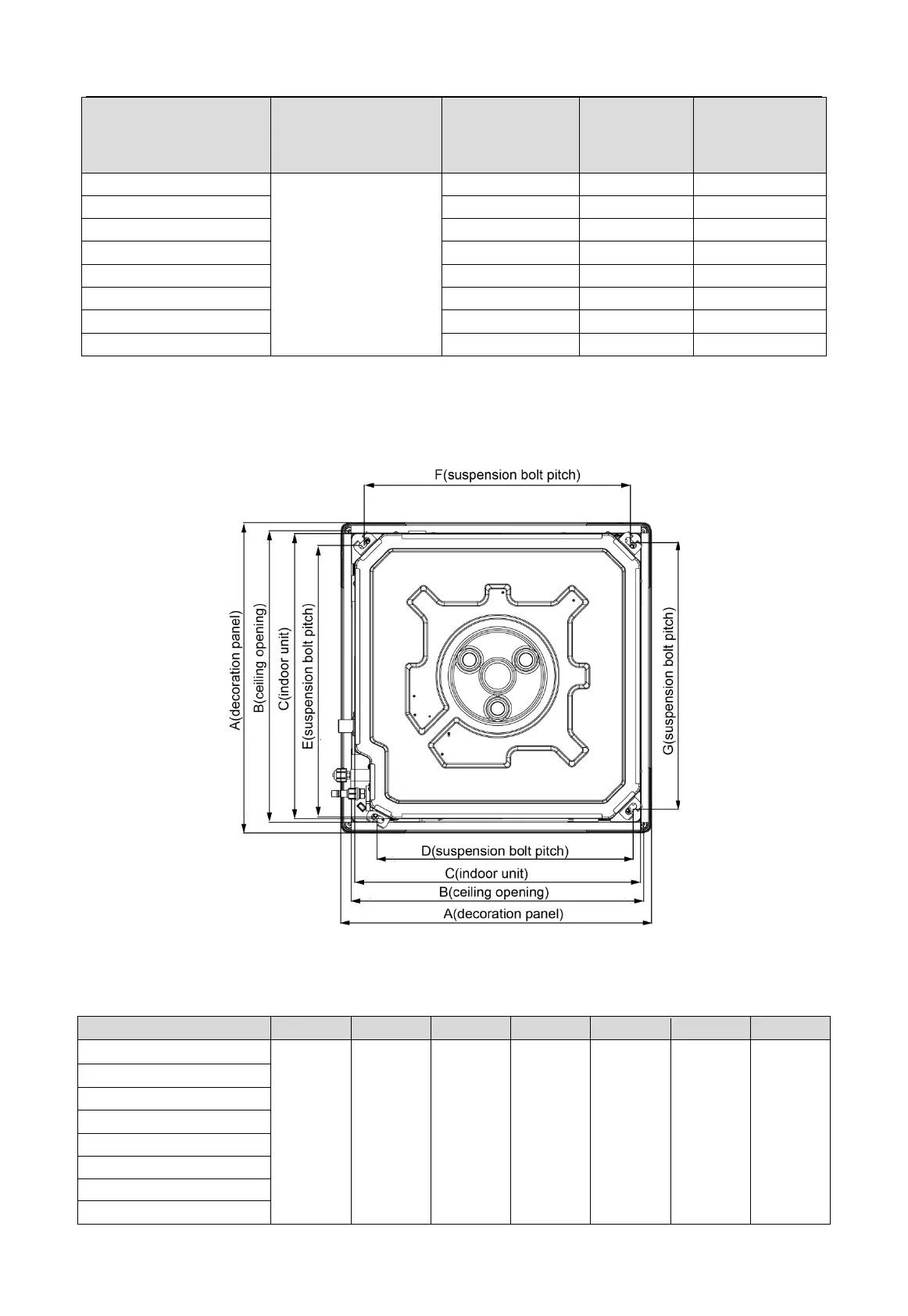

4.1.1 Indoor Unit Dimension and Suspension Bolt Position
Fig.4.1.1
Below are dimensions of A, B, C, etc. for different models:
Unit: mm
Model
A
B
C
D
E
F
G
GMV-ND15T/E-T
620 580 570 505 550 530 530
GMV-ND18T/E-T
GMV-ND22T/E-T
GMV-ND28T/E-T
GMV-ND36T/E-T
GMV-ND45T/E-T
GMV-ND50T/E-T
GMV-ND56T/E-T
