Gree GMV-ND Series

Multi Variable Air Conditioners Compact Cassette Type Indoor Unit
4
2 Product Introduction
2.1 Names of Key Components

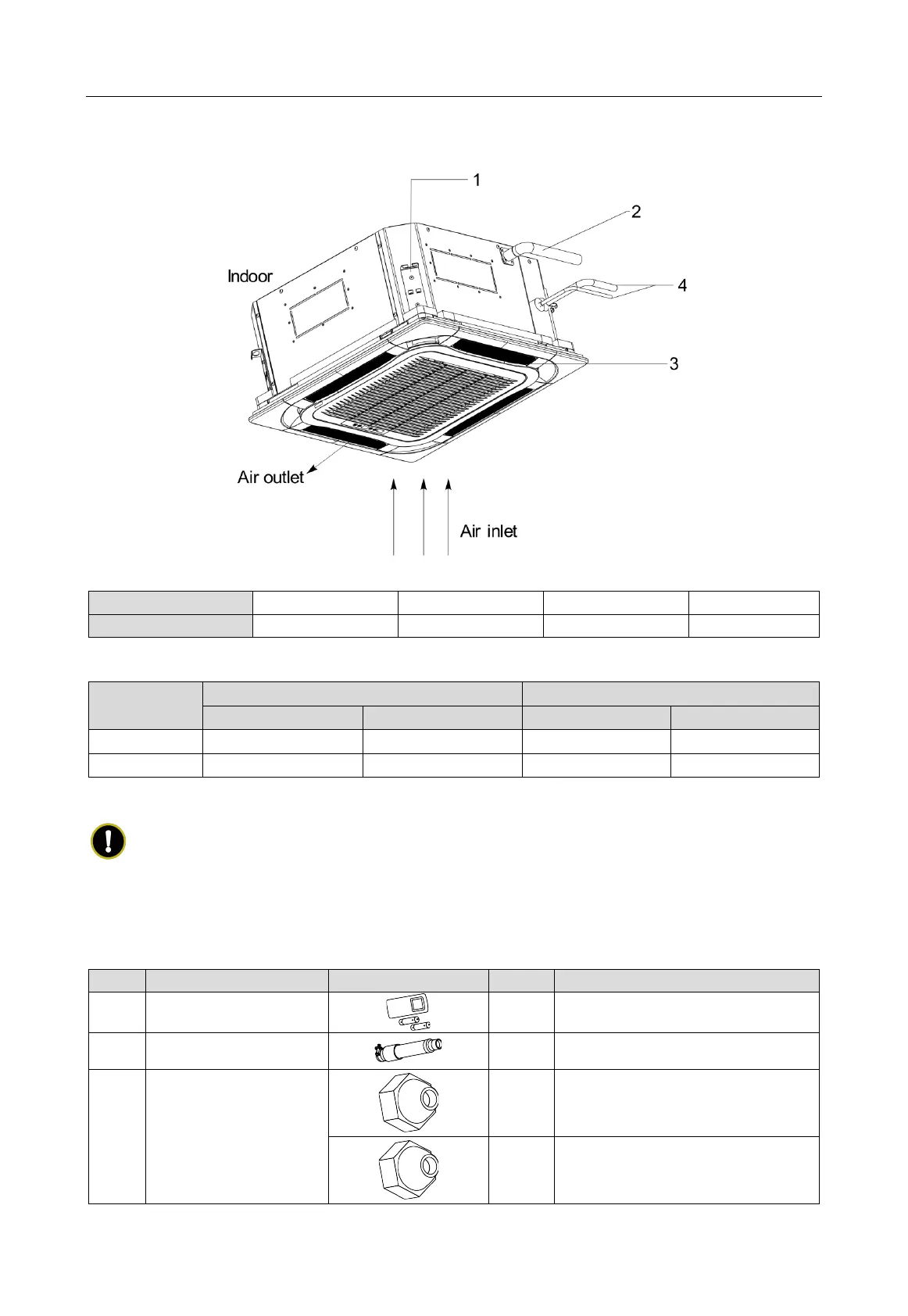

Fig.2.1
No.
1
2
3
4
Name
Drainage device
Drainage Pipe
Air flow flap
Connection Pipe
2.2 Rated Working Condition
—
Indoor Side Condition
Outdoor Side Condition
Dry Bulb Temp °C
Wet Bulb Temp °C
Dry Bulb Temp °C
Wet Bulb Temp °C
Rated Cooling
27
19
35
24
Rated Heating
20
15
7
6
3 Preparations for Installation
NOTE!
This picture is for reference only, please refer to the actual product; the unit of dimension
is mm.
3.1 Standard Fittings
Please use the supplied standard fittings listed below as instructed.
No.
Name
Appearance
Q'ty
Usage
1 Remote controller 1+2 To control the indoor unit.
2 Drainage hose assembly 1 To connect the drainage pipe.
3 Special Nut
2 GMV-ND15-50T/E-T
1 GMV-ND56T/E-T
