Multi Variable Air Conditioners Ducted Type Indoor Unit
11
(8) When the drainage pipelines are used for several units, the position of pipeline should be
about 100mm (4inch) lower than the drainage port of each unit. In this case, thicker pipes
should be applied.
Fig.4.3.1

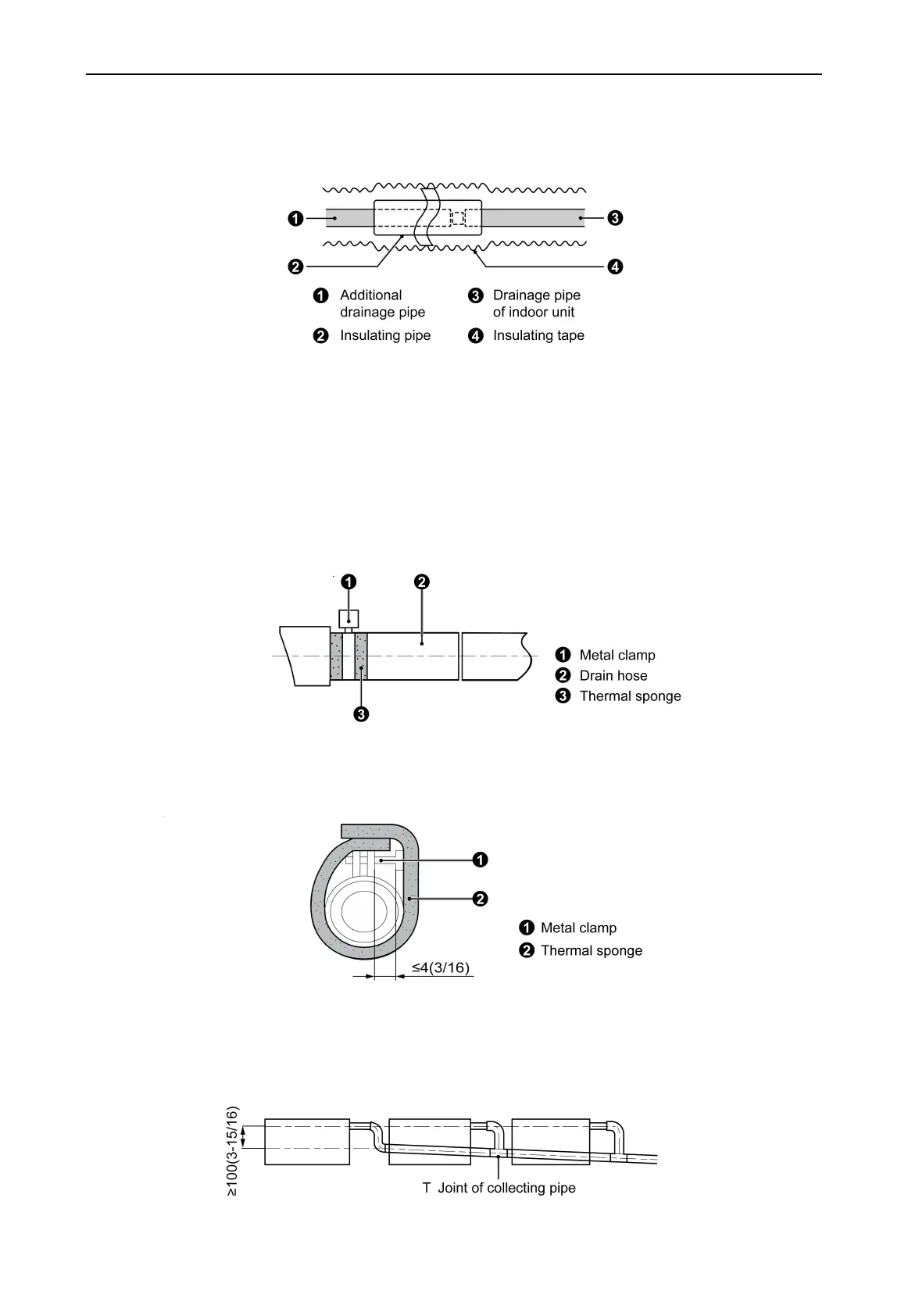

4.3.2 Drainage pipe installation
(1) Insert the drain hose into the drain hole and tighten it with tapes, as shown in Fig.4.3.2.
Model with water pump will be provided with drain hose, while other models please prepare
the drain hose by yourself.
(2) Tighten the pipe clamp, with the distance between screw nut and hose smaller than 4mm
(3/16inch).
Fig.4.3.2
(3) Use sealing plate to make the pipe clamp and hose insulated, as shown in Fig.4.3.3.
Unit: mm (inch)
Fig.4.3.3
(4) When connecting several drain pipes, follow the instruction as indicated in Fig.4.3.4. Choose
the drain collecting pipe that matches with unit capacity.
Unit: mm (inch)
Fig.4.3.4
To Next Page
