Multi Variable Air Conditioners Ducted Type Indoor Unit
21

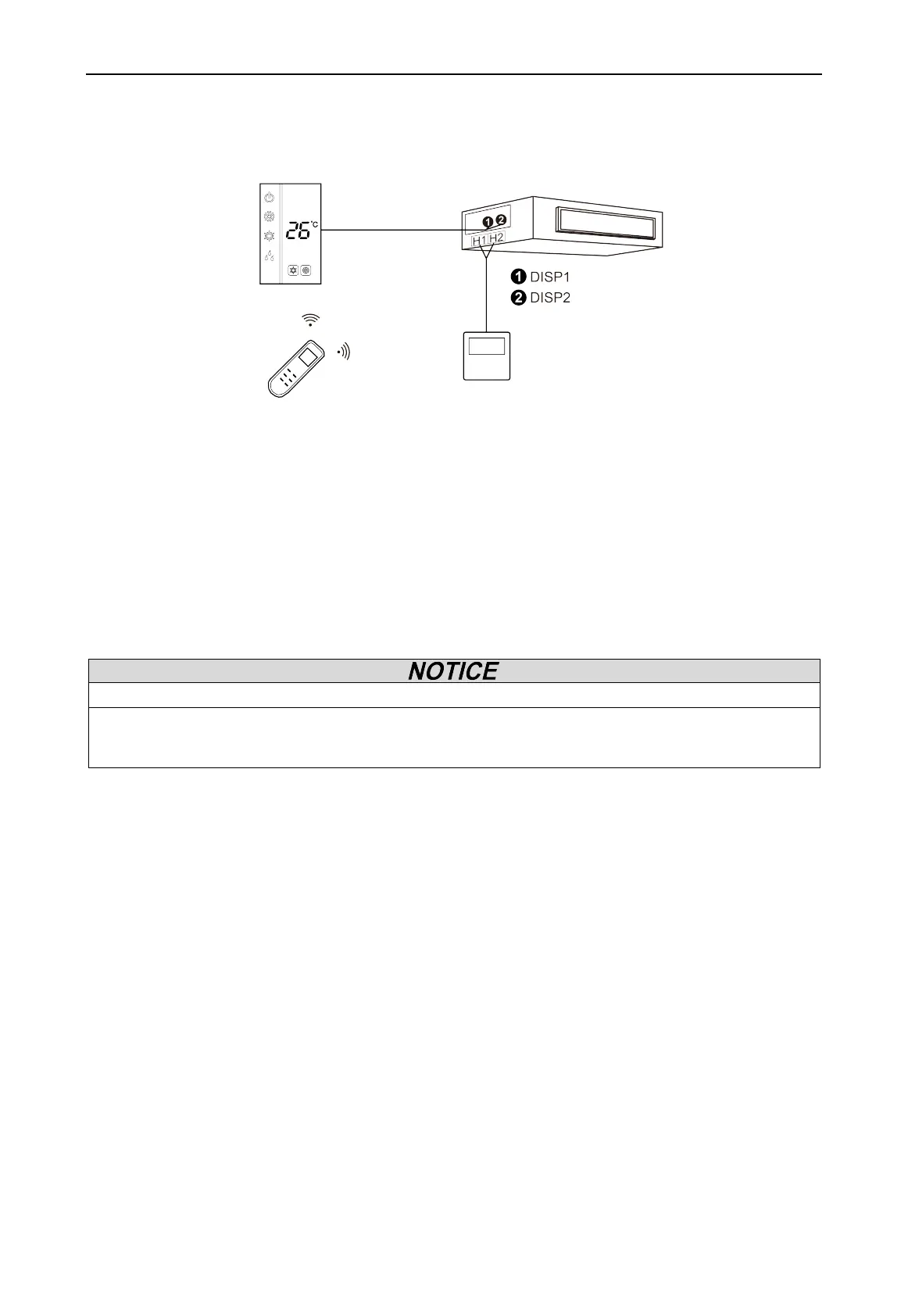

3) Wired controller and receiving light board can be installed at the same time. When
operating through a remote controller, both wired controller and the receiving light board
can receive the signals, as shown in Fig.5.4.3.
Fig.5.4.3
5.5 Illuminate for Connection of Wired Controller and Indoor Units Network
(1) Communication wire of indoor unit and outdoor unit (or indoor unit) is connected to D1, D2.
(2) Wired controller is connected to H1, H2.
(3) One indoor unit can connect two wired controllers that must be set as master one and slave
one.
(4) One wired controller can control 16 indoor units in maximum at the same time. (as shown in
Fig.5.5.1)
(1) The type of indoor units must be the same if they are controlled by the same wired controller.
(2) When the indoor unit is controlled by two wired controllers, the addresses of the two wired controllers should be
different through address setting. Address 1 is for main controller; Address 2 is for slave controller. Detailed
setting please refer to the instruction manual of wired controller.
