Multi VRF Floor Standing Indoor Unit
11
any leakage (As shown in Fig 4.5).
(5) It is not allowed to connect the condensate drain pipe into waste pipe
or other pipelines which are likely to produce corrosive or peculiar
smell to prevent the smell from entering indoors or corrupt the unit.
(6) It is not allowed to connect the condensate drain pipe into rain pipe to
prevent rain water from pouring in and cause property loss or personal
injury.
(7) Condensate drain pipe should be connected into special drain system
for air conditioner.
4.5 Installation the Connection Pipe
Before wiring and piping, please remove the filter after opening the glass
panel.
(1) As shown in Fig 4.2, take out the decorative strip at position 1 and then
unscrew the screws. Removethe screws fixing the filter after opening
the glass panel. At last take out the filter along the arrow direction at
position Fig 4.3.
(2) During piping and wiring in the left and at the rear side, the attached
accessories should be used, as shown in Fig 4.4.

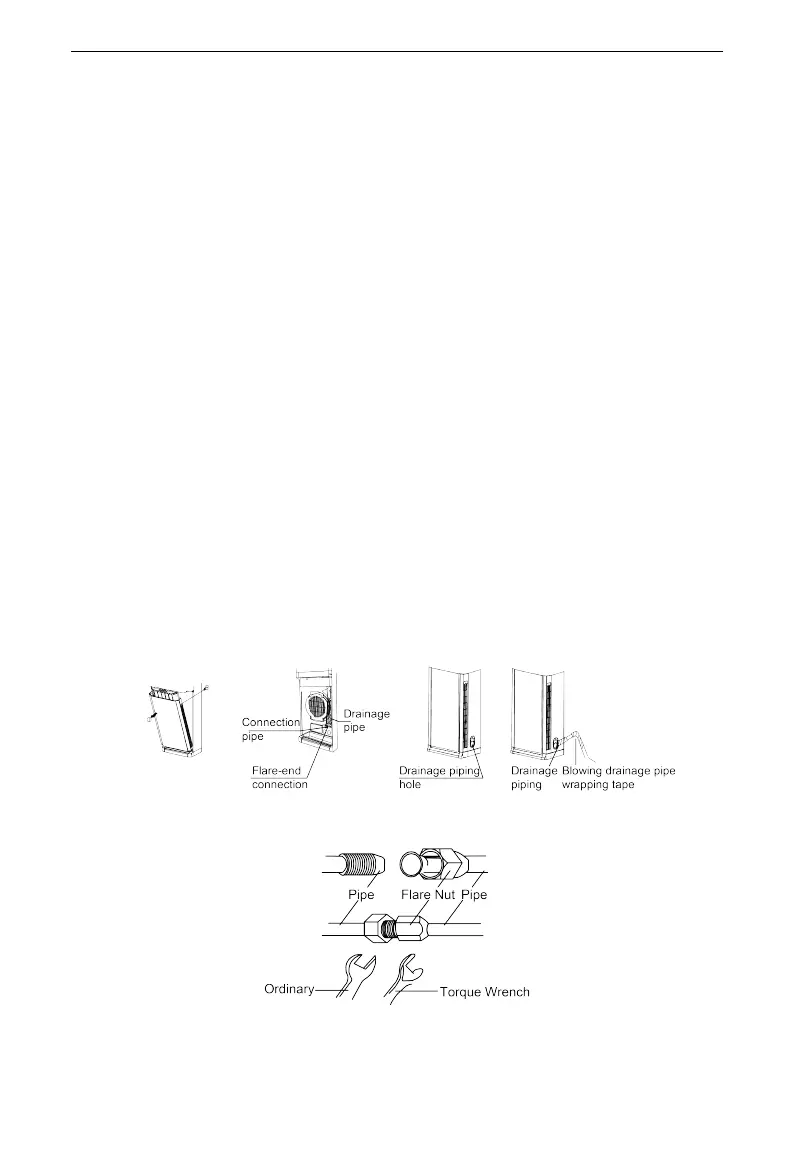

Fig 4.2 Fig 4.3 Fig 4.4 Fig 4.5
Fig 4.6
