Gree GMV-ND22C/A-T Service Manual

GREE GMV5 INDOOR UNIT SERVICE MANUAL
22

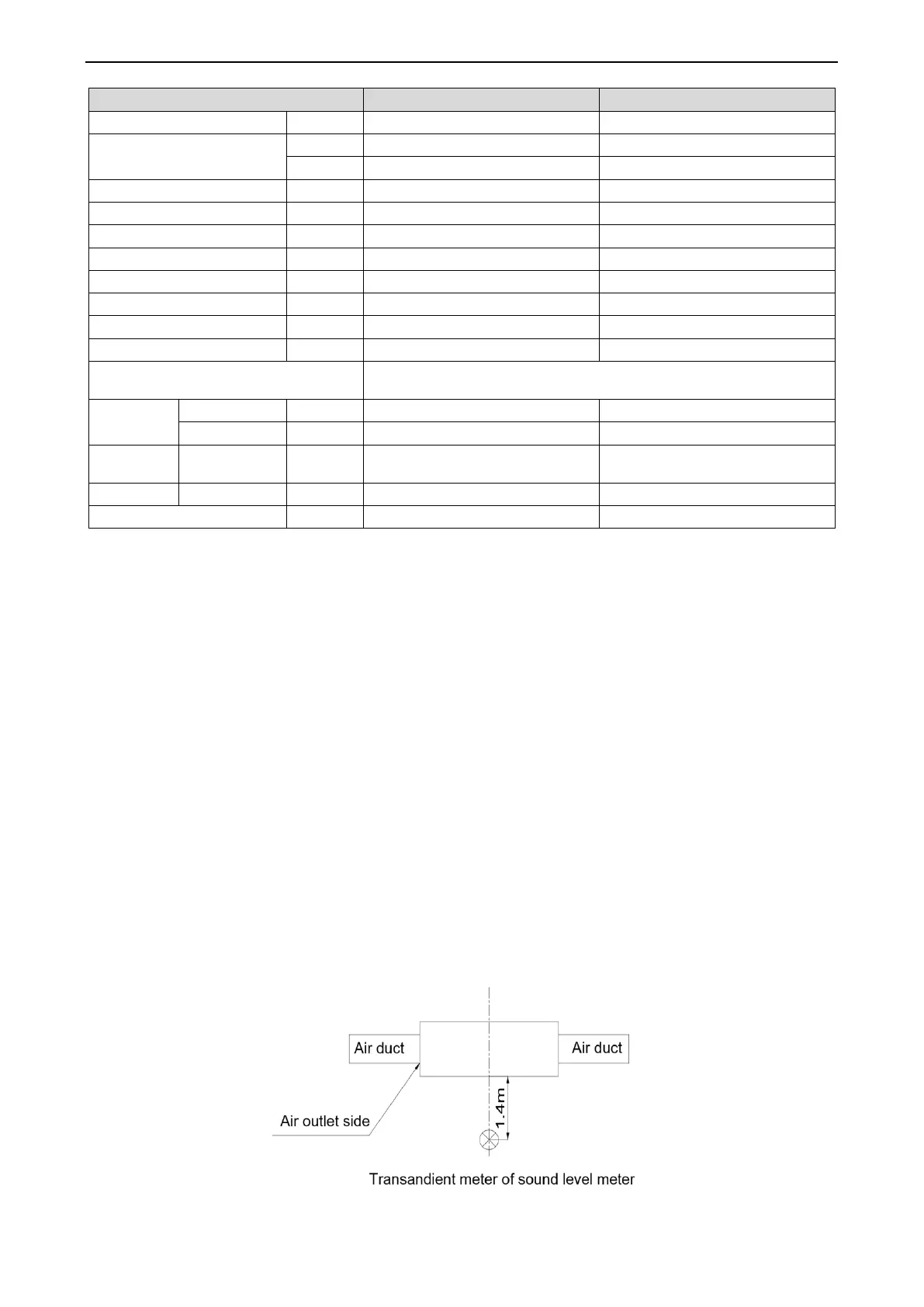

Model
GMV-NDX250P/A-T
GMV-NDX280P/A-T
Air volume
m
3
/h
2500/2000~3500
2500/2000~3500
Static pressure (Pa)
Standard
200
200
Optional
50~300
50~300
Rated power input
W
860
860
Rated current input
A
4.9
4.9
Cooling power input
W
520
520
Cooling current input
A
3.1
3.1
Heating power input
W
520
520
Heating current input
A
3.1
3.1
Maximum fuse current
A
10
10
Sound pressure level
dB(A)
47~54
47~54
Power supply
220-240V 1 phase ~50Hz
208-230V 1 phase ~60Hz
Piping
diameter
Liquid pie
mm
Φ9.52
Φ9.52
Gas pipe
mm
Φ22.2
Φ22.2
Drain pipe
Outer diameter
×Wall thickness
mm
Φ25×2
Φ25×2
Dimensions
W×D×H
mm
1483×791×385
1483×791×385
Net weight
kg
82
82
Note:
① Rated cooling capacity test conditions: indoor 35°C DB/28°C WB, outdoor 35°C DB; connection
pipe length: 7.5m, without height drop between units. The default air outlet temperature of the
unit is 18°C.
② Rated heating capacity test conditions: *1: indoor 7°C DB, outdoor 7°C DB/6 °C WB, *2: indoor
0°C DB, outdoor 0°C DB/RH80%; connection pipe length: 7.5m, without height drop between
units. The default air outlet temperature of the unit is 22°C.
③ In the column of “Air Volume”: The figure before “/” indicates the default air Volume of unit before
delivery, and the figures after indicate the adjustable air Volume range of unit.
④ The noise value marked in the nameplate is tested under rated condition. For the uints of GMV-
NDX125P/A-T and GMV-NDX140P/A-T, which are defaulted as speed 08 under static pressure
of 150Pa. And others are defaulted as speed 08 under static pressure of 200Pa.The noise in
the highest speed may increase by about 3 dB(A) on this value. The noise in the lowest speed
may decrease by about 5 dB(A) on this value. The recorded noise value of the sample unit is
tested in semi-anechoic room. Under actual installation, the noise value is usually higher than
the recorded value of the sample due to the influence of ambient noise and reflected sound.
