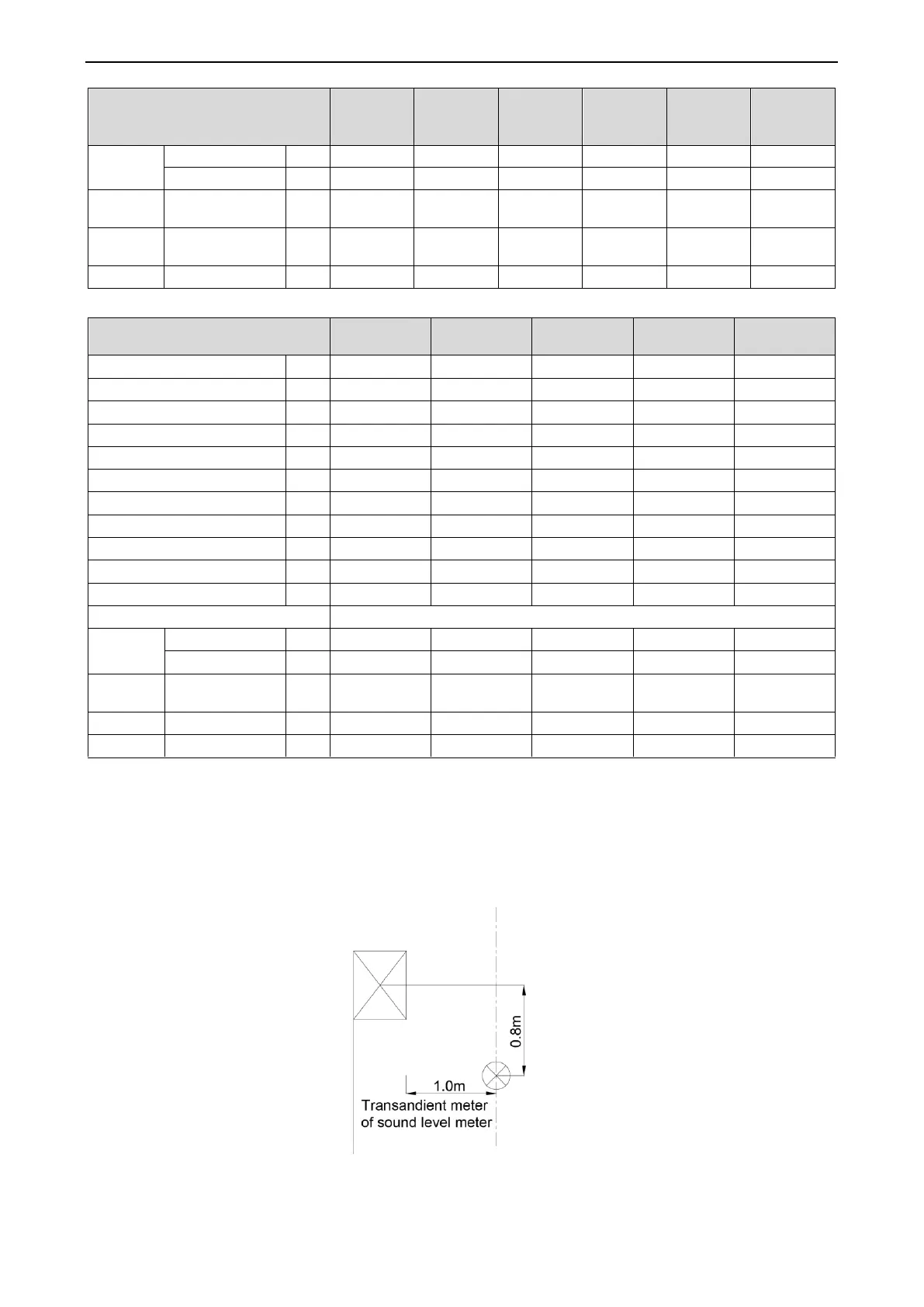

GREE GMV5 INDOOR UNIT SERVICE MANUAL
40
Model
GMV-
ND22G/A8A-
T
GMV-
ND28G/A8A-
T
GMV-
ND36G/A8A-
T
GMV-
ND45G/A8A-
T
GMV-
ND50G/A8A-
T
GMV-
ND56G/A8A-
T
Piping
interface
Liquid pipe
mm
Φ6.35
Φ6.35
Φ6.35
Φ6.35
Φ6.35
Φ9.52
Gas pipe
mm
Φ9.52
Φ9.52
Φ12.7
Φ12.7
Φ12.7
Φ15.9
Drain pipe
External diameter
× thickness
mm
Φ20×1.5
Φ20×1.5
Φ20×1.5
Φ20×1.5
Φ20×1.5
Φ30×1.5
Dimensions
W×D×H
mm
843×180
×275
843×180
×275
940×200
×298
940×200
×298
940×200
×298
1008×221
×319
Net weight
Main body
kg
10.0
10.0
12.5
12.5
12.5
15.0
Model
GMV-
ND63G/A8A-T
GMV-
ND71G/A8A-T
GMV-
ND80G/A8A-T
GMV-
ND90G/A8A-T
GMV-
ND100G/A8A-T
Horse Power
HP
3
3
4
4
4
Cooling capacity
kW
6.3
7.1
8.0
9.0
9.5
Heating capacity
kW
7.0
7.5
9.0
10.0
10.5
Air volume
m
3
/h
750
750
1550
1550
1650
Cooling power input
W
40
40
80
80
100
Cooling current input
A
0.17
0.17
0.41
0.41
0.41
Heating power input
W
40
40
80
80
100
Heating current input
A
0.17
0.17
0.41
0.41
0.41
*Minimum line current
A
0.2
0.2
0.2
0.2
0.2
*Maximum fuse current
A
6
6
6
6
6
Sound pressure level
dB(A)
44
44
49
49
52
Power supply
220-240V 1 phase ~50Hz/208-230V 1 phase ~60Hz
Piping
interface
Liquid pipe
mm
Φ9.52
Φ9.52
Φ9.52
Φ9.52
Φ9.52
Gas pipe
mm
Φ15.9
Φ15.9
Φ15.9
Φ15.9
Φ15.9
Drain pipe
External diameter
×thickness
mm
Φ30×1.5
Φ30×1.5
Φ30×1.5
Φ30×1.5
Φ30×1.5
Dimensions
W×D×H
mm
1008×221×319
1008×221×319
1350×258×326
1350×258×326
1350×258×326
Net weight
Main body
kg
15.0
15.0
18.5
18.5
18.5
Notes:
① Rated Cooling capacity test conditions: indoor 27°C DB/19°C WB, outdoor 35°C DB; connection
pipe length: 5 m, without height drop between units.
② Rated heating capacity test conditions: indoor 20°C DB, outdoor 7°C DB/6 °C WB; connection
pipe length: 5 m, without height drop between units.
