GREE GMV5 INDOOR UNIT SERVICE MANUAL
50
2.2.2 Installation method

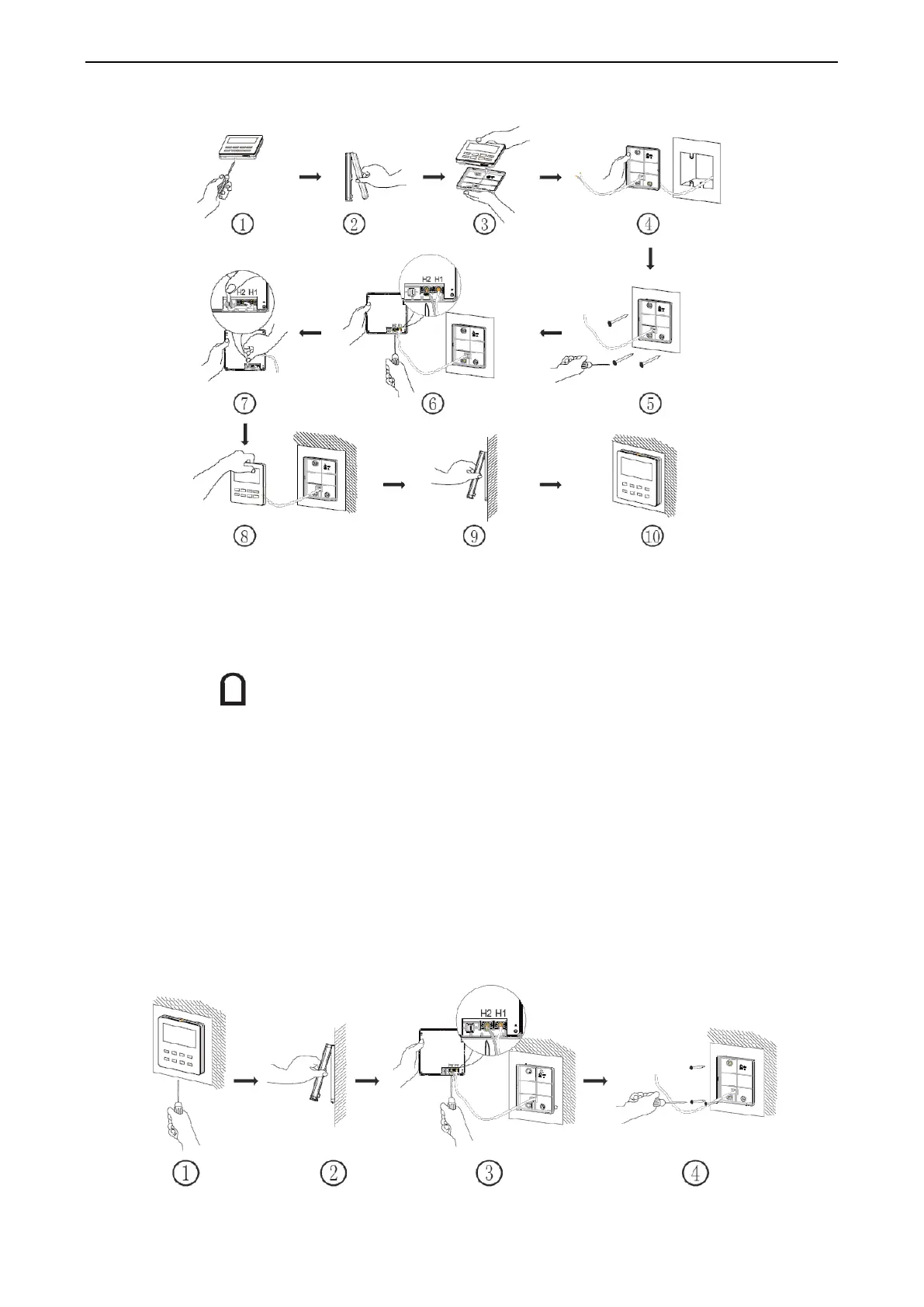

Fig.2.5 Installation of Wired Controller
Above is a simple installation method of wired controller. Please pay attention to the following:
 Before installation, disconnect power of the indoor unit. Do not operate when power is connected.
 Pull out the 2-core twisted pair cable from the installation hole on the wall and lead it through
the hole on the back plate of wired controller.
 Place the wired controller on wall and secure its back plate on wall with screw M4X25.
 Connect the 2-core twisted pair cable to terminal H1 and terminal H2. Tighten up the screws.
 Stick the cable in the slot that is left of the terminals and buckle the wired controller’s panel with
its back plate.
Note:
If caliber of the communication cord is too large, which causes difficulty in leading or sticking the cord
according to above point 2 and point 5, strip some of the sheath of the communication cable to meet the
installation requirement.
2.2.3 Removal method
Fig.2.6 Removal of Wired Controller
