Gree GMV-ND28TD/A-T - Console Type Indoor Unit

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
206
NO.
Model
GMV-NX224P/A(X2.0)-M
Qty.
Product Code
CM800N3620
Part Name
Part Code
14
Filter Sub-Assy
` 1172220201
1
15
Motor for Centrifugal Fan
` 1570220201
1
16
Fan Motor
` 15702245
1
17
Right Side Plate Sub-Assy
` 01312200017
1
18
Rear Side Plate Sub-Assy
` 01312200019
1
19
Blower Mounting Plate
` 01322200006
1
20
Electric cabinet board
` 01394100524
1
21
Capacitor CBB65
' 33000074
1
22
Terminal Board
` 4201115404
1
23
Main Board
` 30226000004
1
24
Terminal Board
' 4201800002601
1
25
Top Cover Plate Sub-Assy
` 01262200013
1
26
Left Side Plate Sub-Assy
` 01312200015
1
27
Sensor Sub-assy
` 39008000103G
1
28
Display Board
` 30296000040
1
Above data is subject to change without notice,pls reference the SP in global service website.

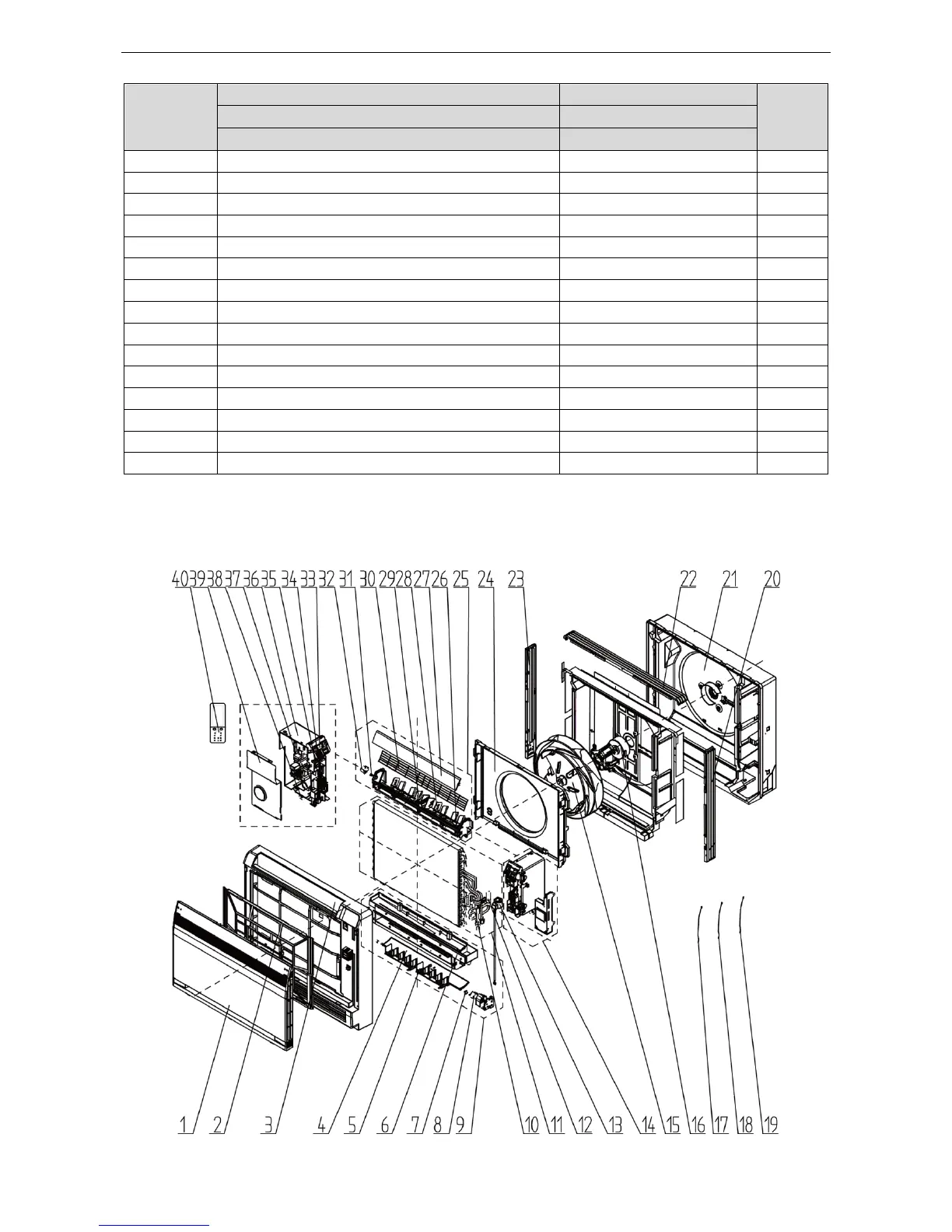

5.12 Console Type Indoor Unit
Exploded View of GMV-ND22C/A-T、GMV-ND28C/A-T、GMV-ND36C/A-T、GMV-ND45C/A-T、GMV-ND50C/A-T
