Gree GMV-ND28TD/A-T - Installation of Low Static Pressure Duct Type Unit

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
80
Model
Power Cord Size
Air Switch
apacity
(A)
Minimum Sectional
Area of
Ground Wire
(mm
2
/AWG)
Minimum Sectional
Area of Power
Cord
(mm
2
/AWG)
GMV-ND100PHS/A-T
220~240V/50Hz
208~230V/60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND112PHS/A-T
220~240V/50Hz
208~230V/60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND125PHS/A-T
220~240V/50Hz
208~230V/60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND140PHS/A-T
220~240V/50Hz
208~230V/60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND160PHS/A-T
220~240V/50Hz
208~230V/60Hz
6
1.0/AWG18
1.0/AWG18
GMV-ND224PH/A-T
220~240V/50Hz
208~230V/60Hz
10
1.0/AWG18
1.0/AWG18
GMV-ND280PH/A-T
220~240V/50Hz
208~230V/60Hz
16
1.0/AWG18
1.0/AWG18

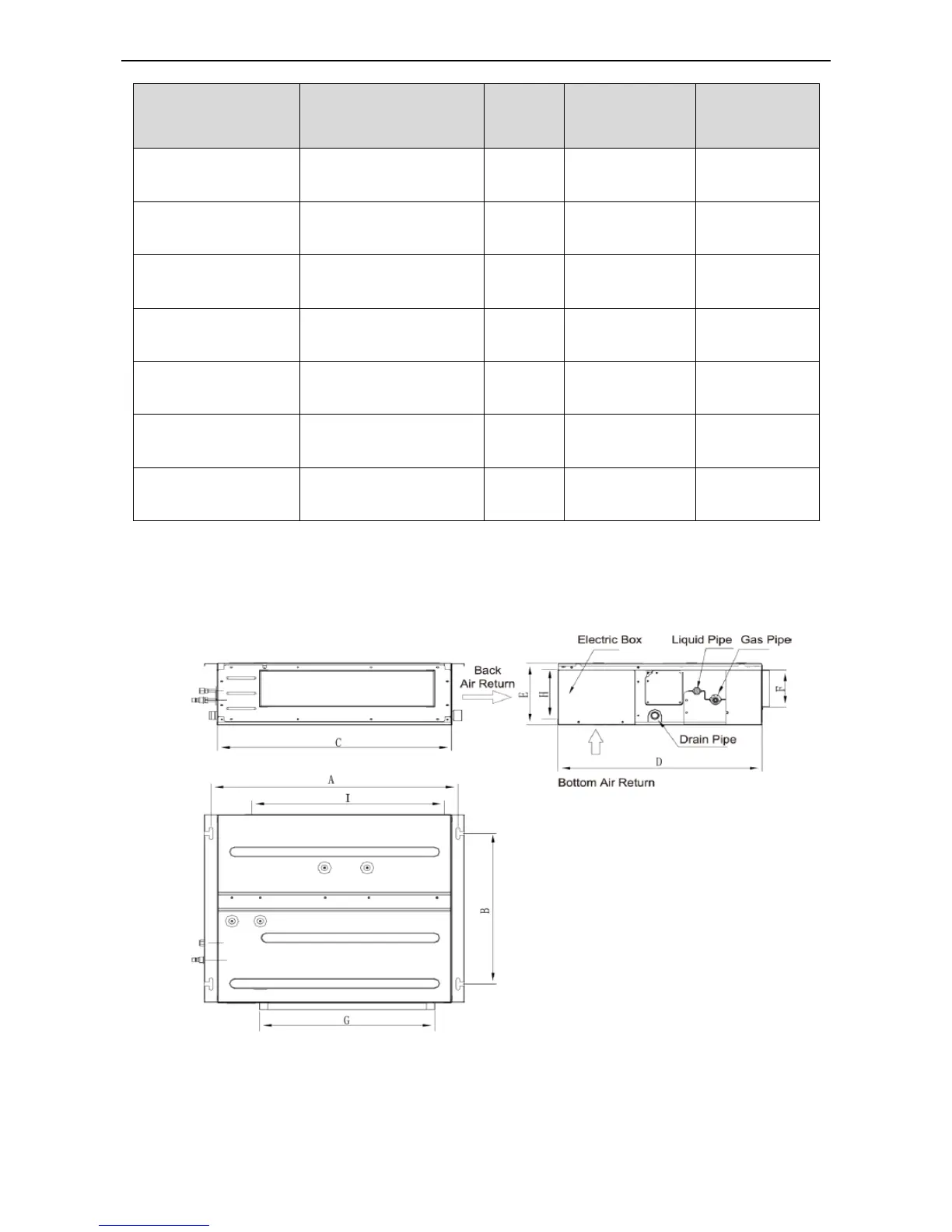

3.3 Installation of Low Static Pressure Duct Type unit
3.3.1 Outline and installation dimension
Model：GMV-ND22PLS/A-T~GMV-ND63PLS/A-T.
