Gree GMV-ND28TD/A-T - Low Static Pressure Duct Type

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
161
5.3 Low Static Pressure Duct Type

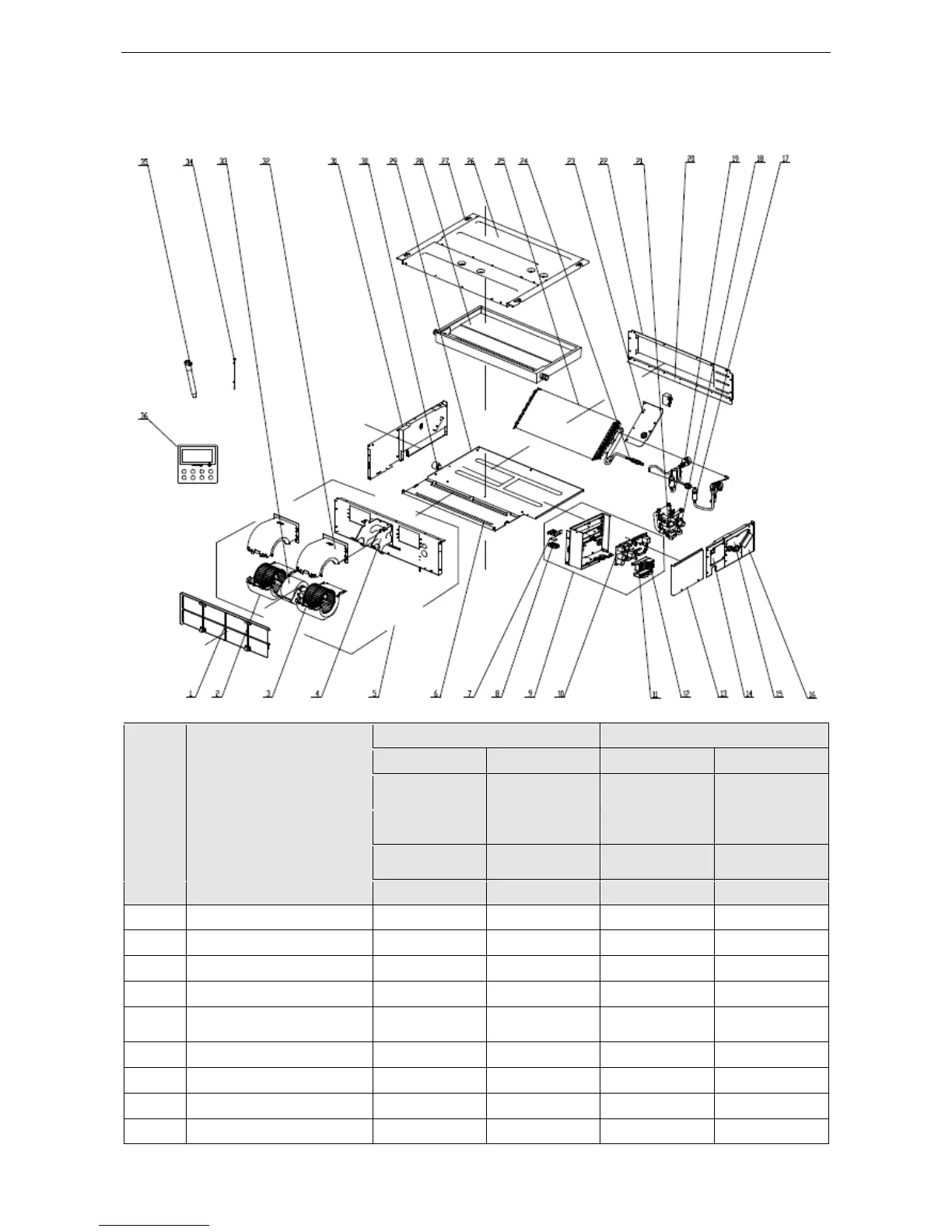

Exploded View of GMV-ND22PLS/A-T、GMV-ND25PLS/A-T、GMV-ND28PLS/A-T、GMV-ND32PLS/A-
T GMV-ND36PLS/A-T：
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-
ND22PLS/A-T
CM800N3370
GMV-
ND32PLS/A-T
CM800N3390
GMV-
ND25PLS/A-T
CM800N3380
GMV-
ND36PLS/A-T
CM800N3500
GMV-
ND28PLS/A-T
CM800N3490
/
/
Part code
Quantity
Part code
Quantity
1
Filter Sub-Assy
'11725209
1
'11725209
1
2
Rear Volute Casing
'26905206
2
'26905206
2
3
Centrifugal Fan
'10425200
2
'10425200
2
4
Supporter
'01804100140
1
'01804100140
1
5
Blower Mounting Plate Sub-
Assy
'01324100038
1
'01324100038
1
6
Cover Board (Fan Motor)
'01265300
1
'01265300
1
7
Humidity Sensor
0
0
0
0
8
Humidity Sensor Cover
0
0
0
0
9
Electric Box Assy
'01394100204
1
'01394100204
1
