4.11 Console Type Indoor Unit
Note: The following steps are specific for GMV-ND22C/A-T units. For other units, the assembly and
disassembly procedure is similar except the numbers of louvers and motors.
Removal of Fan Motor
Remark: before removing, making sure power is disconnected.
Step

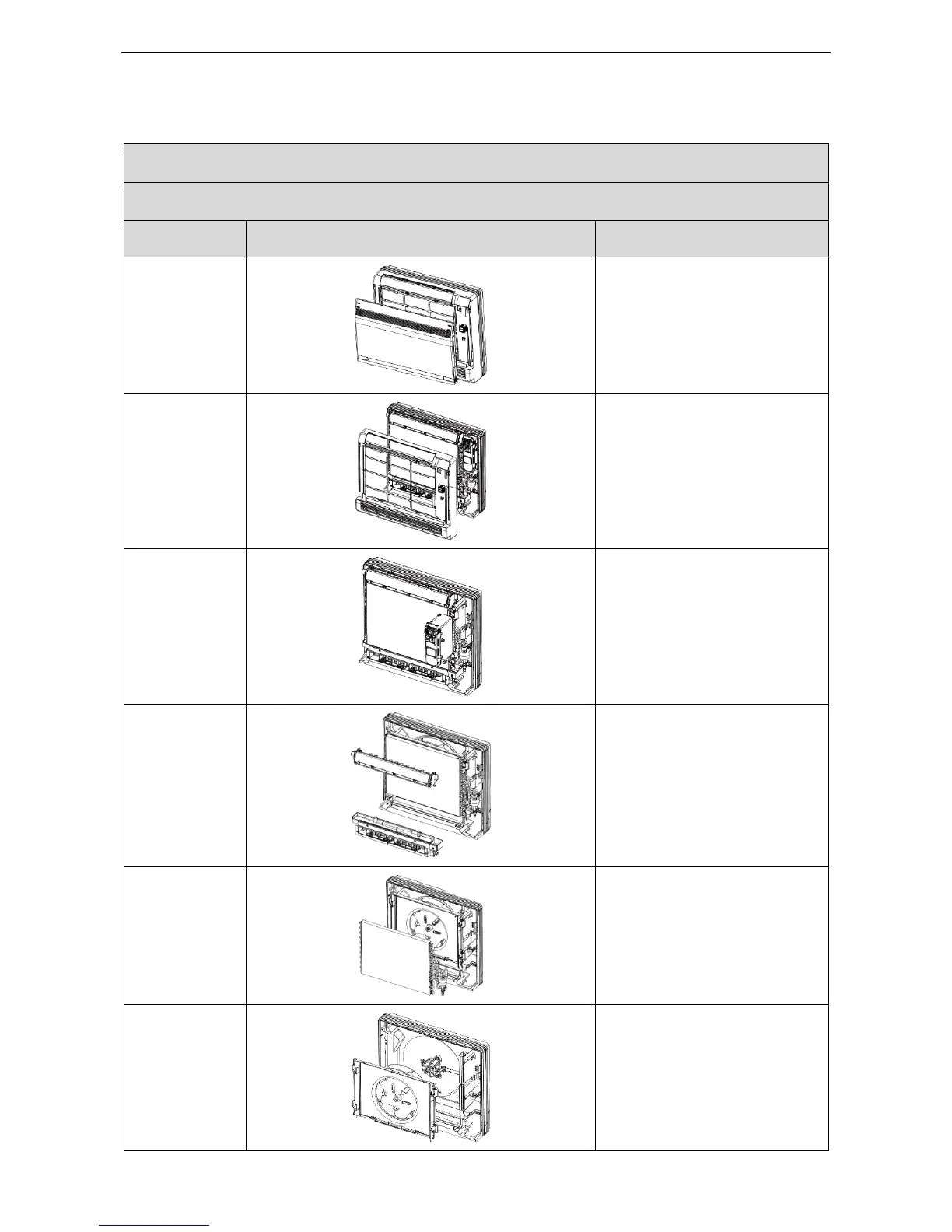

Diagram
Operation Procedure
1．Open the
panel
●Press clasps at both sides to
“OPEN” position.
2．Remove filter
and front case
●Remove 5 screws fixing the front
case.
3. Remove
electric box
●Open electric box cover, loosen all
connection wires and then remove
screws.
4. Remove water
tray and swing
motor
●Remove 2 screws fixing water tray
and swing motor respectively.
5. Remove
evaporator
●Remove the fixer fixing the
evaporator, press 2 clasps at left
side and then remove the
evaporator.
6. Remove
reversion loop
and centrifugal
blade
●Remove 4 screws fixing the
reversion loop and then remove the
reversion loop’ remove nuts on blade
and then remove the centrifugal
blade.
